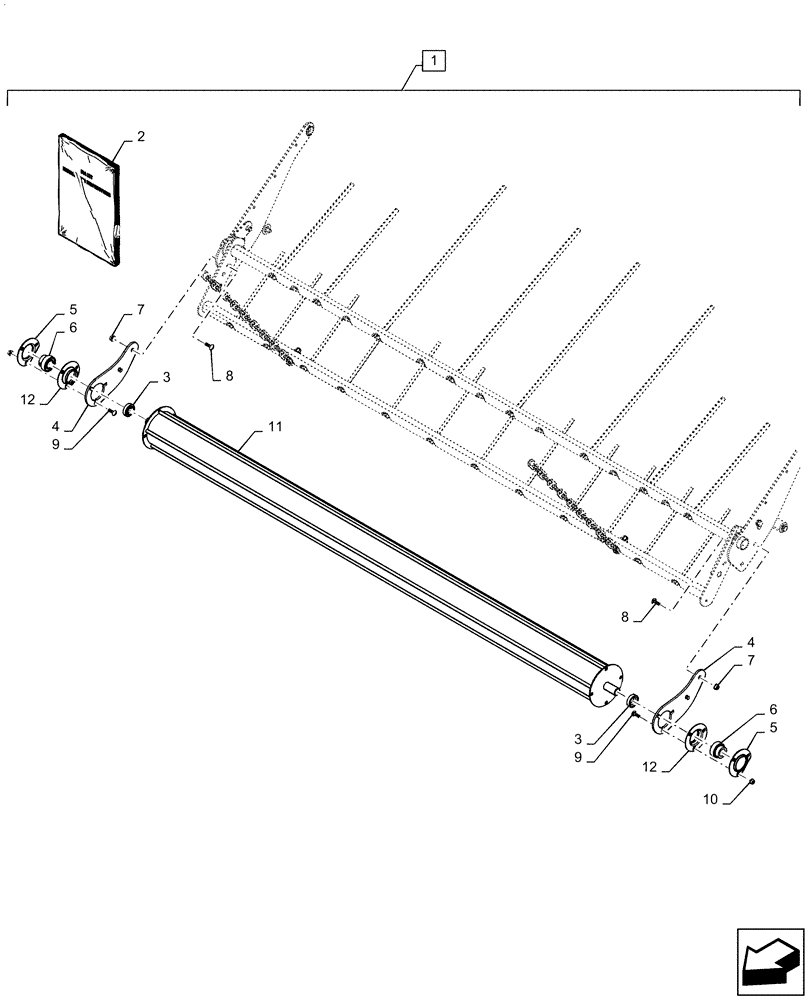

Запчасти Case IH RB455 (88.100.60[03]) - DIA KIT, ROLLER WINDGUARD, 1.8M (88) - ACCESSORIES

1

84554685

DIA KIT, HARVESTER

1.8M Roller Windguard, Incl 2 - 12

1шт.

2

84555289

INSTRUCTION

1шт.

3

47507709

SPACER,24.88mm ID x 41mm OD x 13mm Thk

2шт.

4

84426074

ARM

2шт.

5

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

2шт.

6

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

7

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

8

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

9

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

6шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

11

84488987

ROLLER

1шт.

12

47505113

BEARING HOUSING

2шт.
