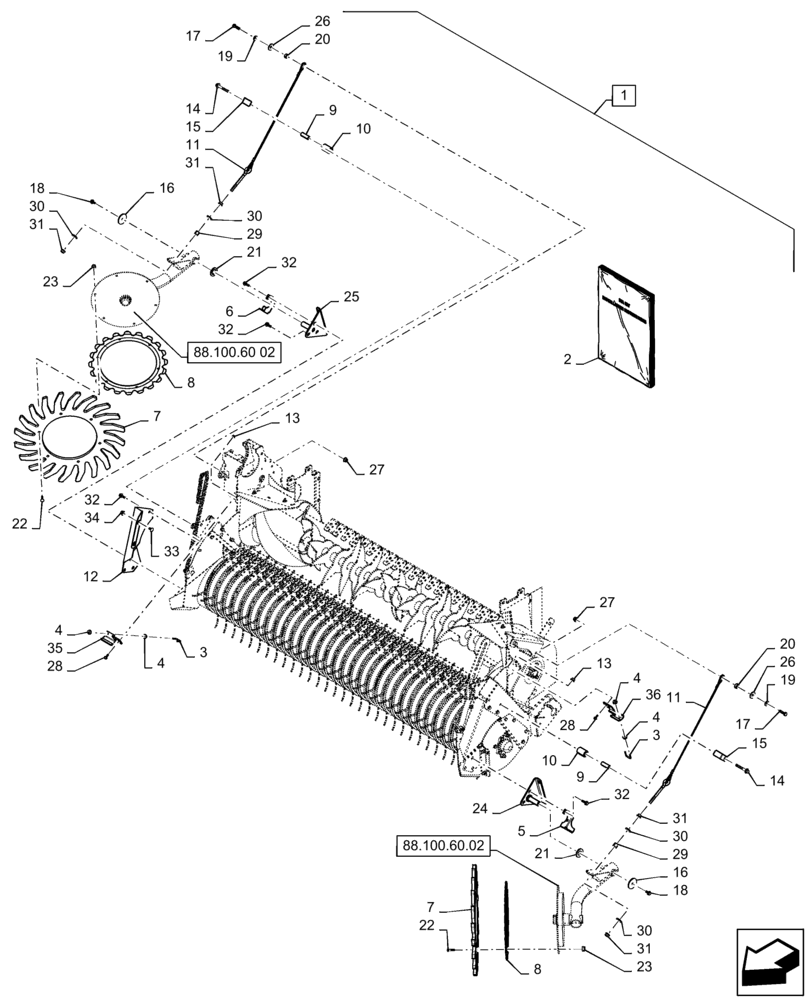

Запчасти Case IH RB455 (88.100.60[01]) - VAR - 717760 - DIA KIT, GATHERING WHEEL, OVERSHOT FEEDER BALERS (88) - ACCESSORIES

1

84481656

DIA KIT, HARVESTER

Crop Saver Wheel, Incl 2 - 32

1шт.

2

84394605

INSTRUCTION

1шт.

3

47424119

U-BOLT

2шт.

Used on Overshot Rotor Pickup. Not Required on Standard Pickup.

1шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

8шт.

Used on Overshot Rotor Pickup. Not Required on Standard Pickup.

1шт.

5

84545219

SUPPORT

LH

1шт.

6

84545221

SUPPORT

RH

1шт.

7

84296069

WHEEL

2шт.

8

84269073

RING

2шт.

9

84544857

SPACER

2шт.

Used on Overshot Rotor Pickup. Not Required on Standard Pickup.

1шт.

10

84544856

ROLLER

2шт.

Used on Overshot Rotor Pickup. Not Required on Standard Pickup.

1шт.

11

84528273

CABLE

2шт.

12

84353332

MOUNT

RH

1шт.

Used on Overshot Rotor Pickup. Not Required on Standard Pickup.

1шт.

13

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

Used on Overshot Rotor Pickup. Not Required on Standard Pickup.

1шт.

14

844-12080

BOLT,Hvy Hex, M12 x 80mm, Cl 8.8

2шт.

Used on Overshot Rotor Pickup. Not Required on Standard Pickup.

1шт.

15

47478176

GUIDE

2шт.

Used on Overshot Rotor Pickup. Not Required on Standard Pickup.

1шт.

16

790472

WASHER,10.3mm ID x 63.5mm OD x 4.8mm Thk

2шт.

17

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

18

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

19

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

20

87302487

SPACER,13.8mm ID x 21.3mm OD x 10.3mm L

2шт.

21

84294582

WASHER

2шт.

22

86508771

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 3/4", Gr 5

12шт.

23

86629544

NUT,5/16” – 18, GR B

12шт.

24

84237595

SUPPORT

LH

1шт.

25

84255054

SUPPORT

RH

1шт.

26

86637848

WASHER,13.5mm ID x 38.1mm OD x 3.68mm Thk

2шт.

27

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

Used on Overshot Rotor Pickup. Not Required on Standard Pickup.

1шт.

28

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

Used on Overshot Rotor Pickup. Not Required on Standard Pickup.

1шт.

29

86622563

SPACER

2шт.

30

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

31

86521607

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

32

9804262

BOLT,M10 x 39.2mm, Cl 8.8

8шт.

Used on Overshot Rotor Pickup. Not Required on Standard Pickup.

1шт.

33

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

2шт.

Used on Overshot Rotor Pickup. Not Required on Standard Pickup.

1шт.

34

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

35

47601518

PLATE

1шт.

Used on Overshot Rotor Pickup. Not Required on Standard Pickup.

1шт.

36

47392413

PLATE

1шт.

Used on Overshot Rotor Pickup. Not Required on Standard Pickup.

1шт.
