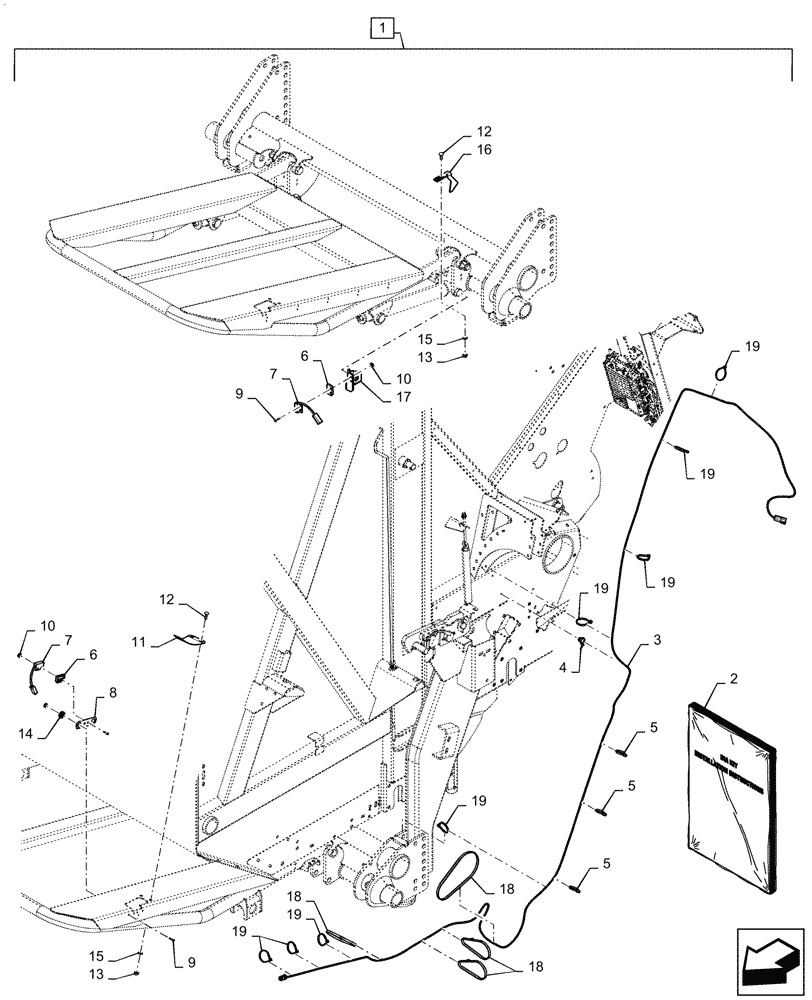

Запчасти Case IH RB455 (88.100.55[06]) - DIA KIT, BALE PRESENCE (88) - ACCESSORIES

1

47979766

DIA KIT, HARVESTER

Bale Presence, Incl 2 - 19

1шт.

2

48054791

INSTRUCTION

1шт.

3

47916943

WIRE HARNESS

Bale Presence

1шт.

4

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

2шт.

5

87668737

CABLE TIE,203.2mm L, Nylon, Black

3шт.

6

86624468

SPACER,1.65" L x 5/16” Thk

1шт.

7

86594422

SENSOR

Bale Presence

1шт.

8

47803736

BRACKET

1шт.

9

87682408

SCREW,Pan, #10 - 24 x 7/8"

4шт.

10

86900323

NUT,#10 - 24

4шт.

11

86637389

SPRING

1шт.

12

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

13

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

14

279431

ISOLATOR

2шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

16

47805261

BRACKET

Bale Presence

1шт.

17

47801185

BRACKET

1шт.

18

87034173

CABLE TIE,774.7mm L

4шт.

19

86566989

CABLE TIE,208mm L

10шт.

20

47984250

SOFTWARE

Unlock Code, Not Inlcuded in Kit, Purchased Separately

1шт.
