(88.100.37[01]) - DIA KIT, LOCKING HITCH PIN AND PTO SUPPORT, YFN188618 AND PRIOR

Запчасти Case IH RB455 (88.100.37[01]) - DIA KIT, LOCKING HITCH PIN AND PTO SUPPORT, YFN188618 AND PRIOR (88) - ACCESSORIES

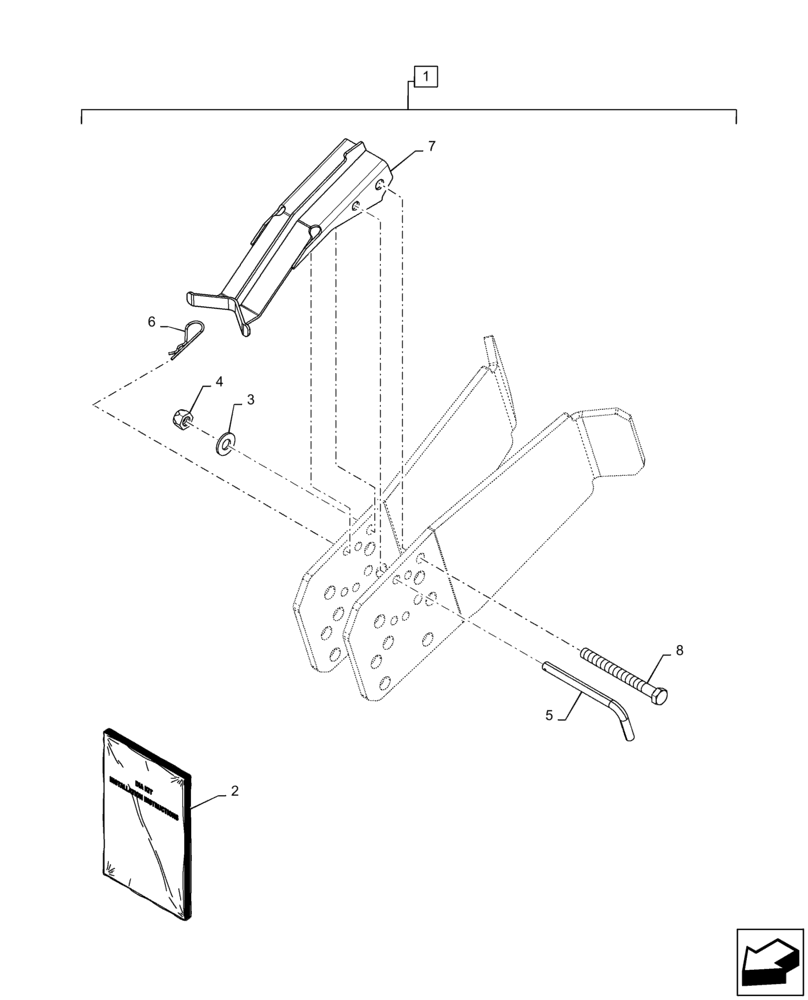

Схема запчастей Case IH RB455 - (88.100.37[01]) - DIA KIT, LOCKING HITCH PIN AND PTO SUPPORT, YFN188618 AND PRIOR (88) - ACCESSORIES
1
8
5
2
6
7
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47531822

DIA KIT, HARVESTER

Locking Hitch Pin and PTO Support, Incl 2 - 7

1шт.

2

84555189

INSTRUCTION

1шт.

3

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

1шт.

4

100038

NUT,M12 x 1.75, Cl 8

1шт.

5

47523471

PIN

1шт.

6

129365

COTTER PIN

1шт.

7

47523478

BRACKET

1шт.

8

309308

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

1шт.
