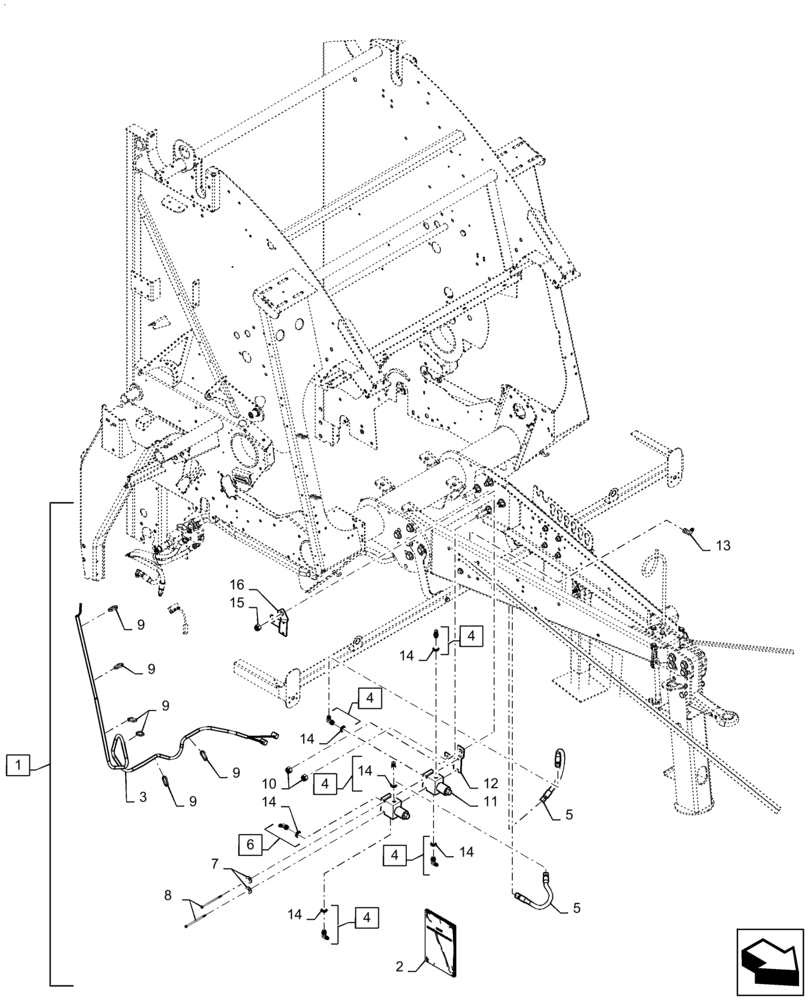

Запчасти Case IH RB455 (88.100.35[06]) - DIA KIT, SPLITTER VALVE (88) - ACCESSORIES

1

84468885

DIA KIT, HARVESTER

Splitter Valve, Incl 2 - 13

1шт.

2

84394625

INSTRUCTION

1шт.

3

84476761

WIRE HARNESS

1шт.

4

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Inc 14

5шт.

5

84474353

HYDRAULIC HOSE

381 mm Long

2шт.

6

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Inc 14

1шт.

7

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

8

328873

BOLT,Hex, M6 x 1 x 120mm, Cl 8.8, Full Thd

2шт.

9

646223

STRAP,8.0" L

6шт.

10

86512555

NUT,M16 x 2, Cl 10

2шт.

11

87016318

VALVE

Splitter

2шт.

12

84474365

MOUNT

1шт.

13

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

15

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

16

47608545

MOUNT

1шт.

17

9706694

NUT,Hex, M20, Cl 8

2шт.
