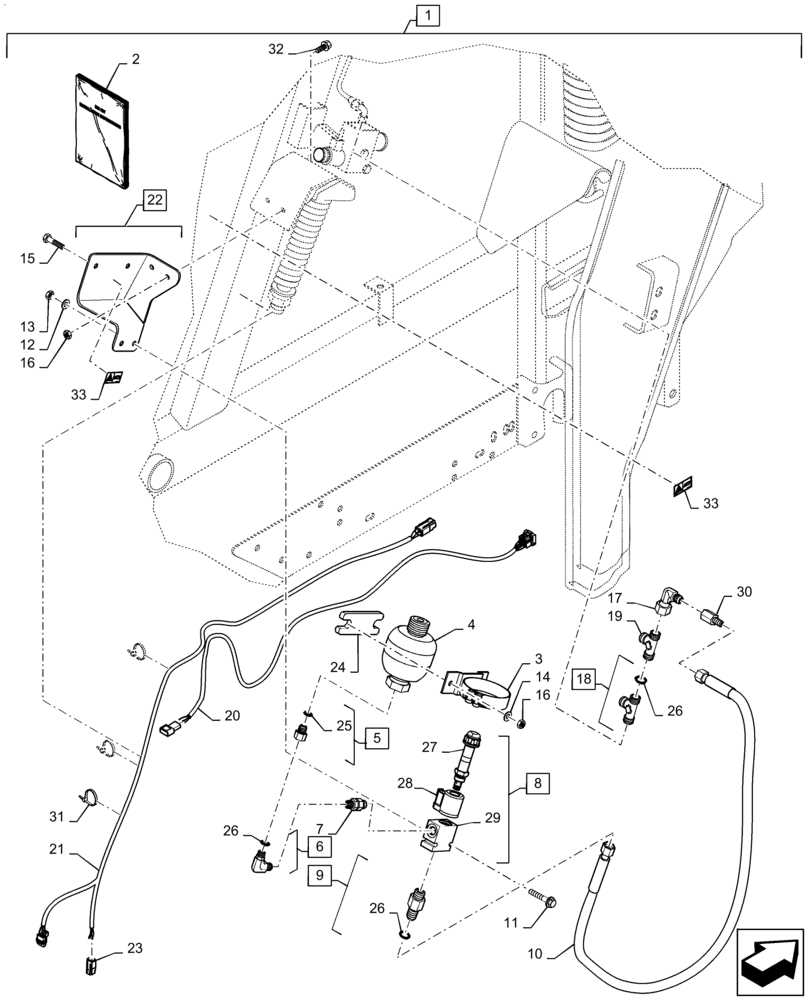

Запчасти Case IH RB455 (88.100.35[04]) - VAR - 439062 - DIA KIT, DENSITY HYDRAULIC SYSTEM PRECHARGE, M.Y. 2015 AND PRIOR (88) - ACCESSORIES

1

47863845

DIA KIT, HARVESTER

Density System Pre Charge, Incl 2 - 33

1шт.

2

47797812

INSTRUCTION

1шт.

3

87750434

CLAMP

1шт.

4

84532089

ACCUMULATOR

1шт.

5

195492

ADAPTER,3/4" - 16 ORB x 9/16" - 18

Incl 25

1шт.

6

86836953

ELBOW,9/16" - 18 ORB x 9/16" - 18 ORB

Incl 26

1шт.

7

9846669

HYD CONNECTOR,9/16" - 18 Male x 9/16" - 18 Male

1шт.

8

84563959

MANIFOLD

Assembly, Incl 27 - 29

1шт.

9

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 26

1шт.

10

47886985

HYDRAULIC HOSE,9.5mm ID x 27mm L, SAE 100R17

1шт.

11

412364

CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8

2шт.

12

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

13

353308

NUT,M6 x 1.0, Cl 8

2шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

15

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

5шт.

16

86629542

NUT,M8 x 1.25, Cl 8.8

5шт.

17

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

18

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 26

1шт.

19

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

20

47563962

WIRE HARNESS

BK

1шт.

21

47563960

WIRE HARNESS

BP

1шт.

22

47583261

SUPPORT

Incl 33

1шт.

23

47564232

WIRE HARNESS

BJ

1шт.

24

47492194

SPACER,120mm L x 12mm Thk

1шт.

25

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

27

84300100

CARTRIDGE

1шт.

28

84300102

COIL

1шт.

29

NSS

NOT SOLD SEPARAT

Manifold, Incl in 8

1шт.

30

87267034

ORIFICE,9/16" - 18 Male JIC x 9/16" - 18 Female JIC, 1.91mm ID

1шт.

31

86566989

CABLE TIE,208mm L

10шт.

32

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

33

87745977

CAUTION DECAL

2шт.
