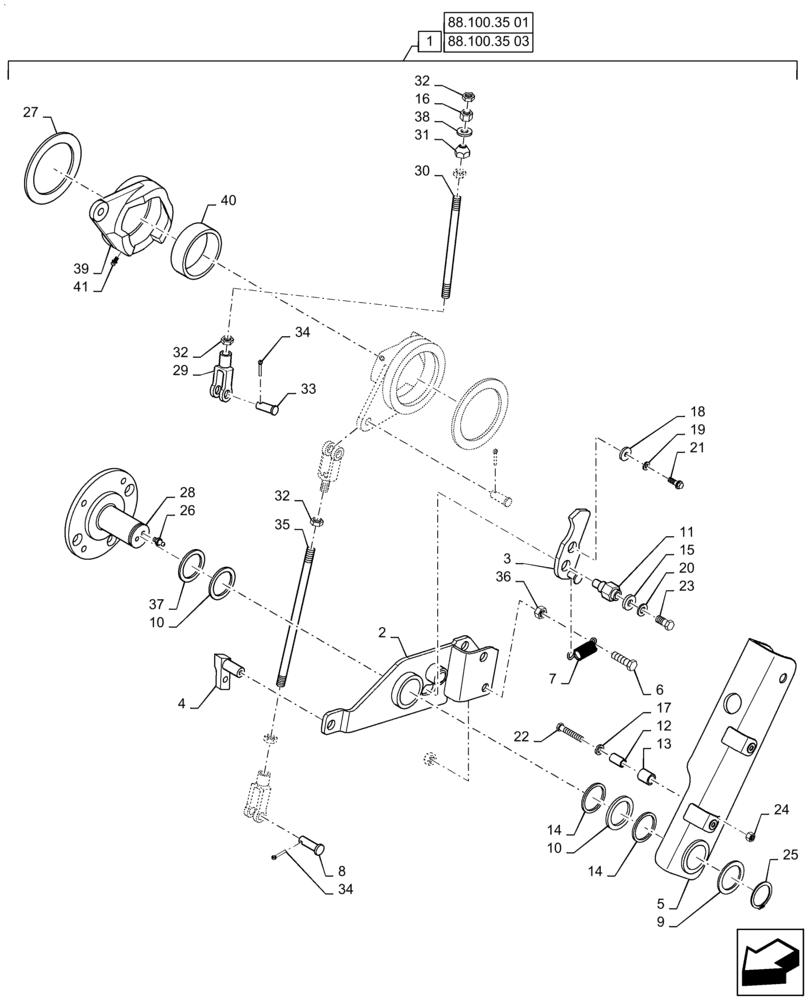

Запчасти Case IH RB455 (88.100.35[02]) - DIA KIT, REVERSER LINKAGE (88) - ACCESSORIES

1

84385997

DIA KIT, HARVESTER

Hydraulic Rotor Reverser, Incl 2 - 39 plus Figures 88.100.35 01 and 88.100.35 03

1шт.

2

84572204

ARM

1шт.

3

87394426

ARM

1шт.

4

47400925

DOG

1шт.

5

84552023

SUPPORT

1шт.

6

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

7

32306

SPRING

1шт.

8

321018

CLEVIS PIN,12mm OD x 44mm L

1шт.

9

165238

WASHER,45.2mm ID x 63.5mm OD x 1.24mm Thk

1шт.

10

762217

WASHER

2шт.

11

47401439

SHAFT,M12 x 1.75

1шт.

12

86634543

SPACER

1шт.

13

87023405

SPACER,13.64mm ID x 19.18mm OD x 22.9mm L

1шт.

14

87652388

WASHER,45.24mm ID x 56.36mm OD x 1.52mm Thk

2шт.

15

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

1шт.

16

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

17

87362

WASHER,5/16" SAE

1шт.

18

213137

WASHER,6.76mm ID x 25.4mm OD x 3.17mm Thk

1шт.

19

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

21

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

22

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

23

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

24

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

25

11487

SNAP RING,#175, Ext

1шт.

26

87414

LUBE NIPPLE,1/4" - 28

2шт.

27

86630617

WASHER

2шт.

28

84347289

HUB

2шт.

29

86627455

CLEVIS,1/2" - 20

3шт.

30

86705722

THREADED ROD

1шт.

31

29790

NUT,1/2" - 20

1шт.

32

87309

JAM NUT,Jam, 1/2"-20, G2

5шт.

33

76877

CLEVIS PIN,12.6mm OD x 34.52mm L

2шт.

34

80755

COTTER PIN,1/8" OD x 1" L

3шт.

35

86705723

THREADED ROD

1шт.

36

86000021

BEARING LOCK NUT,M12, Cl 8

2шт.

37

84578315

WASHER

1шт.

38

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

39

86705574

HUB

1шт.

40

86577603

BUSHING,98.6mm ID x 103.18mm OD x 25.4mm L

1шт.

41

87414

LUBE NIPPLE,1/4" - 28

1шт.
