Запчасти Case IH RB455 (88.100.35[01]) - DIA KIT, HYDRAULIC SYSTEM, REVERSER (88) - ACCESSORIES

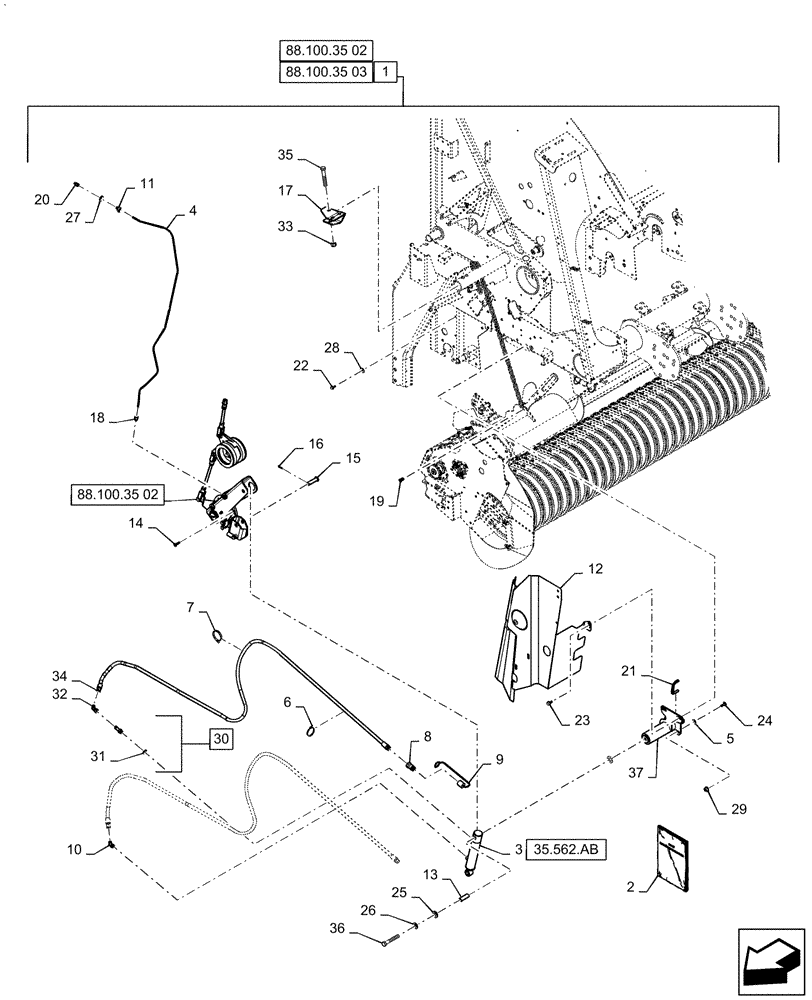

Схема запчастей Case IH RB455 - (88.100.35[01]) - DIA KIT, HYDRAULIC SYSTEM, REVERSER (88) - ACCESSORIES
88.100.35 02
18
5
31
15
26
34
12
27
16
24
4
29
33
23
7
14
17
28
25
21
20
9
1
30
32
2
3
36
6
37
13
11
8
19
10
22
35
35.562.ab
88.100.35 03
88.100.35 02

Артикул

Название

Примечание

Количество

1

84385997

DIA KIT, HARVESTER

Hydraulic Rotor Reverser, Incl 2 - 37 plus Figures 88.100.35 02 and 88.100.35 03.

1шт.

2

47777414

INSTRUCTION

1шт.

3

87029395

CYLINDER ASSY.,Double Acting, 19.05mm Rod, 119.89mm Stroke

1шт.

4

87014413

TUBE,4.80 mm OD x 1850 mm L

1шт.

Cut to Length Required

1шт.

5

29046

WASHER,11.1mm ID x 25.4mm OD x 0.457mm Thk

5шт.

6

263117

CABLE TIE,292.1mm L, Nylon, Black

8шт.

7

87034173

CABLE TIE,774.7mm L

1шт.

8

9801618

QUICK MALE COUPLING,1/2" - 14

2шт.

9

333718A1

CAP

2шт.

10

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Incl (2) 31

1шт.

11

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

1шт.

12

47357699

SHIELD

1шт.

13

47449876

SPACER,15.98mm ID x 19.18mm OD x 57mm L

1шт.

14

320772

HEX SOC SCREW,CSS, M10 x 30mm, Cl 8.8

4шт.

15

322441

CLEVIS PIN,M16 x 65

1шт.

16

80755

COTTER PIN,1/8" OD x 1" L

1шт.

17

87663907

CHANNEL

1шт.

18

86580291

ADAPTER,1/8" - 27 x 1/4" - 28

1шт.

19

11787

FITTING,3/8"-24 Fem x 1/8" NPT

1шт.

20

84303

LUBE NIPPLE,1/8"-27 NPT x 1" lg, Fem

1шт.

21

NH291525

EDGE

1шт.

Cut to Length Required

1шт.

22

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

23

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

24

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

25

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

26

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

27

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

28

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

29

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

30

86513065

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, Pipe

Incl 31

1шт.

31

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

32

86512959

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

33

86000441

NUT,M16 x 2.0, Cl 8

1шт.

34

84602639

HYDRAULIC HOSE

2шт.

35

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

1шт.

36

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

37

47583841

SUPPORT

1шт.

Выбрано товаров: 39
