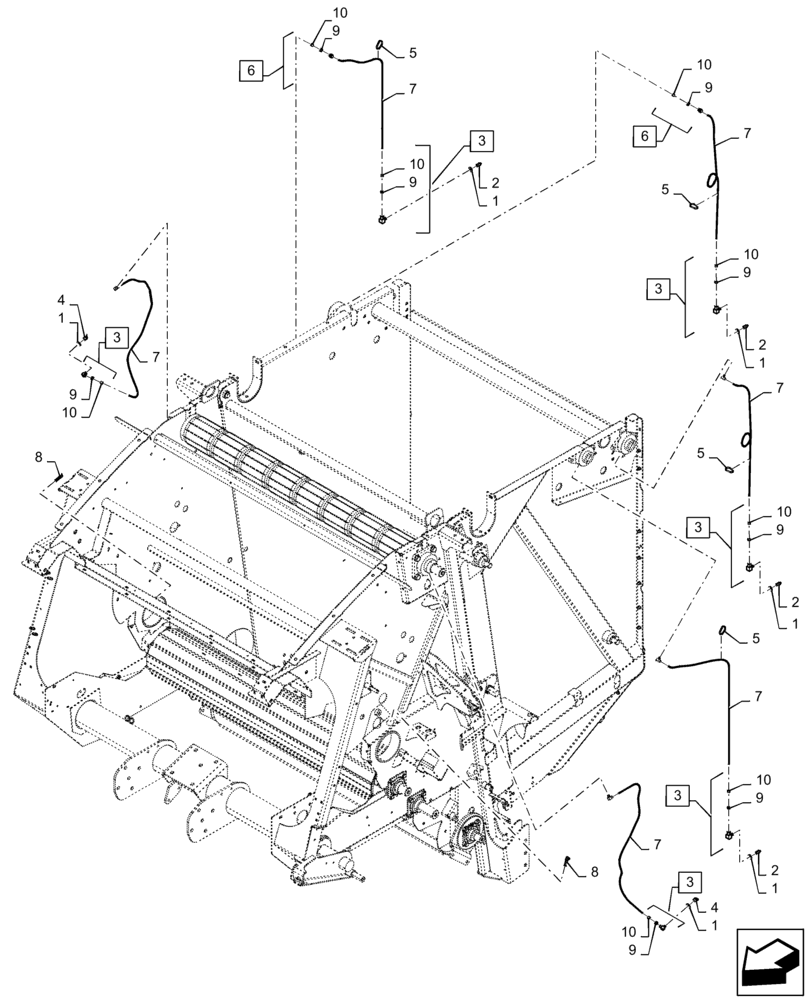

Запчасти Case IH RB455 (71.460.AF[03]) - GREASE, LUBRICATION LINE (71) - LUBRICATION SYSTEM

1

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

6шт.

2

84303

LUBE NIPPLE,1/8"-27 NPT x 1" lg, Fem

4шт.

3

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

Incl 9, 10

11шт.

4

80280397

LUBE NIPPLE,45 Degree, Female 1/8" NPTF

2шт.

5

646223

STRAP,8.0" L

5шт.

6

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Incl 9, 10

1шт.

7

86629566

PLASTIC-RUBBER TUBE,2.8mm ID x 4.8mm OD

1шт.

Cut to Length Required

1шт.

8

87779109

LUBE NIPPLE,90 Degree, 1/8" - 27

2шт.

9

13362

SLEEVE,Compression, 3/16" Tube

1шт.

10

13367

NUT,3/8" - 24

1шт.
