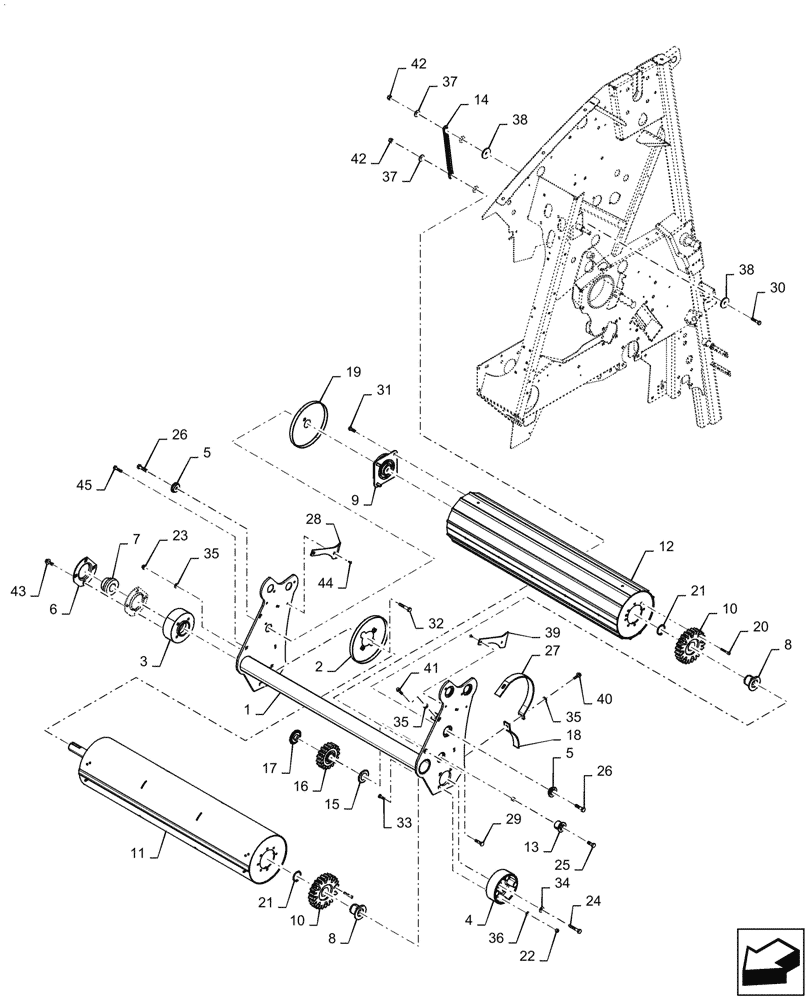

Запчасти Case IH RB455 (62.170.AA[02]) - SLEDGE, CHOPPING ROLL, YGN193203 AND AFTER (62) - PRESSING - BALE FORMATION

1

47971129

FRAME

Sledge

1шт.

2

87025815

SHIELD

1шт.

3

9608202

HUB

RH

1шт.

4

9803281

HUB

LH

12шт.

5

87398962

HUB,12.5mm ID x 47.42mm OD x 13.2mm L

2шт.

6

86548973

FLANGE

1шт.

7

412441

ROLLER BEARING,40mm ID x 80mm OD x 21mm W, Round Bore

2шт.

8

9803325

SUPPORT

1шт.

9

84415463

FLANGED BEARING

2шт.

10

87052121

GEAR

24T

1шт.

11

87611564

ROLL

Pivot

1шт.

12

84369419

ROLL,254mm OD x 1107mm L

Stripper

1шт.

13

9808557

BUSHING

1шт.

14

86527218

CHAIN,378mm L

1шт.

15

9843938

SHIELD

1шт.

16

9806931

IDLER GEAR,17T

1шт.

17

9843939

CAP

1шт.

18

47940947

GUARD

1шт.

19

84313928

SHIELD

Trash

1шт.

20

81972

HEX SOC SCREW,5/16" - 18 x 1-3/4"

16шт.

21

168104

SNAP RING,#177, Ext

2шт.

22

9628503

NUT,3/8"-16, G5

4шт.

23

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

24

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

25

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

26

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

27

47940945

GUARD

Upper

1шт.

28

47931251

WEAR PLATE

RH

1шт.

29

86516319

PLOW BOLT,7/16" - 14 x 1 3/4", Gr 5

1шт.

30

84192879

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

1шт.

31

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

32

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.

33

281004

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

4шт.

34

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

35

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

36

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

37

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

4шт.

38

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

39

47931249

WEAR PLATE

LH

1шт.

40

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

41

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

42

87517

NUT,7/16"-14, GB

2шт.

43

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

4шт.

44

14441231

HEX SOC SCREW,Flat Csk Hd, M6 x 12mm, Cl 10.9

4шт.

45

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.
