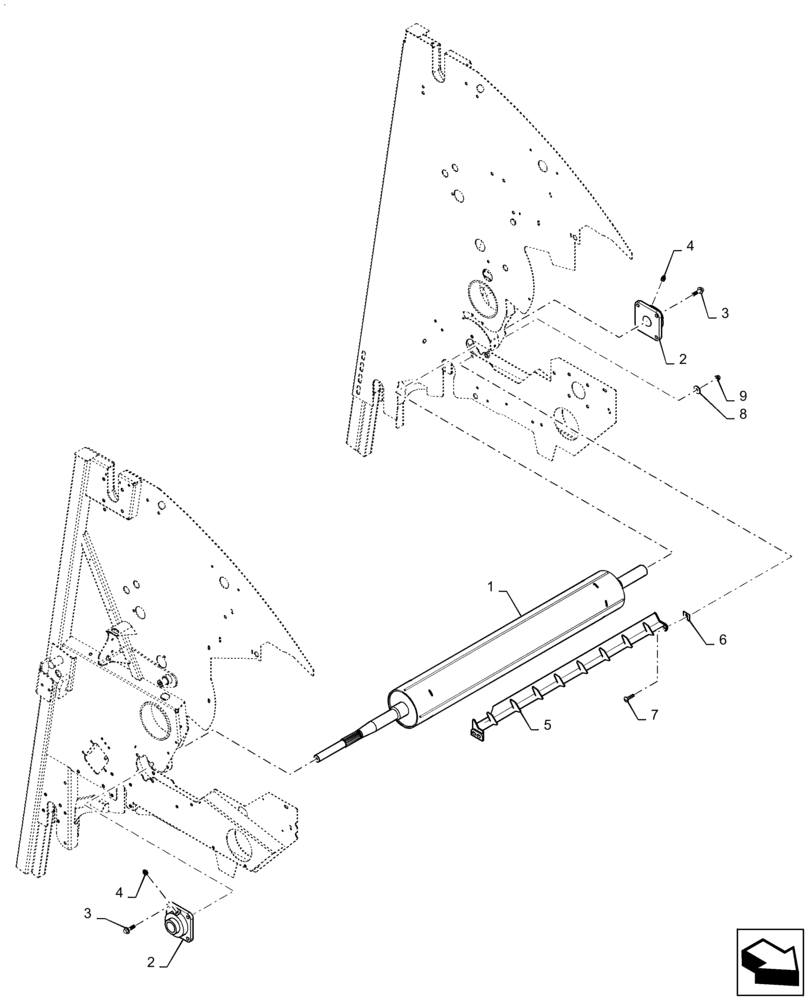

Запчасти Case IH RB455 (62.150.AB[01]) - STARTER ROLL (62) - PRESSING - BALE FORMATION

1

47475711

ROLL

Starter, Hay and Silage, 2 Splines

1шт.

1

47587935

ROLL

Starter, Hay and Silage, Optional, 1 Spline

1шт.

For use in Wet, Sticky Crop Conditions.

1шт.

2

86609558

BEARING ASSY,45mm ID

2шт.

3

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

8шт.

4

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

2шт.

5

47473621

RAKE

Optional

1шт.

For use in Wet, Sticky Crop Conditions.

1шт.

6

47473637

SHIM,17.5mm OD x 0.4mm Thk

Optional

1шт.

For use in Wet, Sticky Crop Conditions.

1шт.

7

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

4шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

9

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.
