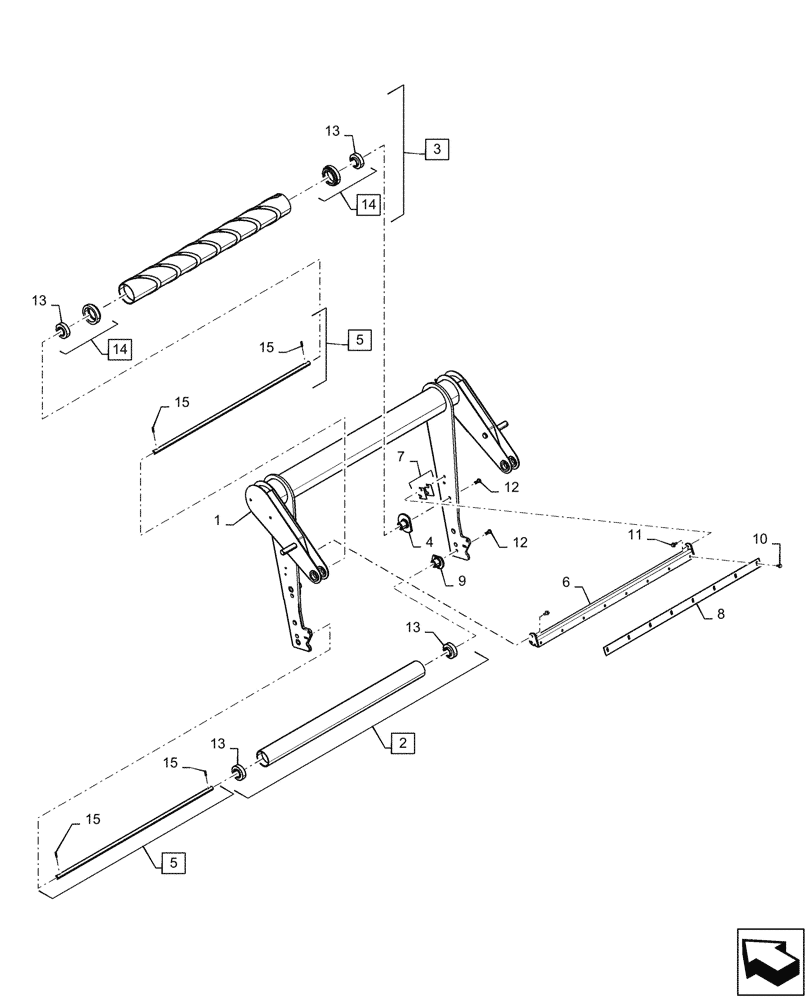

Запчасти Case IH RB455 (62.140.AR[02]) - BALE DENSITY TAKE UP ARM, ROLLERS, SCRAPER, SILAGE, YGN193203 AND AFTER (62) - PRESSING - BALE FORMATION

1

47689083

ARM

Take Up, with Single Density Cylinder

1шт.

1

47963364

ARM

Take Up, with Dual Density Cylinders

1шт.

2

84356720

ROLL,88.9mm OD x 1142mm L

Front Serpentine, Loop, Incl 13

1шт.

3

47512226

ROLL

Rear Serpentine, Smooth, Incl 14

1шт.

4

86516322

SUPPORT

2шт.

5

9823372

SHAFT,1135mm L

Incl 15

2шт.

6

87040645

ANGLE

1шт.

7

47527692

SHIM,54mm OD x 0.4mm Thk

4шт.

8

9845575

SCRAPER BLADE

1шт.

9

86521602

SUPPORT

2шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

11

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

12

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

4шт.

13

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

14

47935418

BEARING HOUSING

Incl 13

2шт.

15

130045

PIN,5mm OD x 26mm L, Slotted

2шт.
