(62.140.AR[01]) - BALE DENSITY TAKE UP ARM AND ROLLERS, DRY HAY, YGN193203 AND AFTER

Запчасти Case IH RB455 (62.140.AR[01]) - BALE DENSITY TAKE UP ARM AND ROLLERS, DRY HAY, YGN193203 AND AFTER (62) - PRESSING - BALE FORMATION

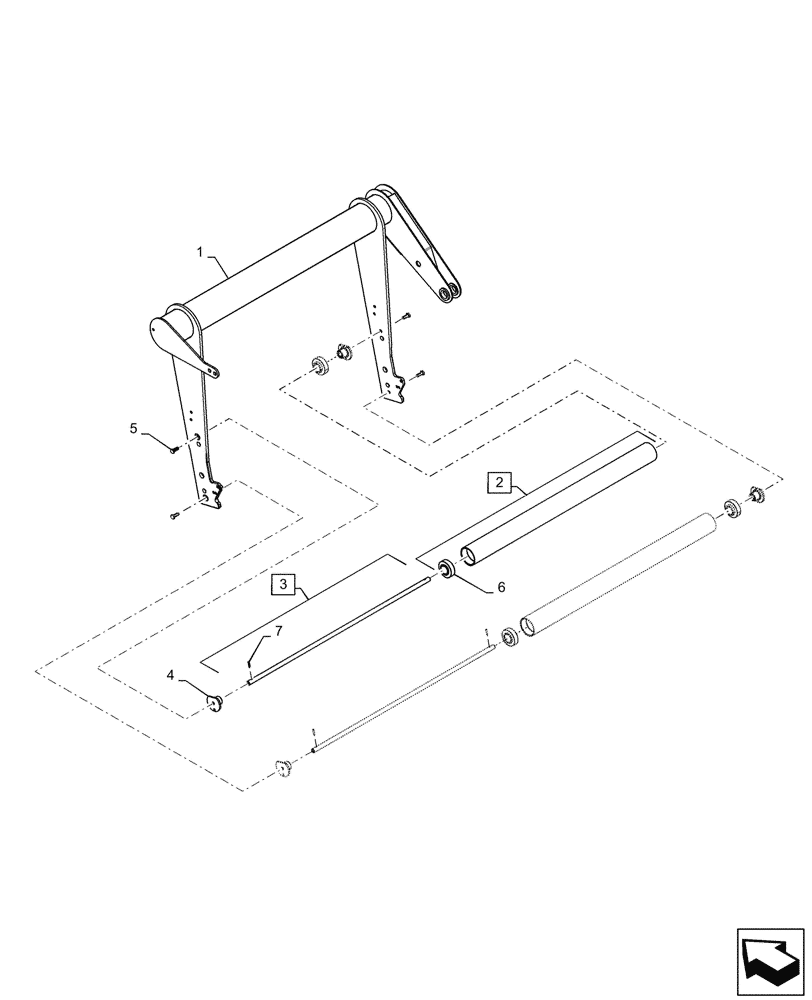

Схема запчастей Case IH RB455 - (62.140.AR[01]) - BALE DENSITY TAKE UP ARM AND ROLLERS, DRY HAY, YGN193203 AND AFTER (62) - PRESSING - BALE FORMATION
6
7
1
4
2
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47689083

ARM

Take Up

1шт.

2

84356720

ROLL,88.9mm OD x 1142mm L

Incl 6

2шт.

3

9823372

SHAFT,1135mm L

Incl 7

2шт.

4

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

5

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

4шт.

6

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

7

130045

PIN,5mm OD x 26mm L, Slotted

2шт.
