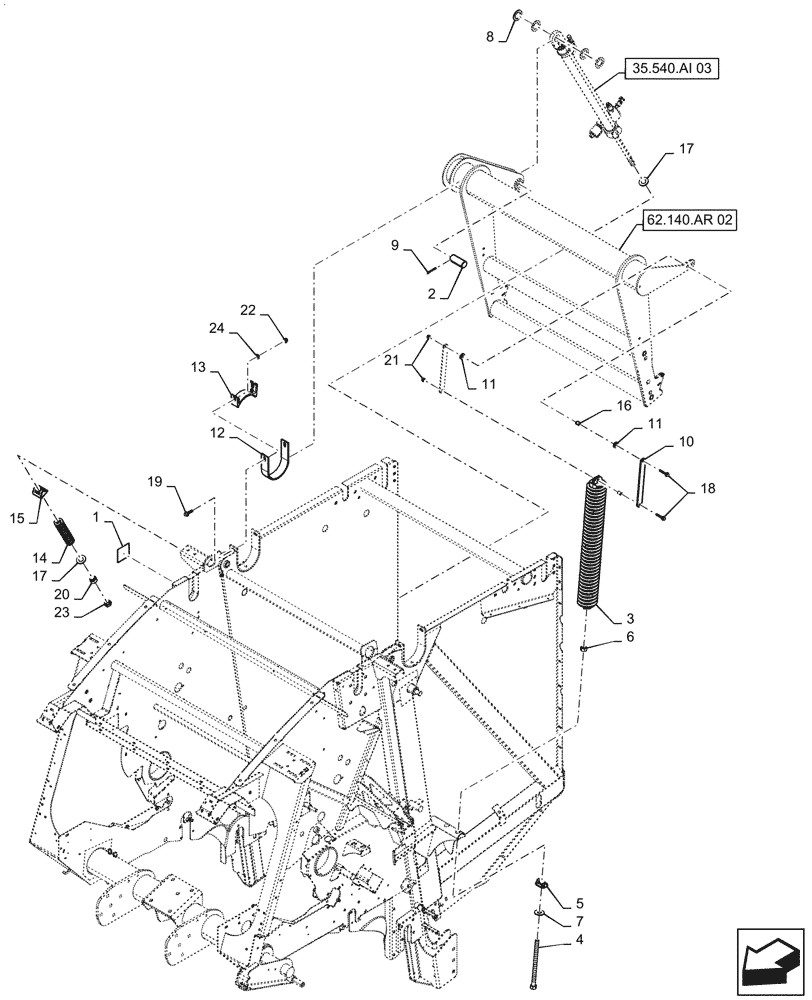

Запчасти Case IH RB455 (62.140.AQ[14]) - VAR - 727159 - BALE TENSION TAKE UP ARM AND ONE SPRING, SINGLE HYD. CYLINDER, OVERSHOT FEEDER, IN CAB CONTROL, SILAGE ,YGN193203 AND AFTER (62) - PRESSING - BALE FORMATION

1

87022793

DECAL

1шт.

2

86515940

PIN,38.1mm OD x 91.5mm L

1шт.

3

9608196

SPARE PART

1шт.

4

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

1шт.

5

625098

PIVOT

1шт.

6

280954

NUT,3/4"-10, G5

1шт.

7

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

1шт.

8

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

4шт.

9

87400

COTTER PIN,3/16" x 2"

2шт.

10

47888240

LINK,296mm L

2шт.

11

52828

WASHER

2шт.

12

9617265

BAND

2шт.

13

9617266

BEARING CAP,145.6 mm OD

2шт.

14

9846489

SPRING,Compression, 1.81" OD x 9.44" L

1шт.

15

226131

PIVOT

1шт.

16

768624

SPACER

2шт.

17

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

2шт.

18

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

19

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

4шт.

20

9849647

NUT,7/8"-9, G5

1шт.

21

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

22

86619803

FLANGE NUT

4шт.

23

87314

JAM NUT,Jam, 7/8"-9, G2

1шт.

24

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.
