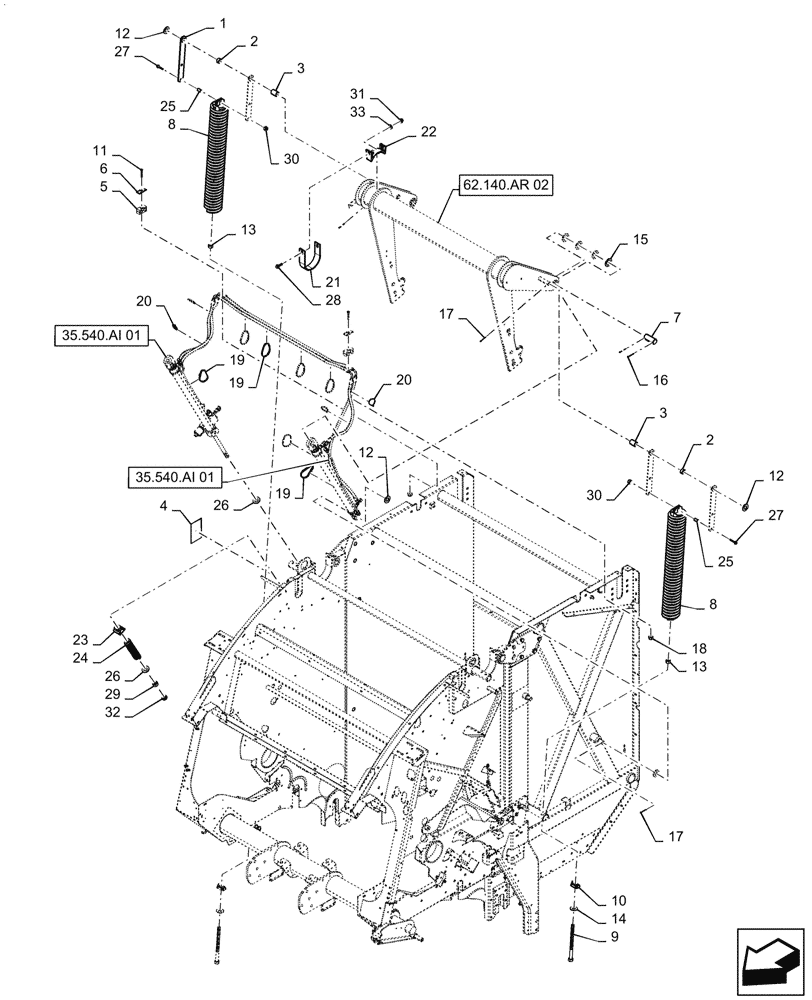

Запчасти Case IH RB455 (62.140.AQ[13]) - VAR - 727159 - BALE TENSION TAKE UP ARM AND ONE SPRING, DUAL HYD. CYLINDERS, OVERSHOT FEEDER, IN CAB CONTROL, SILAGE, YGN193203 AND AFTER (62) - PRESSING - BALE FORMATION

1

47887735

LINK,306mm L

4шт.

2

32406

SPACER,25.9mm ID x 31.5mm OD x 16.8mm L

2шт.

3

600310

SPACER

2шт.

4

87022793

DECAL

1шт.

5

1589857

CLAMP

2шт.

6

87000230

PLATE

2шт.

7

86515940

PIN,38.1mm OD x 91.5mm L

2шт.

8

9608196

SPARE PART

2шт.

9

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

2шт.

10

625098

PIVOT

2шт.

11

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

12

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

13

280954

NUT,3/4"-10, G5

2шт.

14

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

15

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

8шт.

16

87400

COTTER PIN,3/16" x 2"

4шт.

17

87399

COTTER PIN,1/2 x 3 Bolt

3шт.

18

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

19

87034173

CABLE TIE,774.7mm L

7шт.

20

86566989

CABLE TIE,208mm L

4шт.

21

9617265

BAND

2шт.

22

9617266

BEARING CAP,145.6 mm OD

2шт.

23

9846489

SPRING,Compression, 1.81" OD x 9.44" L

1шт.

24

26131

FLEXIBLE HOSE

1шт.

25

768624

SPACER

2шт.

26

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

2шт.

27

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

28

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

4шт.

29

9849647

NUT,7/8"-9, G5

1шт.

30

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

31

86619803

FLANGE NUT

4шт.

32

87314

JAM NUT,Jam, 7/8"-9, G2

1шт.

33

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.
