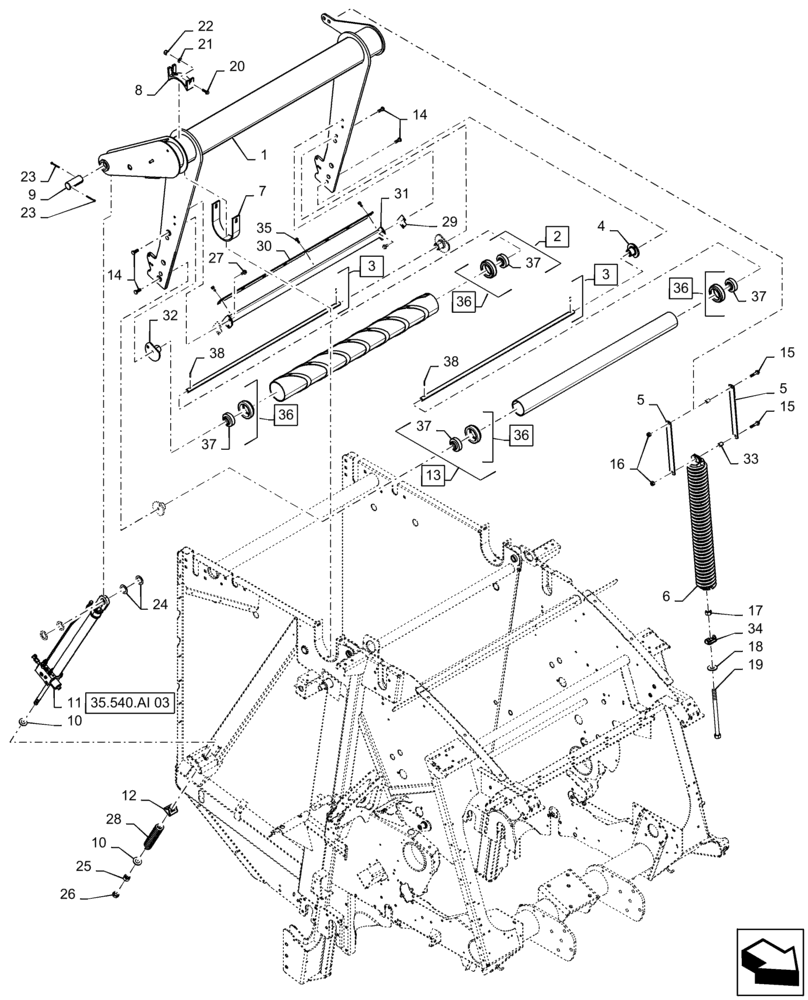

Запчасти Case IH RB455 (62.140.AQ[03]) - VAR - 727159 - BALE TENSION TAKE UP ARM AND ONE SPRING WITH LOOP ROLL, SINGLE HYD. CYLINDER, IN CAB CONTROL, YFN188619 AND AFTER (62) - PRESSING - BALE FORMATION

1

47689083

ARM

Take Up

1шт.

2

47512226

ROLL

Rear Serpentine, Loop, Incl 36

1шт.

3

9823372

SHAFT,1135mm L

Incl 38

2шт.

4

87023400

SUPPORT

2шт.

5

86636983

LINK,326mm L

2шт.

6

87654704

SPRING

1шт.

7

9617265

BAND

2шт.

8

86636552

BEARING CAP

2шт.

9

86637228

PIN,38.1mm OD x 91.5mm L

1шт.

10

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

2шт.

11

0C

ORDER COMPONENTS

1шт.

12

87654703

PIVOT

1шт.

13

84356720

ROLL,88.9mm OD x 1142mm L

Front Serpentine, Incl 37

1шт.

14

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

4шт.

15

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

16

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

17

280954

NUT,3/4"-10, G5

1шт.

18

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

1шт.

19

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

1шт.

20

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

4шт.

21

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

22

86619803

FLANGE NUT

4шт.

23

87400

COTTER PIN,3/16" x 2"

2шт.

24

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

4шт.

25

9849647

NUT,7/8"-9, G5

1шт.

26

87314

JAM NUT,Jam, 7/8"-9, G2

1шт.

27

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

28

9846489

SPRING,Compression, 1.81" OD x 9.44" L

1шт.

29

47527692

SHIM,54mm OD x 0.4mm Thk

2шт.

30

9845575

SCRAPER BLADE

1шт.

31

87040645

ANGLE

1шт.

32

86516322

SUPPORT

2шт.

33

768624

SPACER

2шт.

34

625098

PIVOT

1шт.

35

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

36

47504953

BEARING HOUSING,73mm ID x 106.1mm OD x 30mm Thk

Incl 37

2шт.

37

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

38

130045

PIN,5mm OD x 26mm L, Slotted

2шт.
