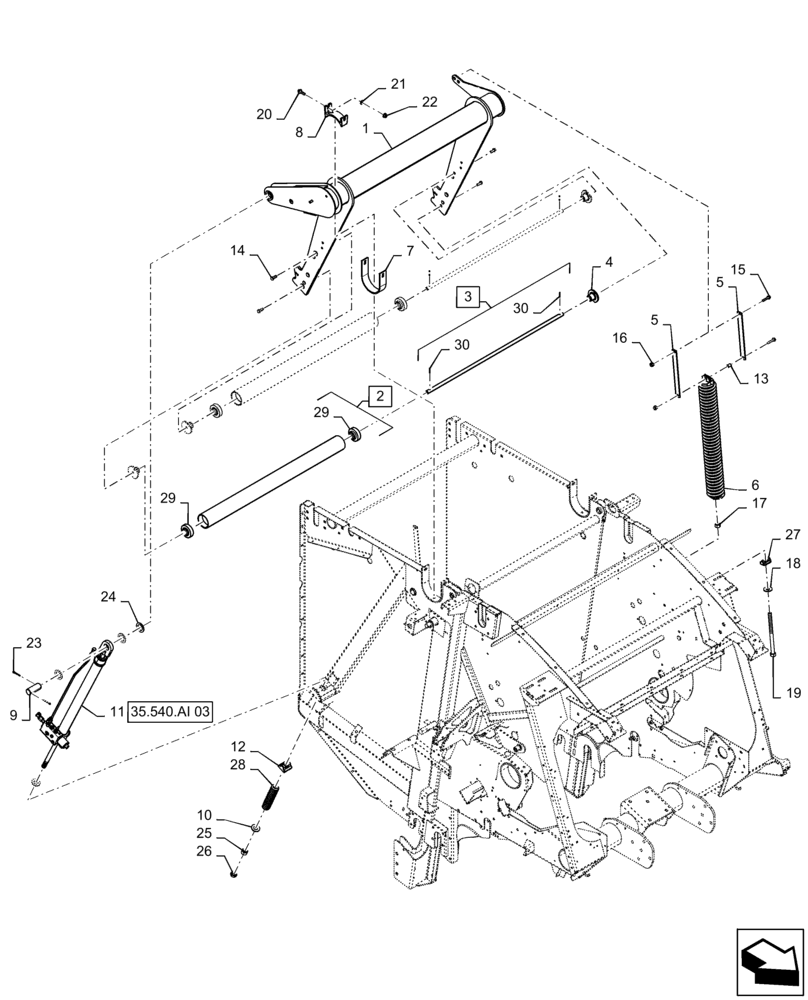

Запчасти Case IH RB455 (62.140.AQ[02]) - VAR - 727159 - BALE TENSION TAKE UP ARM AND ONE SPRING, SINGLE HYD. CYLINDER, OVERSHOT FEEDER, IN CAB CONTROL, YFN188619 AND AFTER (62) - PRESSING - BALE FORMATION

1

47689083

ARM

Take Up

1шт.

2

84356720

ROLL,88.9mm OD x 1142mm L

Serpentine, Incl 29

2шт.

3

9823372

SHAFT,1135mm L

Incl 30

2шт.

4

87023400

SUPPORT

4шт.

5

86636983

LINK,326mm L

2шт.

6

87654704

SPRING

1шт.

7

9617265

BAND

2шт.

8

86636552

BEARING CAP

2шт.

9

86637228

PIN,38.1mm OD x 91.5mm L

1шт.

10

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

2шт.

11

0C

ORDER COMPONENTS

SINGLE HYD. CYLINDER, OVERSHOT FEEDER, IN CAB CONTROL - VAR 727159

1шт.

12

87654703

PIVOT

1шт.

13

86636659

SPACER,10.28mm ID x 15.85mm OD x 21.84mm L

2шт.

14

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

4шт.

15

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

16

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

17

280954

NUT,3/4"-10, G5

1шт.

18

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

1шт.

19

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

1шт.

20

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

4шт.

21

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

22

86619803

FLANGE NUT

4шт.

23

87400

COTTER PIN,3/16" x 2"

2шт.

24

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

4шт.

25

9849647

NUT,7/8"-9, G5

1шт.

26

87314

JAM NUT,Jam, 7/8"-9, G2

1шт.

27

625098

PIVOT

1шт.

28

9846489

SPRING,Compression, 1.81" OD x 9.44" L

1шт.

29

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

4шт.

30

130045

PIN,5mm OD x 26mm L, Slotted

4шт.
