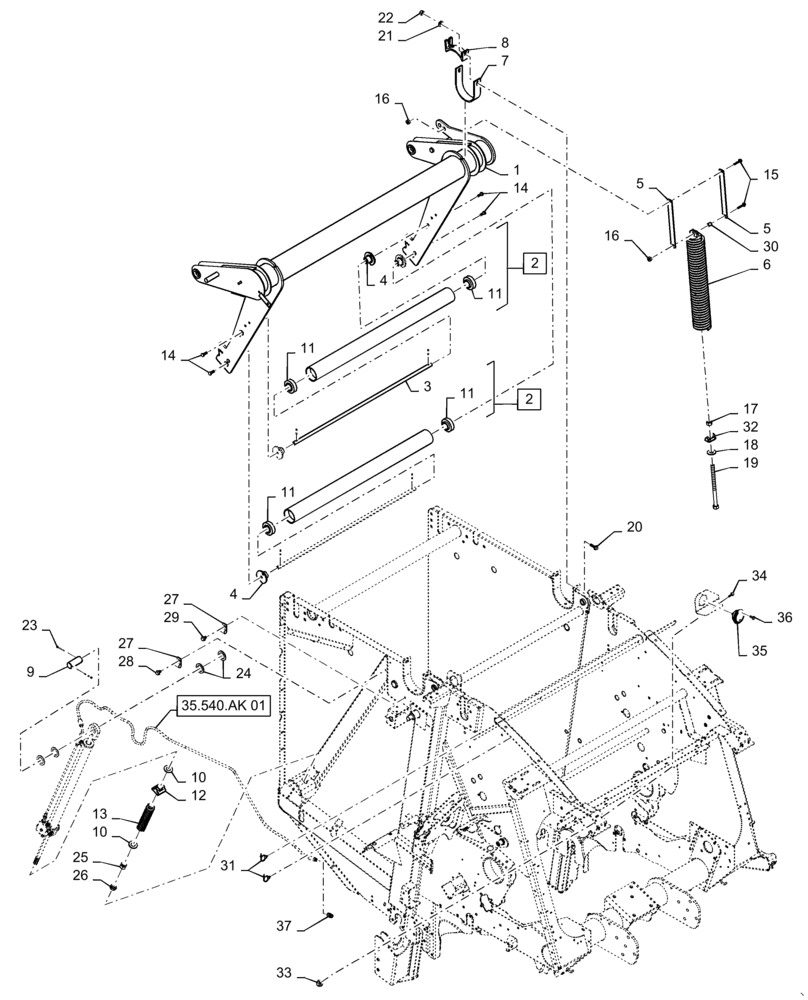

Запчасти Case IH RB455 (62.140.AQ[01]) - VAR - 726813 - BALE TENSION TAKE UP ARM AND ONE SPRING, SINGLE HYD. CYLINDER, YFN188618 AND PRIOR (62) - PRESSING - BALE FORMATION

1

84365202

ARM

Take Up

1шт.

2

84356720

ROLL,88.9mm OD x 1142mm L

Front Serpentine, Incl 11

2шт.

3

9823372

SHAFT,1135mm L

2шт.

4

86521602

SUPPORT

4шт.

5

9829481

CONNECTING LINK

2шт.

6

9608196

SPARE PART

1шт.

7

9617265

BAND

2шт.

8

9617266

BEARING CAP,145.6 mm OD

2шт.

9

86515940

PIN,38.1mm OD x 91.5mm L

1шт.

10

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

2шт.

11

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

4шт.

12

226131

PIVOT

1шт.

13

9846489

SPRING,Compression, 1.81" OD x 9.44" L

1шт.

14

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

4шт.

15

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

16

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

17

280954

NUT,3/4"-10, G5

1шт.

18

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

1шт.

19

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

1шт.

20

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

4шт.

21

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

22

100038

NUT,M12 x 1.75, Cl 8

4шт.

23

87400

COTTER PIN,3/16" x 2"

2шт.

24

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

4шт.

25

9849647

NUT,7/8"-9, G5

1шт.

26

87314

JAM NUT,Jam, 7/8"-9, G2

1шт.

27

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

28

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

29

381014

SCREW,Flng, M8 x 16mm

2шт.

30

768624

SPACER

1шт.

31

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

2шт.

32

625098

PIVOT

1шт.

33

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

34

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

2шт.

35

84384411

PRESSURE GAUGE,3000 PSI, 1/4" NPT

3000 PSI

1шт.

36

425520

RIVET,Pop, 3.96mm OD x 10.4mm L

3шт.

37

241971

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, Fem Pipe

1шт.
