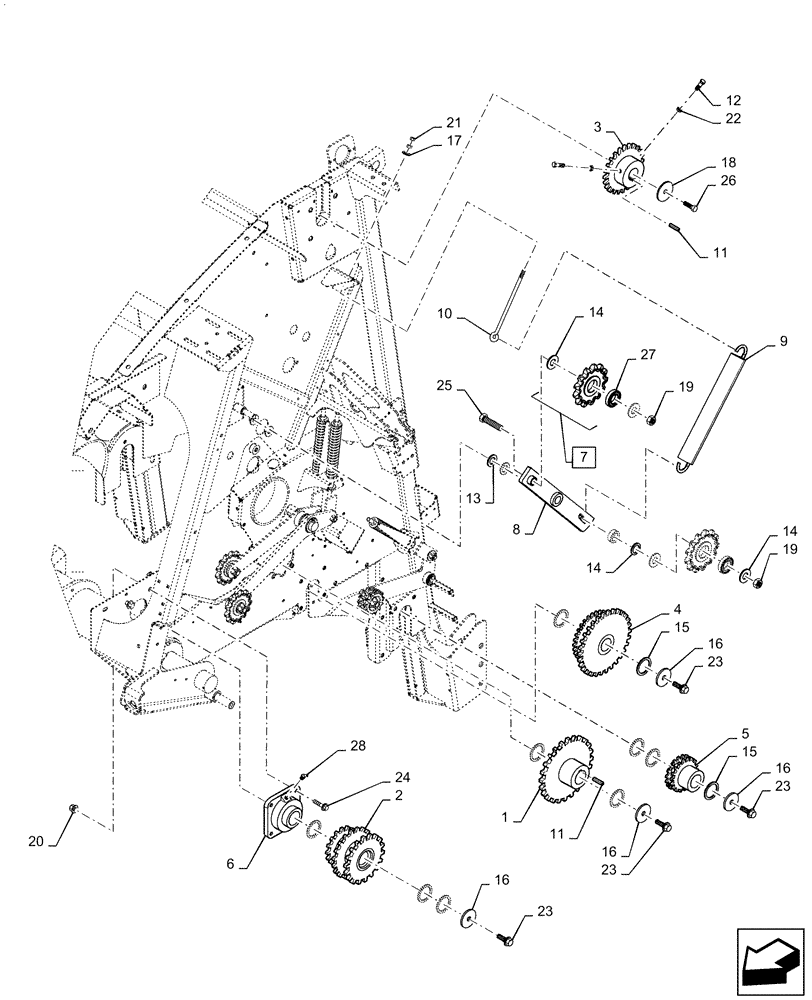

Запчасти Case IH RB455 (62.140.AJ[01]) - DRIVE SPROCKETS, LH (62) - PRESSING - BALE FORMATION

1

84280322

SPROCKET,RC80, 25T

25T, RC80

1шт.

2

84406459

SPROCKET

13T / 18T, RC80

1шт.

3

86637269

DRIVEN SPROCKET,RC80, 22T

22T, RC80

1шт.

4

84594720

SPROCKET,27T Internal, 16T/16T/25T External

16T, RC60 / 25T, RC80

1шт.

5

84594180

SPROCKET,27T Internal, 17T/17T External

17T, RC60, Double

1шт.

6

86609558

BEARING ASSY,45mm ID

1шт.

7

84401598

SPROCKET,39.967mm ID x 118.4mm OD x 14.61mm Thk

13T, RC80, Incl 27

2шт.

8

84262617

ARM

Idler, Incl 29, Serial Range: -YFN188618

1шт.

8

47748078

ARM

Idler, Incl 29 , Start Serial: YFN188619

1шт.

9

86512547

SPRING,Extension, 1.94" OD x 13 - 1/8" L

1шт.

10

183356

EYEBOLT,3/8" - 16 x 10" L

1шт.

11

87483

KEY,0.31" x 1.5" L

2шт.

12

86542824

SET SCREW,Sq Hd, 3/8" - 16 x 1-1/2"

2шт.

13

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

2шт.

14

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

15

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

1шт.

16

694478

WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk

4шт.

17

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

18

86624647

WASHER,10.8mm ID x 57mm OD x 6.1mm Thk

1шт.

19

86000441

NUT,M16 x 2.0, Cl 8

2шт.

20

9804279

FLANGE NUT,Hex, M12, Cl 8

4шт.

21

9628503

NUT,3/8"-16, G5

2шт.

22

86509499

JAM NUT,3/8"-16, G2

2шт.

23

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

4шт.

24

9671487

BOLT,Hex, M12 x 50mm, Cl 8.8

4шт.

25

120092

BOLT,M16 x 70mm, Cl 8.8

1шт.

26

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

27

66553

BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W

2шт.

28

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

1шт.

29

84019797

SLEEVE,25mm ID x 28mm OD x 25mm L

1шт.
