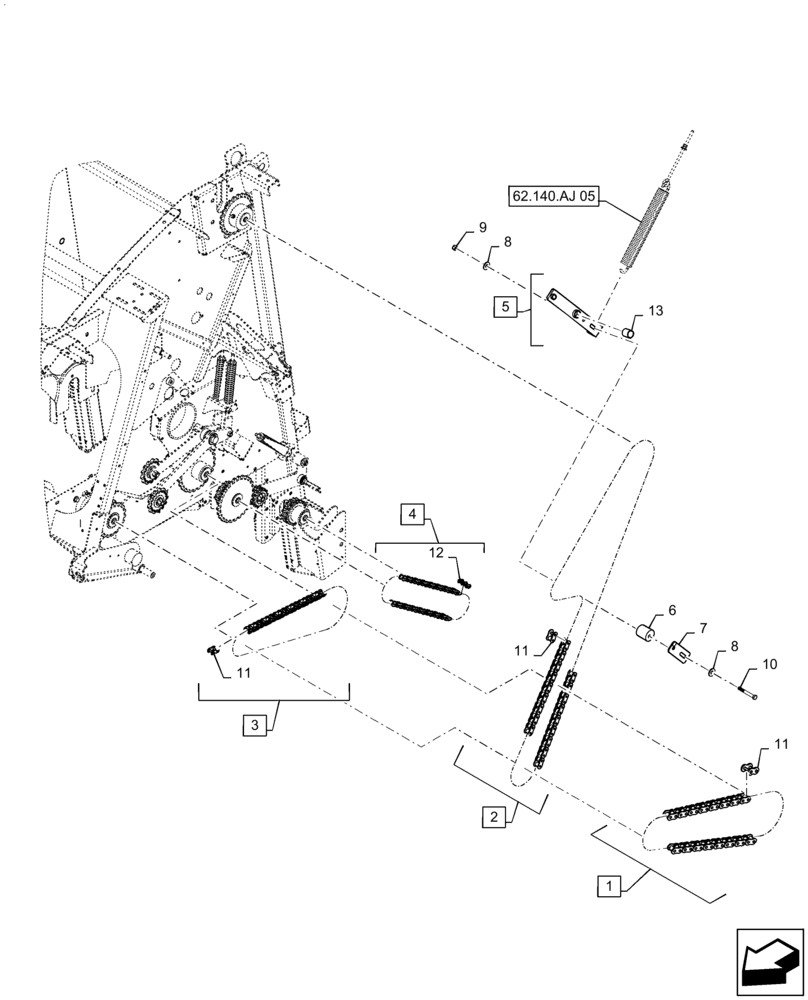

Запчасти Case IH RB455 (62.140.AI[03]) - DRIVE CHAIN, LH, OVERSHOT FEEDER (62) - PRESSING - BALE FORMATION

1

9804061

CHAIN,80, 84 Links x 25.4mm = 2133.6mm

Incl 11

1шт.

2

86520083

CHAIN,RC80, 144 Total Pitches

Incl 11

1шт.

3

87021804

CHAIN,Roller, 68 Links x 25.4mm = 1727.2mm

Incl 11

1шт.

4

84597734

CHAIN,60H-2, 69 Links x 19.05mm = 1314.45mm L

RC60 Double Strand, 69 Pitches, Incl 12, 14

1шт.

5

84262617

ARM

Idler, Incl 13, Serial Range: -YFN188618

1шт.

5

47748078

ARM

Idler, Incl 13, Start Serial: YFN188619

1шт.

6

84271552

IDLER,50.8mm OD x 56mm L

2шт.

7

84266904

PLATE

1шт.

8

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

3шт.

9

100038

NUT,M12 x 1.75, Cl 8

2шт.

10

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

2шт.

11

84356440

LINK,25.4mm Pitch

3шт.

12

84605997

LINK,RC60H-2, 19.1mm Pitch

1шт.

13

84019797

SLEEVE,25mm ID x 28mm OD x 25mm L

1шт.

14

84605986

OFFSET LINK,RC60H-2, 19.1mm Pitch

1шт.
