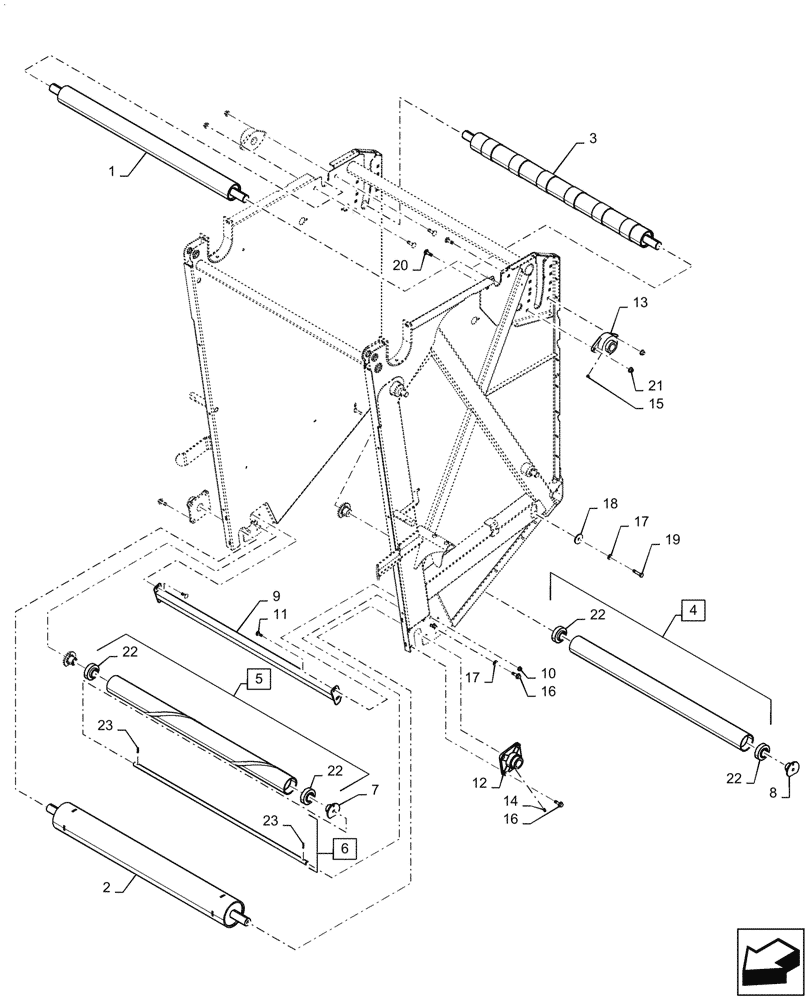

Запчасти Case IH RB455 (62.140.AC[12]) - TAILGATE, ROLL, CHOP AND DRY HAY ,YGN193203 AND AFTER (62) - PRESSING - BALE FORMATION

1

84561410

ROLL

Upper

1шт.

2

47965028

ROLL

Nose

1шт.

3

47450935

ROLL

Rubber Guide

1шт.

4

84600572

ROLL

Lower, Incl 22

1шт.

5

47670880

ROLL

Tailgate Chop, Incl 22

1шт.

used on Chop Roll Balers

1шт.

6

47452964

SHAFT

Tailgate Chop, Incl 23

1шт.

used on Chop Roll Balers

1шт.

7

87023400

SUPPORT

2шт.

used on Chop Roll Balers

1шт.

8

86516321

SUPPORT

2шт.

9

47973458

SCRAPER

Angle

1шт.

used on Dry Hay Balers

1шт.

10

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

used on Dry Hay Balers

1шт.

11

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

used on Dry Hay Balers

1шт.

12

84405459

BALL BEARING,40mm ID

2шт.

13

47538078

BEARING ASSY,40mm ID x 60.3mm H

4шт.

14

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

15

56513

PLUG,Hex Soc, 1/8" - 27 NPT

4шт.

16

9670288

BOLT,Hex, M12 x 35mm, Cl 8.8

8шт.

17

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

18

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

19

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

20

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

8шт.

21

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

22

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

4шт.

23

130045

PIN,5mm OD x 26mm L, Slotted

2шт.
