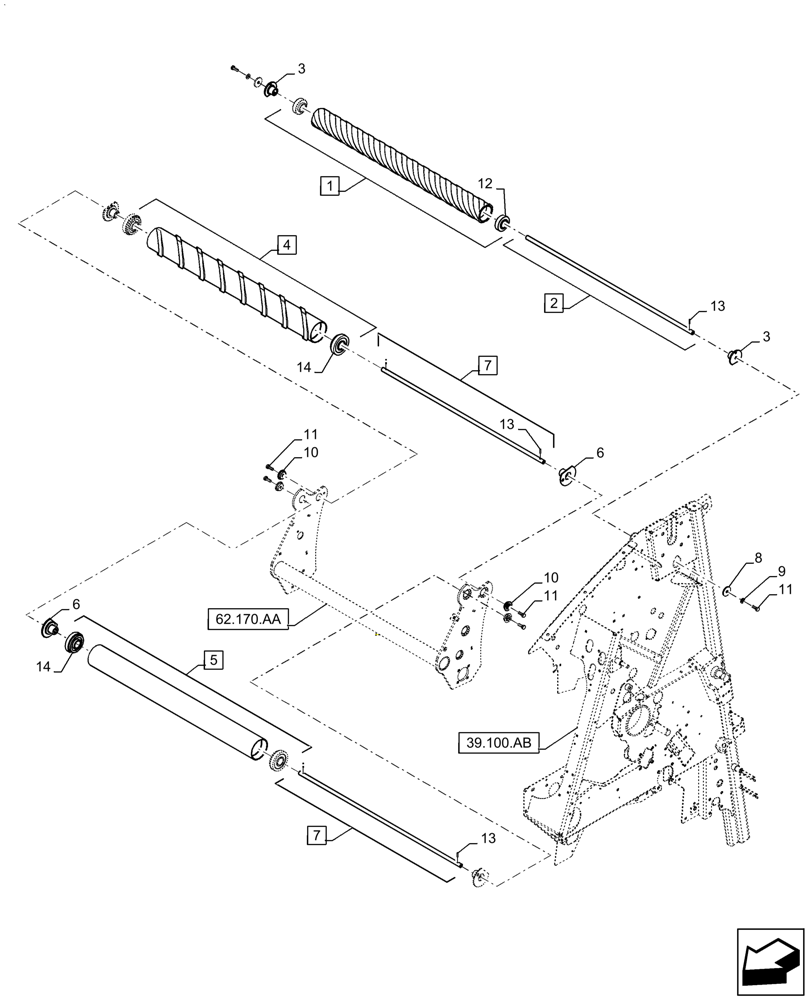

Запчасти Case IH RB455 (62.140.AC[08]) - LOOPED FOLLOWER ROLL, BACKWRAP ROLL ,YGN193203 AND AFTER (62) - PRESSING - BALE FORMATION

1

84600591

ROLL

Backwrap, Rubber, Incl 12

1шт.

2

9823371

SHAFT

Incl 13

1шт.

3

86521602

SUPPORT

2шт.

4

47974946

ROLL

Chop, Loop Follower, Incl 14

1шт.

5

47986356

ROLL

Smooth Follower, Incl 14

1шт.

6

47962843

SUPPORT

4шт.

7

9823372

SHAFT,1135mm L

Incl 13

2шт.

8

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

9

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

10

87398962

HUB,12.5mm ID x 47.42mm OD x 13.2mm L

4шт.

11

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

12

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

6шт.

13

130045

PIN,5mm OD x 26mm L, Slotted

3шт.

14

47935418

BEARING HOUSING

Incl 12

4шт.
