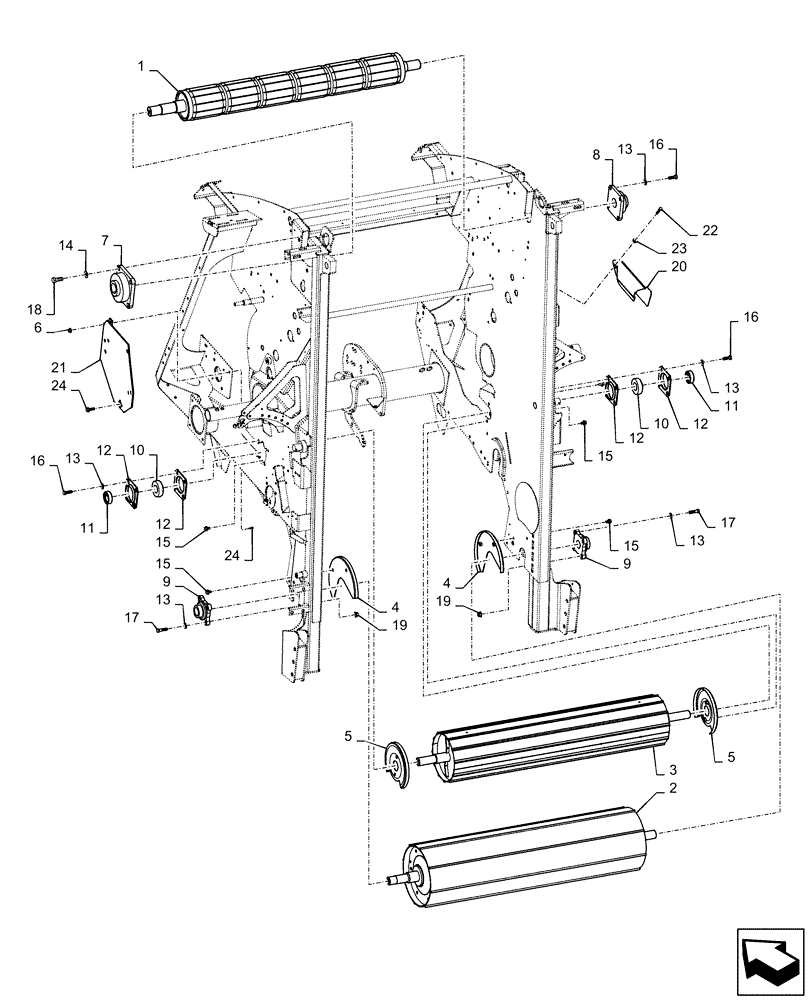

Запчасти Case IH RB455 (62.140.AC[06]) - FRAME ROLLS, UNDERSHOT ROTOR (62) - PRESSING - BALE FORMATION

1

84423609

ROLL

Drive

1шт.

2

86610088

ROLLER

Floor

1шт.

3

84471018

ROLL,254mm OD x 1475mm L

Fixed

1шт.

4

87664059

DISK

2шт.

5

47536123

SHIELD

2шт.

6

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

7

86590752

BEARING ASSY

1шт.

8

86609558

BEARING ASSY,45mm ID

1шт.

9

86590753

BEARING ASSY

2шт.

10

52443

BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W

2шт.

11

52444

COLLAR,38.2mm ID x 60.33mm OD x 18.3mm Thk

2шт.

12

86974037

FLANGE

2шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

20шт.

14

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

15

86531147

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

8шт.

16

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

12шт.

17

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

8шт.

18

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

4шт.

19

9804279

FLANGE NUT,Hex, M12, Cl 8

4шт.

20

47637045

SHIELD

1шт.

21

47536134

PLATE

1шт.

22

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

24

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.
