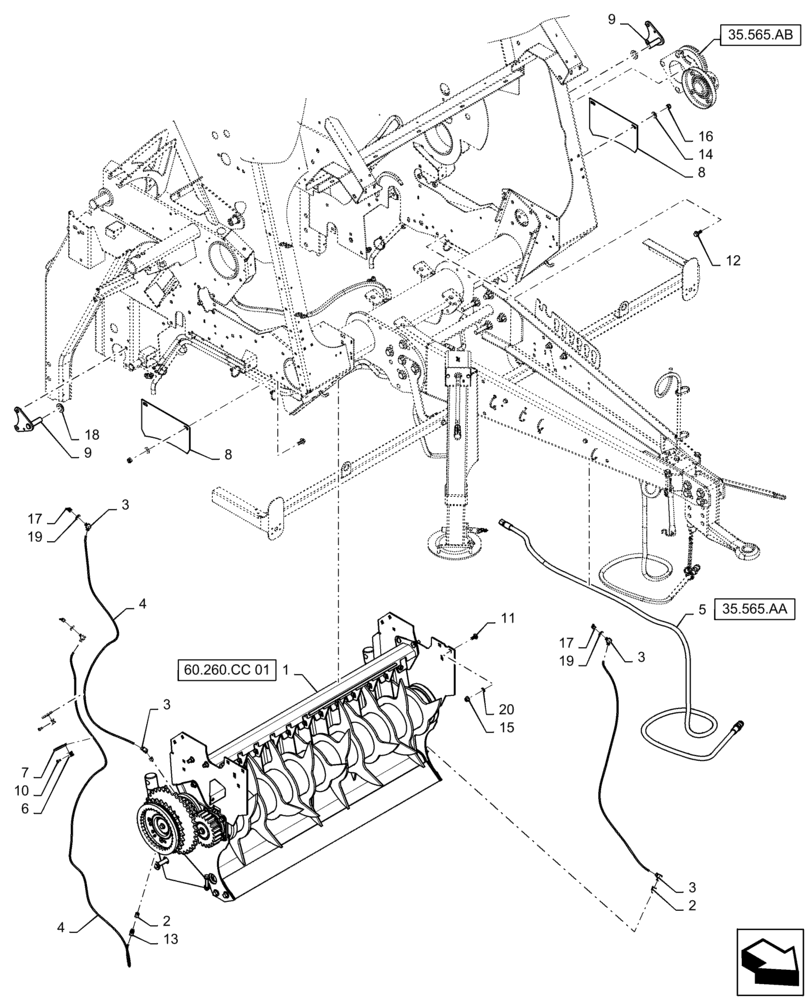

Запчасти Case IH RB455 (60.260.CC[05]) - VAR - 726914 - ROTOR FEEDER MOUNTING, DROP FLOOR (60) - PRODUCT FEEDING

1

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

2

86580291

ADAPTER,1/8" - 27 x 1/4" - 28

4шт.

3

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

6шт.

4

87014413

TUBE,4.80 mm OD x 1850 mm L

1шт.

Cut to Length Required

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

6

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

2шт.

7

86566989

CABLE TIE,208mm L

4шт.

8

84385577

FLAP

Rubber

2шт.

9

84425466

PLATE

2шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

11

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

10шт.

12

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

13

11787

FITTING,3/8"-24 Fem x 1/8" NPT

2шт.

14

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

15

9804278

FLANGE NUT,M10 x 1.5, Cl 8

10шт.

16

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

17

80280397

LUBE NIPPLE,45 Degree, Female 1/8" NPTF

4шт.

18

140021

WASHER,22mm ID x 37mm OD x 3mm Thk

2шт.

19

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.
