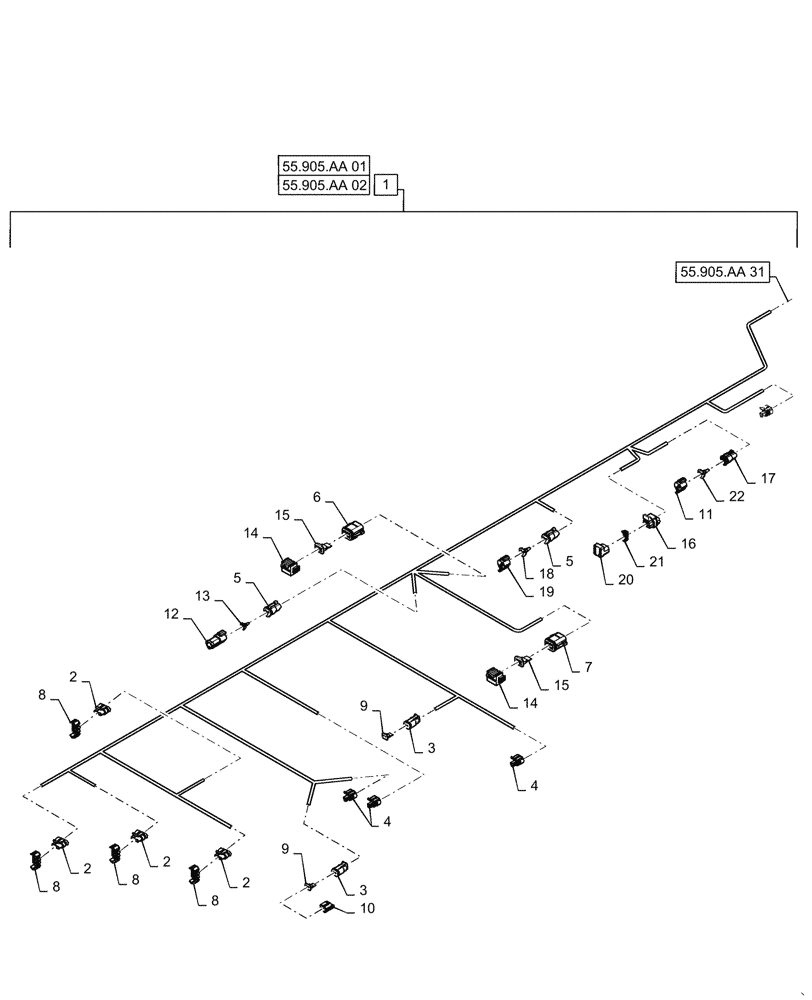

Запчасти Case IH RB455 (55.905.AA[30]) - VAR - 726967, 726969 - WIRE HARNESS, ISOBUS, YGN190460 AND AFTER (55) - ELECTRICAL SYSTEMS

1

47938509

WIRE HARNESS

ISOBUS, YGN190461 and After

1шт.

Incl Figs. 55.905.AA 30, 31, 32

1шт.

2

87688716

ELEC CONNECTOR,Female, 3 Cavities

4шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

1шт.

4

87418311

ELEC CONNECTOR,Female, 3 Cavities

3шт.

5

87695580

ELEC CONNECTOR,Female, 3 Pole

2шт.

6

87700325

ELEC CONNECTOR,Female, 8 Cavities

1шт.

7

87700327

ELEC CONNECTOR,Female, 8 Cavities

1шт.

8

87693732

LOCKING TAB,Wedge Lock

1шт.

9

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

10

84391159

WIRE CONNECTOR

1шт.

11

84391165

HOUSING,Male, 3 Pins

2шт.

12

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

13

84147090

LOCKING TAB,Wedge Lock

1шт.

14

84391168

CAP

1шт.

15

84806312

LOCKING TAB,Wedge Lock

1шт.

16

87694714

ELEC CONNECTOR,Female, 6 Cavities

1шт.

17

47486969

ELEC CONNECTOR,Female 3 Cavities, Red

1шт.

18

84074639

LOCKING TAB,Wedge Lock

1шт.

19

84277224

LOCKING TAB,Wedge Lock

1шт.

20

87601142

ELEC CONNECTOR,Female, 6 Cavities

1шт.

21

87694719

LOCKING TAB,Wedge Lock

1шт.
