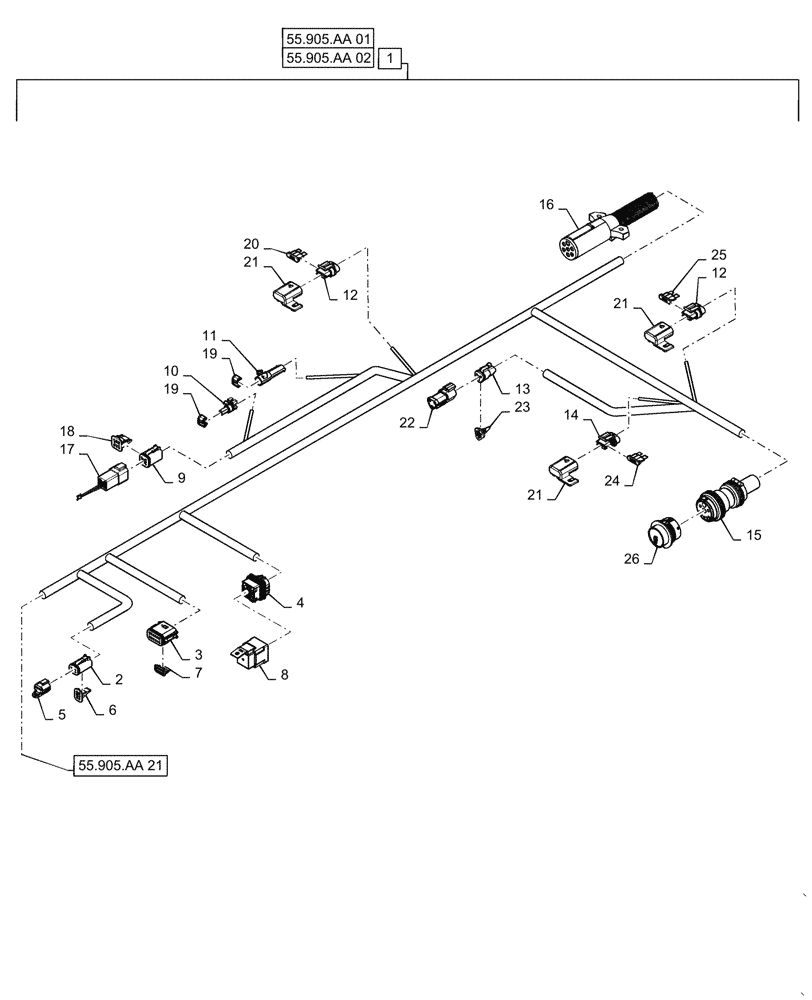

Запчасти Case IH RB455 (55.905.AA[22]) - VAR - 726967, 726969 - WIRE HARNESS, ISOBUS, BETWEEN YFN18619 AND YGN190460 (55) - ELECTRICAL SYSTEMS

1

47655927

WIRE HARNESS

ISOBUS, Between YFN188619 and YGN190460

1шт.

Incl Figs. 55.905.AA 20, 21, 22

1шт.

2

87694153

CONTACT HOUSING,Female, 4 Cavities

1шт.

3

87695550

ELEC CONNECTOR,Female, 12 Cavities

1шт.

4

87692853

MULTIPOLE CONNECTOR,Female, 4 Pole

1шт.

5

84391166

WIRE CONNECTOR,Male, 4 Pins

1шт.

6

84074640

LOCKING TAB,Wedge Lock

1шт.

7

87695651

LOCKING TAB,Wedge Lock

1шт.

8

82017871

RELAY,12V, 20A

1шт.

9

87694112

ELEC CONNECTOR,Female, 6 Pole

1шт.

10

87697528

ELEC CONNECTOR,Female, 1 Pole

1шт.

11

87697527

ELEC CONNECTOR,Male, 1 Pole

1шт.

12

87693710

ELEC CONNECTOR,Female 2 Cavities

2шт.

13

87695580

ELEC CONNECTOR,Female, 3 Pole

1шт.

14

47618629

ELEC CONNECTOR,Female, 2 Cavities

1шт.

15

87703855

MULTIPOLE CONNECTOR,Female, 9 Cavities

1шт.

16

84137504

MULTIPOLE CONNECTOR,Female, 7 Pole

Baler to Tractor

1шт.

17

87537164

WIRE HARNESS

ANZ Light Harness Jumper

1шт.

18

87694150

LOCKING TAB,Wedge Lock

1шт.

19

87704919

LOCKING TAB,Wedge Lock

1шт.

20

83933689

FUSE,10A, Red

1шт.

21

87688863

CAP

1шт.

22

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

23

84147090

LOCKING TAB,Wedge Lock

1шт.

24

83932926

FUSE,25A

1шт.

25

87717080

FUSE,15A, Blue

1шт.

26

788614

PROTECTING COVER,2" OD x 1.7" Long

1шт.
