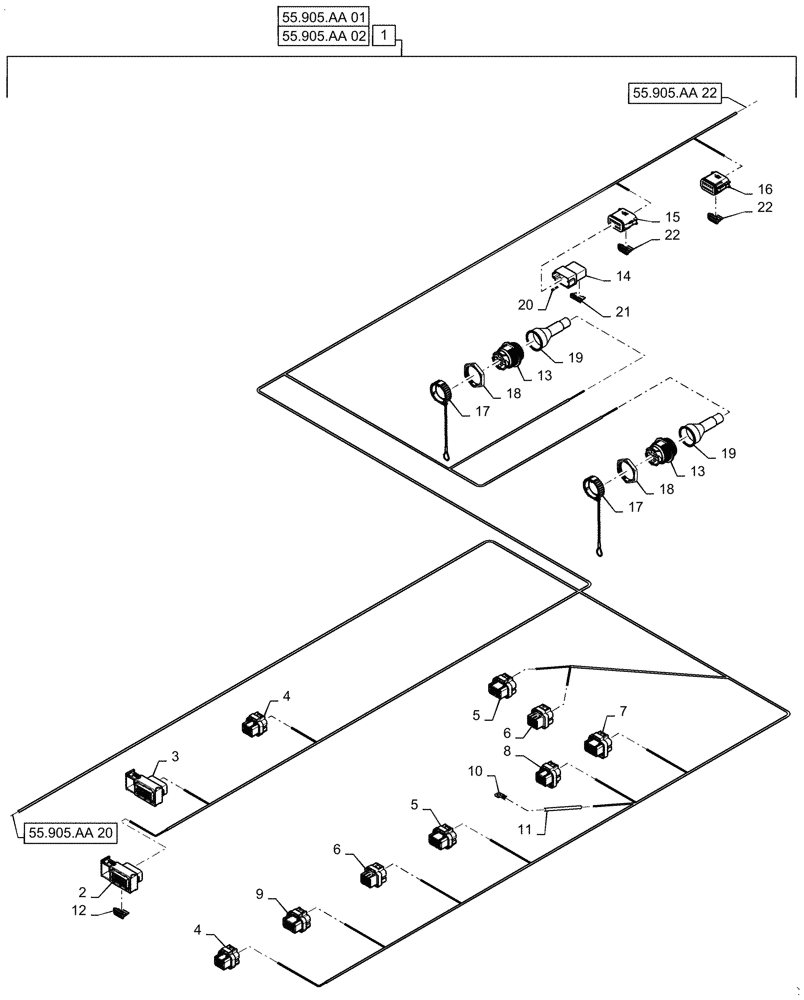

Запчасти Case IH RB455 (55.905.AA[21]) - VAR - 726967, 726969 - WIRE HARNESS, ISOBUS, BETWEEN YFN18619 AND YGN190460 (55) - ELECTRICAL SYSTEMS

1

47655927

WIRE HARNESS

ISOBUS, Between YFN188619 and YGN190460

1шт.

Incl Figs. 55.905.AA 20, 21, 22

1шт.

2

87699386

MULTIPOLE CONNECTOR,Female, 24 Pole

1шт.

3

84155775

MULTIPOLE CONNECTOR,Female, 24 Cavities

1шт.

4

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

1шт.

5

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

2шт.

6

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

2шт.

7

84130760

ELEC CONNECTOR,Female, 34 Cavities

1шт.

8

84130757

ELEC CONNECTOR,Female, 26 Cavities

1шт.

9

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

1шт.

10

47700571

TERMINAL,Ring, M8

1шт.

11

84128198

HEAT SHIELD

1шт.

12

82028431

LOCKING TAB,Wedge Lock

1шт.

13

47618613

MULTIPOLE CONNECTOR,Female, 9 Cavities

2шт.

14

87700152

ELEC CONNECTOR,Female, 12 Cavities

1шт.

15

87696130

ELEC CONNECTOR,Female, 12 Cavities

1шт.

16

87700154

MULTIPOLE CONNECTOR,Female, 12 Cavities

1шт.

17

47618630

DUST CAP,15.5" OD x .487" Wide

1шт.

18

87716303

NUT,1.500" x 18 UNEF

1шт.

19

87718624

BOOT

1шт.

20

84068583

PLUG,12 - 16 Ga, White

1шт.

21

87698541

LOCKING TAB,Wedge Lock, 12-Pin

1шт.

22

87695651

LOCKING TAB,Wedge Lock

1шт.
