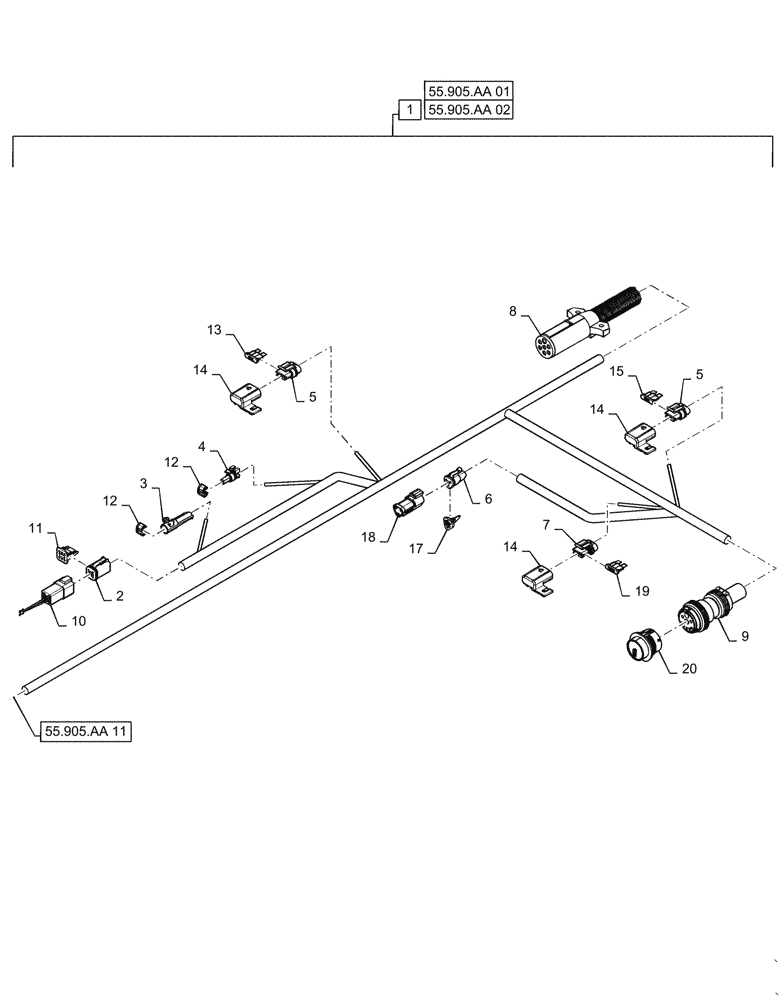

Запчасти Case IH RB455 (55.905.AA[12]) - VAR - 726967, 726969 - WIRE HARNESS, ISOBUS, YFN188618 AND PRIOR (55) - ELECTRICAL SYSTEMS

1

47462454

WIRE HARNESS

ISOBUS, YFN188618 AND PRIOR

1шт.

Includes Figures 55.905.AA 10, 11, 12

1шт.

2

87694112

ELEC CONNECTOR,Female, 6 Pole

Lighting Control

1шт.

3

87697527

ELEC CONNECTOR,Male, 1 Pole

Brake Lights Override

1шт.

4

87697528

ELEC CONNECTOR,Female, 1 Pole

Brake Lights Override

1шт.

5

87693710

ELEC CONNECTOR,Female 2 Cavities

Fuse, Fuel System

1шт.

6

87695580

ELEC CONNECTOR,Female, 3 Pole

Resistor, CAN Termination

1шт.

7

47618629

ELEC CONNECTOR,Female, 2 Cavities

Fuse, Power

1шт.

8

84137504

MULTIPOLE CONNECTOR,Female, 7 Pole

Baler to Tractor

1шт.

9

87703855

MULTIPOLE CONNECTOR,Female, 9 Cavities

Baler to Tractor

1шт.

10

87694150

LOCKING TAB,Wedge Lock

1шт.

11

87537164

WIRE HARNESS

ANZ Light Jumper

1шт.

12

87704919

LOCKING TAB,Wedge Lock

1шт.

13

83933689

FUSE,10A, Red

1шт.

14

87688863

CAP

3шт.

15

87717080

FUSE,15A, Blue

1шт.

17

84147090

LOCKING TAB,Wedge Lock

1шт.

18

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

19

83932926

FUSE,25A

1шт.

20

788614

PROTECTING COVER,2" OD x 1.7" Long

1шт.
