Запчасти Case IH RB455 (55.905.AA[01]) - VAR - 726967, 726969 - ISOBUS, ELECTRIC SYSTEM CONTROL, RH (55) - ELECTRICAL SYSTEMS

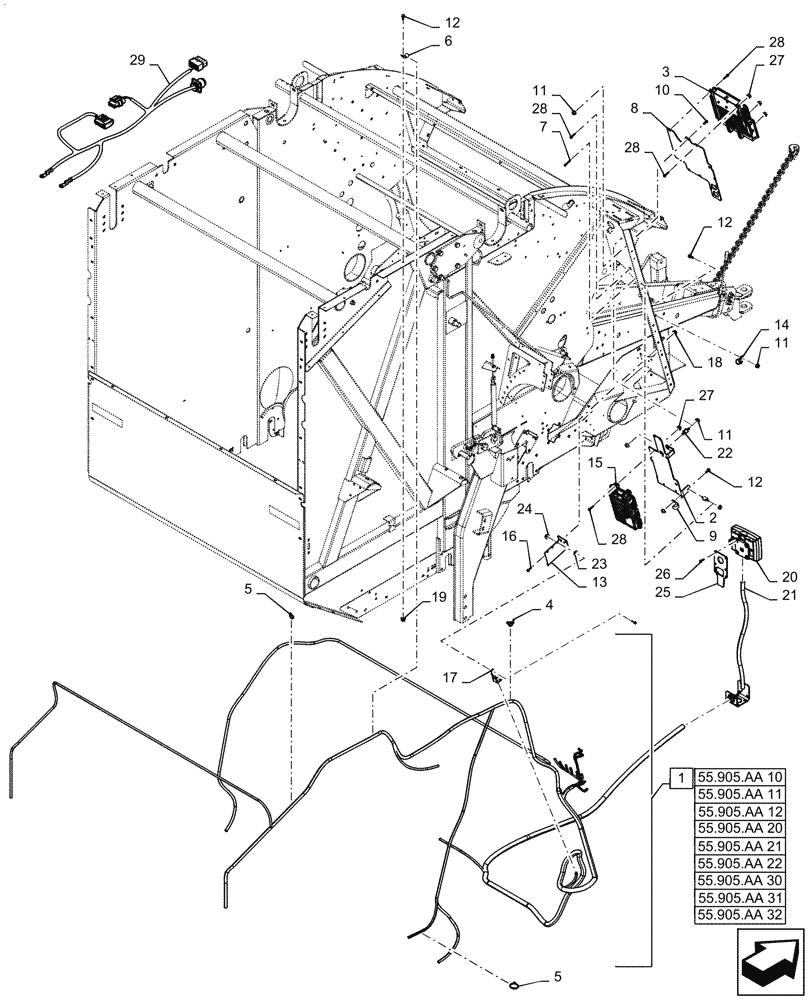

Схема запчастей Case IH RB455 - (55.905.AA[01]) - VAR - 726967, 726969 - ISOBUS, ELECTRIC SYSTEM CONTROL, RH (55) - ELECTRICAL SYSTEMS
55.905.aa 12
17
18
29
10
25
22
19
8
5
1
15
11
12
28
28
12
5
3
28
4
24
23
16
11
14
28
9
27
20
13
12
6
55.905.aa 11
7
21
55.905.aa 30
55.905.aa 31
55.905.aa 32
26
11
2
27
55.905.aa 22
55.905.aa 20
55.905.aa 21
55.905.aa 10

Артикул

Название

Примечание

Количество

1

47462454

WIRE HARNESS

ISOBUS, Incl 17, Serial Range: -YFN188618

1шт.

1

47655927

WIRE HARNESS

ISOBUS, Incl 17, Serial Range: YFN188619-YGN190460

1шт.

1

47938509

WIRE HARNESS

ISOBUS, Incl 17, Start Serial: YGN190461

1шт.

2

47487624

SUPPORT

1шт.

3

47385274

MODULE

ECU

1шт.

Use Electronic Service Tool to Load Software.

1шт.

4

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

12шт.

5

86566989

CABLE TIE,208mm L

21шт.

6

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

7

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

1шт.

8

47565168

SUPPORT

, Serial Range: -YGN190282

1шт.

8

47941032

SUPPORT

, Start Serial: YGN190283

1шт.

9

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

10

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

11

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

10шт.

12

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

13

47428546

BRACKET

1шт.

14

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

15

47398072

MODULE

1шт.

16

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

3шт.

17

82017871

RELAY,12V, 20A

1шт.

18

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

19

86610200

THREADED INSERT,M8 x 1.25

2шт.

20

47585553

DISPLAY

1шт.

Use Electronic Service Tool to Load Software.

1шт.

20

47585553R

REMAN-ELECT MONITOR

Use Electronic Service Tool to Load Software.

1шт.

20

47585553C

CORE-MONITOR

Return Number

1шт.

21

47520895

WIRE HARNESS

Cab, Serial Range: -YGN191557

1шт.

21

47938505

WIRE HARNESS

Cab, Start Serial: YGN191558

1шт.

22

84558714

SHOCK ABSORBER

3шт.

23

319725A1

RUBBER WASHER

1шт.

24

86619800

FLANGE NUT,M6 x 1, Cl 8

1шт.

25

47691332

MOUNTING PLATE

1шт.

26

87742364

SCREW,Pan Torx, M6 x 16mm, Cl 8.8

4шт.

27

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

7шт.

28

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

7шт.

29

47538417

WIRE HARNESS

Battery, Start Serial: YGN191553

1шт.

Выбрано товаров: 37
