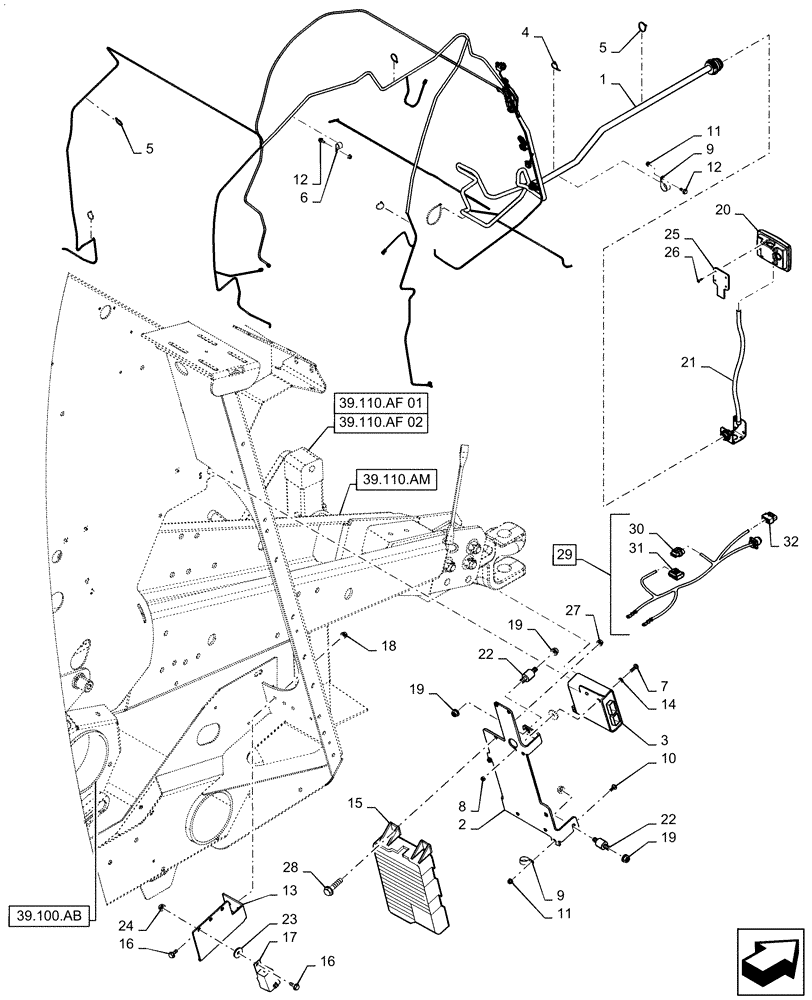

Запчасти Case IH RB455 (55.640.AB[02]) - VAR - 726966 - DELUXE WRAPPER, ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS

1

84279852

WIRE HARNESS

Deluxe Electronics, Serial Range: -YFN188618

1шт.

1

47655925

WIRE HARNESS

Deluxe Electronics, Serial Range: YFN188619-YGN190468

1шт.

1

47938507

WIRE HARNESS

Deluxe Electronics, Start Serial: YGN190469

1шт.

2

47487624

SUPPORT

1шт.

3

84302975

ECU

1шт.

Use Electronic Service Tool (EST) to Load Software.

1шт.

4

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

13шт.

5

86566989

CABLE TIE,208mm L

19шт.

6

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

7

14304221

HEX SOC SCREW,M5 x 16mm, Cl 8.8, Full Thd

2шт.

8

86507065

NUT,M5 x .8, Cl 10

2шт.

9

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

10

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

11

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

9шт.

12

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

13

47428546

BRACKET

1шт.

14

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

15

47398072

MODULE

1шт.

16

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

3шт.

17

82017871

RELAY,12V, 20A

1шт.

18

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

19

145458

SERRATED NUT,5/16"-18 GR 5 ZND

6шт.

20

47439776

CONTROL PANEL

1шт.

21

84566253

WIRE HARNESS

Cab, Serial Range: -YGN191545

1шт.

21

47938513

WIRE HARNESS

Cab, Start Serial: YGN191546

1шт.

22

84558714

SHOCK ABSORBER

3шт.

23

319725A1

RUBBER WASHER

3шт.

24

86619800

FLANGE NUT,M6 x 1, Cl 8

1шт.

25

47691332

MOUNTING PLATE

1шт.

26

87742364

SCREW,Pan Torx, M6 x 16mm, Cl 8.8

4шт.

27

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

28

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

4шт.

29

47538417

WIRE HARNESS

Battery, Incl 30 - 32

1шт.

30

83933689

FUSE,10A, Red

1шт.

31

84157159

FUSE,40A, Maxi, Orange

1шт.

32

47545581

ROCKER SWITCH

1шт.
