(07.27) - HYDRAULICS CYLINDER, TAILGATE LIFT

Запчасти Case IH RB454 (07.27) - HYDRAULICS CYLINDER, TAILGATE LIFT (07) - HYDRAULIC SYSTEM

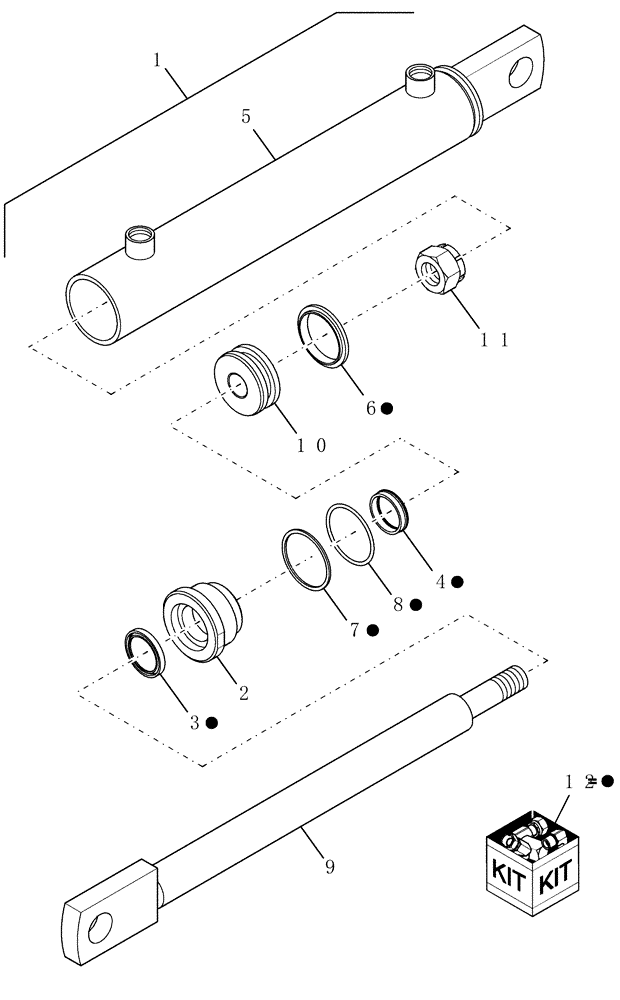

Схема запчастей Case IH RB454 - (07.27) - HYDRAULICS CYLINDER, TAILGATE LIFT (07) - HYDRAULIC SYSTEM
7
3
11
12
10
2
9
4
8
6
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87018026

HYDRAULIC CYLINDER

Tailgate Lift

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

2

87025720

HEAD

Cylinder

1шт.

3

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod Wiper

1шт.

MAINTENANCE PART

1шт.

4

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

1.250" ID x 1.500" OD

1шт.

MAINTENANCE PART

1шт.

5

NSS

NOT SOLD SEPARAT

Cylinder

1шт.

6

86553483

SEAL

3 Piece, Piston

1шт.

MAINTENANCE PART

1шт.

7

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

MAINTENANCE PART

1шт.

8

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

MAINTENANCE PART

1шт.

9

87025722

PISTON ROD

1шт.

10

87025721

PISTON

1шт.

11

280724

LOCK NUT,3/4" - 16

1шт.

12

87025441

SEAL KIT

1шт.

MAINTENANCE PART

1шт.
