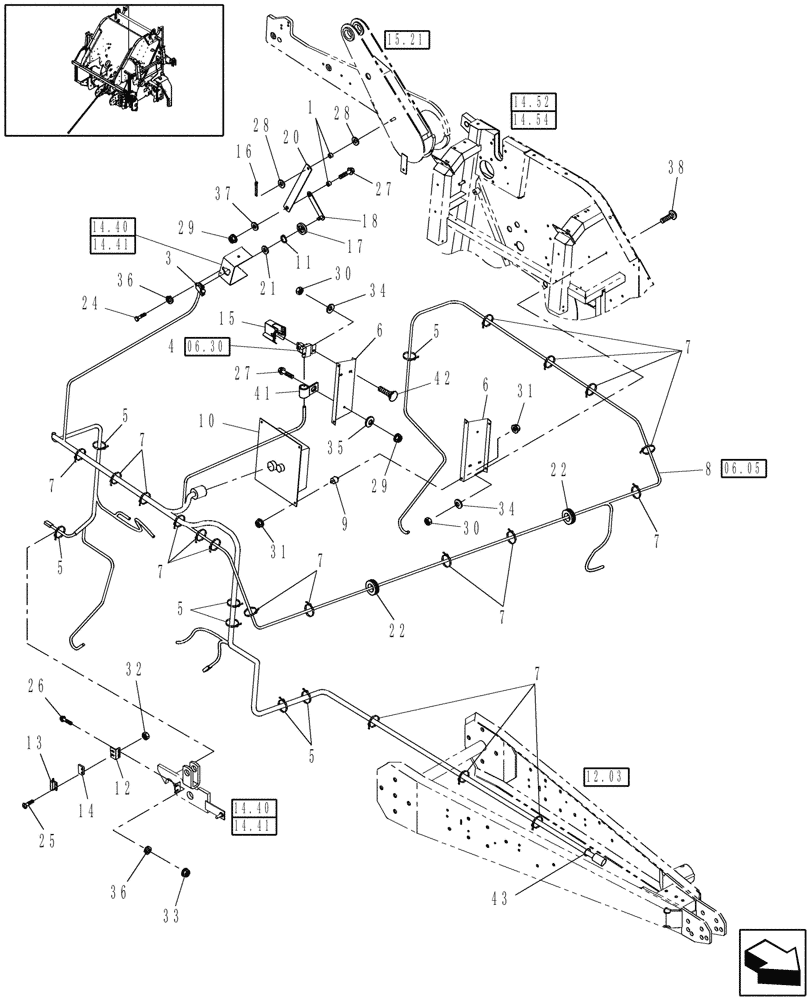

Запчасти Case IH RB454 (06.01) - ELECTRONICS, NET-TWINE, STUFFER-FEEDER (06) - ELECTRICAL SYSTEMS

1

633492

SPACER

.375" ID x .500" OD x 3/16" Lg.

2шт.

1

177822

SPACER,8.33mm ID x 12.7mm OD x 4.32mm Thk

21/64" ID x .500" OD x .170" Lg., Serial Range: -YBN046947

1шт.

NORTH AMERICA

1шт.

1

177822

SPACER,8.33mm ID x 12.7mm OD x 4.32mm Thk

, Serial Range: -724850021

1шт.

EUROPE & R.O.W.

1шт.

1

84313651

BUSHING

, Start Serial: YBN046948

1шт.

NORTH AMERICA

1шт.

1

84313651

BUSHING

, Start Serial: 724850021

1шт.

EUROPE & R.O.W.

1шт.

3

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

Tailgate

1шт.

MAINTENANCE PART

1шт.

4

84226853

KIT

Relay Conversion, Serial Range: -Y9N043084

1шт.

MAINTENANCE PART

1шт.

4

82017871

RELAY,12V, 20A

, Start Serial: Y9N043085

1шт.

MAINTENANCE PART

1шт.

5

529070

CABLE TIE,368.3mm L

CABLE STRAP

7шт.

6

86618546

SUPPORT

2шт.

7

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

18шт.

8

86622152

WIRE HARNESS

Main, Serial Range: -Y9N043084

1шт.

8

84214838

HARNESS

WIRE, Main, Start Serial: Y9N043085

1шт.

9

264795

ELECTRIC INSULATION

4шт.

10

86976107

ECU

Includes: Ref. 39

1шт.

10

87035280R

REMAN ELECT CONTROL

REMAN-MONITOR RB454, Reman For New P/N 86976107

1шт.

10

87035280C

CORE-ELECTRONIC CONT

Return Number

1шт.

11

100-3437

SNAP RING,#37, Ext

1шт.

12

86611813

ANGLE

1шт.

13

86594422

SENSOR

1шт.

MAINTENANCE PART

1шт.

14

86624468

SPACER,1.65" L x 5/16” Thk

1шт.

15

9612631

COVER

1шт.

16

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

17

86643172

ASSEMBLY

Hub, Includes: Ref. 3 & 4, Serial Range: -YBN046947

1шт.

NORTH AMERICA

1шт.

17

86643172

ASSEMBLY

, Serial Range: -724850020

1шт.

EUROPE & R.O.W.

1шт.

17

84308004

HUB

, Start Serial: YBN046948

1шт.

Components are N.S.S.

1шт.

NORTH AMERICA

1шт.

17

84308004

HUB

, Start Serial: 724850021

1шт.

Components are N.S.S.

1шт.

EUROPE & R.O.W.

1шт.

18

86635110

ARM

, Serial Range: -YBN046947

1шт.

NORTH AMERICA

1шт.

18

86635110

ARM

, Serial Range: -724850020

1шт.

EUROPE & R.O.W.

1шт.

18

84319036

ARM

, Start Serial: YBN046948

1шт.

NORTH AMERICA

1шт.

18

84319036

ARM

, Start Serial: 724850021

1шт.

EUROPE & R.O.W.

1шт.

20

9822544

BAR

1шт.

21

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

Urethane

1шт.

22

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

1-3/4" OD x 1" ID

2шт.

24

412255

BOLT,Hex, M4 x 20mm, Cl 8.8

2шт.

25

86900322

SCREW,Phillips Drive, Truss HD, #10 - 24 x 1-1/4", SST

Truss Hd, Stainless Steel, #10-24 x 1-1/4"

2шт.

26

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.

27

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

28

495-21044

WASHER,3/8"

8шт.

29

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

30

825-1406

NUT,M6, Cl 8

6шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

32

86900323

NUT,#10 - 24

Lock, Stainless Steel, #10-24

2шт.

33

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

34

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

35

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

36

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

37

495-21038

WASHER,5/16"

1шт.

38

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

4шт.

39

86529089

RELAY

1шт.

Not Illustrated

1шт.

MAINTENANCE PART

1шт.

41

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

42

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

2шт.

43

792026

LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk

Split, Int, 1.00"

1шт.

44

84137881

STRAP,7.6mm W x 760mm L - Black

2шт.
