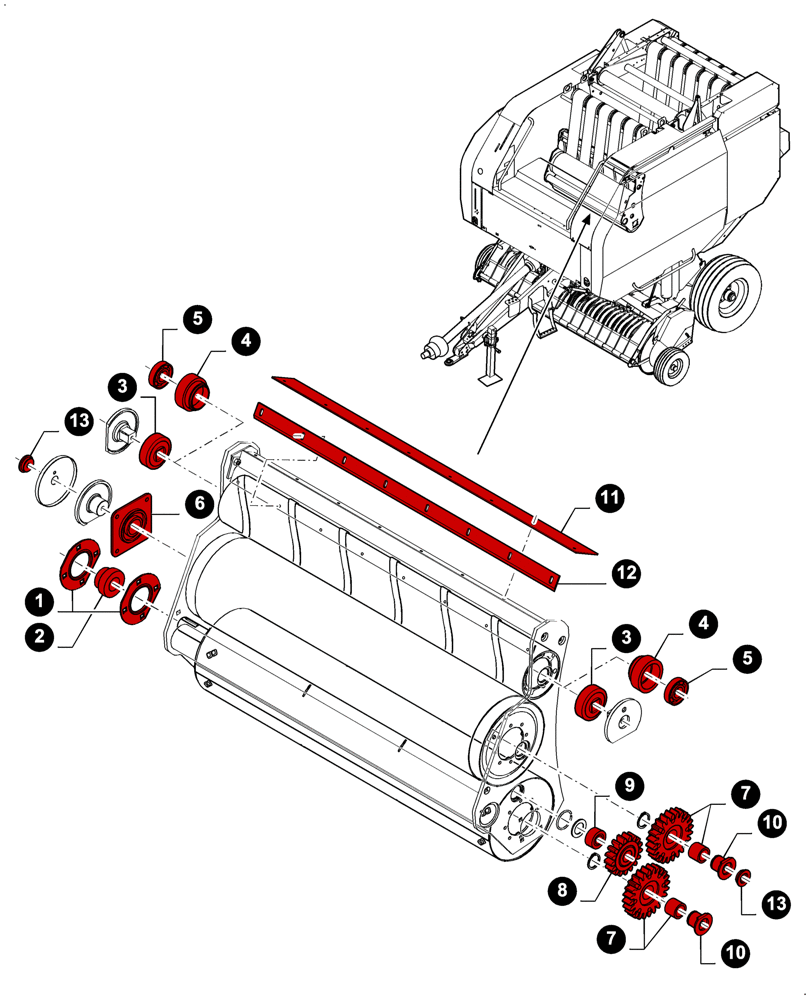

Запчасти Case IH RB454 (00.00RB217) - MAINTENANCE PARTS, PIVOT SLEDGE ROLLS (00) - GENERAL

1

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

RH, Sledge pivot roll

2шт.

2

412441

ROLLER BEARING,40mm ID x 80mm OD x 21mm W, Round Bore

& collar, RH, Pivot roll

1шт.

3

9848489

BEARING ASSY,73 mm ID x 132.1976 mm OD x 38.10 mm, Round Bore

Sledge follower roll, Smooth

2шт.

4

86553396

BEARING ASSY,30.23mm ID x 90mm OD x 30.2mm W, SQUARE BORE

Sledge follower roll, Loop, (5)

2шт.

5

86548282

BALL BEARING,29.41mm ID x 90mm OD x 30.2mm W, Square Bore

2шт.

6

86636892

FLANGE

RH, Sledge stripper roll

1шт.

BEARING & HOUSING ARE SELECT-FIT. BEARING IS NSS

1шт.

7

86614686

GEAR

Roll, 24T, LH, Sledge stripper & pivot rolls

2шт.

BEARING & GEAR ARE SELECT-FIT. BEARING IS NSS

1шт.

8

9806931

IDLER GEAR,17T

17T, Sledge roll drive, (9)

1шт.

9

9808112

BALL BEARING,34.99mm ID x 71.88mm OD x 25mm W

1шт.

10

9803325

SUPPORT

LH, Sledge stripper & pivot rolls (Dimple roll)

2шт.

11

87385929

RUBBER STRIP,1140mm L x 112mm W x 7.5mm Thk

1140 x 89

1шт.

12

9845575

SCRAPER BLADE

Silage/High moisture

1шт.

12

86626880

SCRAPER BLADE

1шт.

13

87398962

HUB,12.5mm ID x 47.42mm OD x 13.2mm L

Sledge stripper roll

2шт.
