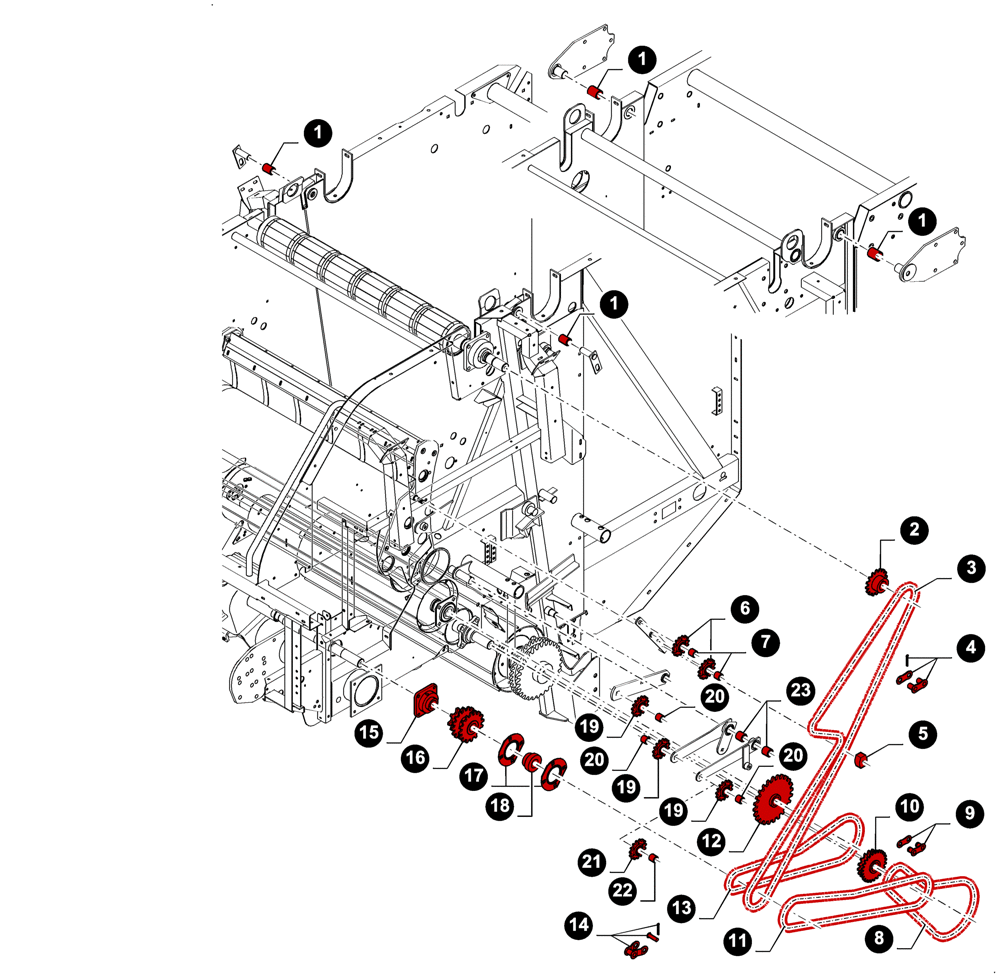

Запчасти Case IH RB454 (00.00RB215) - MAINTENANCE PARTS, MAIN DRIVE LH (00) - GENERAL

1

26306

DRIVE BUSHING,25.47mm ID x 31.82mm OD x 31.8mm L

2шт.

FOR RB454 ONLY

1шт.

1

86514470

BUSHING,35.13mm ID x 41.38mm OD x 50.04mm L

2шт.

FOR RB464 ONLY

1шт.

2

86637269

DRIVEN SPROCKET,RC80, 22T

22T, Apron drive

1шт.

3

86545866

CHAIN,80, 144 Links x 25.4mm = 3657.6mm

RC80, HD, Chrome, 1"-pitch, 144 Pitches, Apron drive, (4)

1шт.

FOR RB454 ONLY

1шт.

3

9804060

CHAIN,80, 158 Links x 25.4mm = 4013.2mm

RC80, 1"-pitch, 158 Pitches, Apron drive, (4)

1шт.

EUROPE & R.O.W.

1шт.

FOR RB464 ONLY

1шт.

3

86537440

CHAIN,80-C, 158 Links x 25.4mm = 4013.2mm

RC80, 1"-pitch, 158 Pitches, Apron drive, (4)

1шт.

NORTH AMERICA

1шт.

FOR RB464 ONLY

1шт.

4

86537459

LINK,25.4mm Pitch

Roller, RC 80, Cotter Style, Chrome

1шт.

FOR RB454 ONLY

1шт.

4

9620569

CONNECTING LINK,RC80, 1 Link x 25.4mm = 25.4mm L

RC 80

1шт.

EUROPE & R.O.W.

1шт.

FOR RB464 ONLY

1шт.

4

86537459

LINK,25.4mm Pitch

Roller, RC 80, Cotter Style, Chrome

1шт.

NORTH AMERICA

1шт.

FOR RB464 ONLY

1шт.

5

86584050

IDLER

Plastic, Apron drive

1шт.

FOR RB464 ONLY

1шт.

5

87030996

IDLER

Plastic, Apron drive

1шт.

FOR RB464 ONLY

1шт.

6

NS

NOT SERVICED

SPROCKET 13T, PN. 87050058, Plastic, Production only, Apron drive, (7)

2шт.

Steel service sprocket (66614) & plastic production sprocket ( 87050058) are interchangable

1шт.

6

66614

SPROCKET,RC80, 13T

13T, Steel, Service only, Apron drive, (7)

2шт.

Steel service sprocket (66614) & plastic production sprocket ( 87050058) are interchangable

1шт.

7

144819C91

BEARING

1шт.

FOR RB454 ONLY

1шт.

7

66553

BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W

1шт.

FOR RB464 ONLY

1шт.

8

86549269

CHAIN,RC80, 64 Links x 25.4mm = 1625.6mm

Roller, RC 80, 64 pitches, (9)

1шт.

9

86977432

LINK,31.75mm Pitch

RC 100, Offset

1шт.

ROTOR

1шт.

9

9620569

CONNECTING LINK,RC80, 1 Link x 25.4mm = 25.4mm L

RC 80K

1шт.

10

86610110

SPROCKET

Double, 17T/RC 80, 20T/RC 100, Starter roll

1шт.

ROTOR

1шт.

10

86613346

SPROCKET

Double, 25T-17T, RC 80, Starter roll

1шт.

STUFFER FEEDER

1шт.

11

86562829

CHAIN,100, 67 Links x 31.75mm = 2127.25mm

Roller, RC 100, 67 pitches, (9, 14)

1шт.

ROTOR

1шт.

11

9804061

CHAIN,80, 84 Links x 25.4mm = 2133.6mm

Roller, RC 80, 84 pitches, (9)

1шт.

STUFFER FEEDER

1шт.

12

86610108

SPROCKET

25 T, RC 80, Fixed roll

1шт.

13

87021804

CHAIN,Roller, 68 Links x 25.4mm = 1727.2mm

Roller, RC 80, 68 pitches, (9)

1шт.

FOR RB454 ONLY

1шт.

13

86611455

CHAIN,80P, 67 Links x 25.4mm = 1701.8mm

RC 80, 67 Total pitches, (9, 14)

1шт.

ROTOR

1шт.

FOR RB464 ONLY

1шт.

13

87622422

CHAIN (AG),80, 65 Links x 25.4mm = 1651mm

RC 80, 65 Total pitches, (9, 14)

1шт.

STUFFER FEEDER

1шт.

FOR RB464 ONLY

1шт.

14

86595263

LINK,31.75mm Pitch

RC 100

1шт.

ROTOR

1шт.

14

86977428

CONNECTING LINK

RC 80, Offset

1шт.

FOR RB464 ONLY

1шт.

15

86609558

BEARING ASSY,45mm ID

1.772" ID

1шт.

16

86610107

SPROCKET

Triple, 18T/RC 80, 13T/RC 80, 14T/RC 100

1шт.

ROTOR

1шт.

16

86613345

SPROCKET

Triple, 13T-18T-18T, RC 80

1шт.

STUFFER FEEDER

1шт.

17

86548973

FLANGE

2шт.

ROTOR

1шт.

FOR RB464 ONLY

1шт.

17

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

2шт.

ROTOR

1шт.

FOR RB454 ONLY

1шт.

18

412441

ROLLER BEARING,40mm ID x 80mm OD x 21mm W, Round Bore

1шт.

ROTOR

1шт.

19

NS

NOT SERVICED

SPROCKET 13T, PN. 87050058, Plastic, Production only, (20)

3шт.

Steel service sprocket (66614) & plastic production sprocket ( 87050058) are interchangable

1шт.

19

66614

SPROCKET,RC80, 13T

13T, Steel, Service only, (20)

3шт.

Steel service sprocket (66614) & plastic production sprocket ( 87050058) are interchangable

1шт.

20

144819C91

BEARING

1шт.

21

87017554

DRIVEN SPROCKET

12T, (22)

1шт.

ROTOR

1шт.

22

144819C91

BEARING

1шт.

ROTOR

1шт.

23

27639

BUSHING,31.83mm ID x 38.19mm OD x 25.4mm L

Idler tension arm

2шт.
