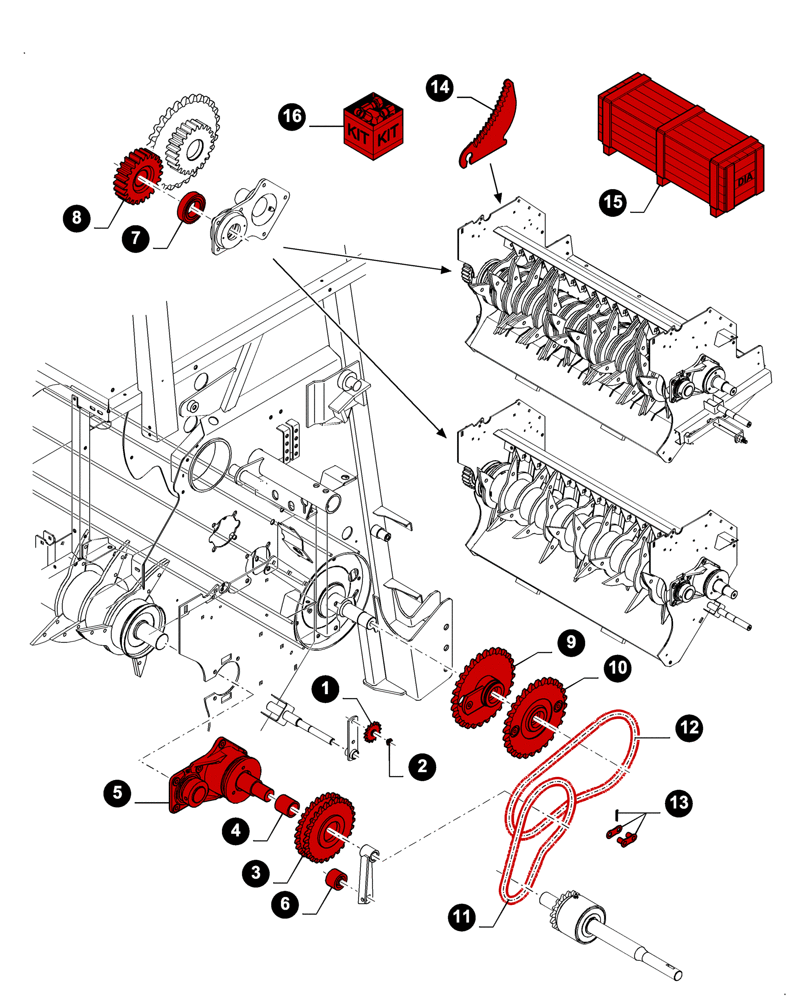

Запчасти Case IH RB454 (00.00RB213) - MAINTENANCE PARTS, ROTOR FEEDER & ROTOR CUTTER (00) - GENERAL

1

86627639

SPROCKET,15T

15T, (2)

1шт.

2

66553

BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W

1шт.

3

86633715

SPROCKET

31T, RC 60, (4)

1шт.

P.I.N. Y9N043084 & PRIOR

1шт.

4

86629476

BEARING ASSY,39mm ID x 68mm OD x 37mm W

Includes seals

1шт.

5

87025601

BEARING ASSY

LH, Bearing is not serviced separately

1шт.

6

86514717

IDLER WHEEL

1шт.

7

330685

BALL BEARING,50mm ID x 90mm OD x 23mm W

1шт.

8

86608236

DRIVEN GEAR

Rotor, 23T

1шт.

9

86616505

SPROCKET

29T, RC 80

1шт.

P.I.N. Y9N043084 & PRIOR

1шт.

9

84244813

DRIVEN SPROCKET

29T, RC 80

1шт.

P.I.N. Y9N043085 & AFTER

1шт.

10

86978871

SPROCKET

39T, RC 60

1шт.

P.I.N. Y9N043084 & PRIOR

1шт.

10

87728115

DRIVEN SPROCKET

39T, RC 60

1шт.

P.I.N. Y9N043085 & AFTER

1шт.

11

86611994

CHAIN,60, 46 Links x 19.05mm = 876.3mm

RC 60, (13)

1шт.

12

84246579

CHAIN,RC60, 69 Links x 19.05mm = 1314.45mm

RC 60

1шт.

P.I.N. Y9N043085 & AFTER

1шт.

12

86611957

CHAIN,RC60, 68 Links x 19.05mm = 1295.4mm

RC 60, 68 Pitches, (13)

1шт.

13

84554742

1шт.

14

87036000

KNIFE

Heat-treated

15шт.

14

87040884

KNIFE

Heat-treated & Hard-faced

15шт.

14

87036001

KNIFE

Blank

15шт.

15

87040985

DIA KIT, HARVESTER

Includes 15 knives PN. 87040884, Heat-treated & Hard-faced

1шт.

16

87389729

REPAIR KIT

Dummy knife

1шт.
