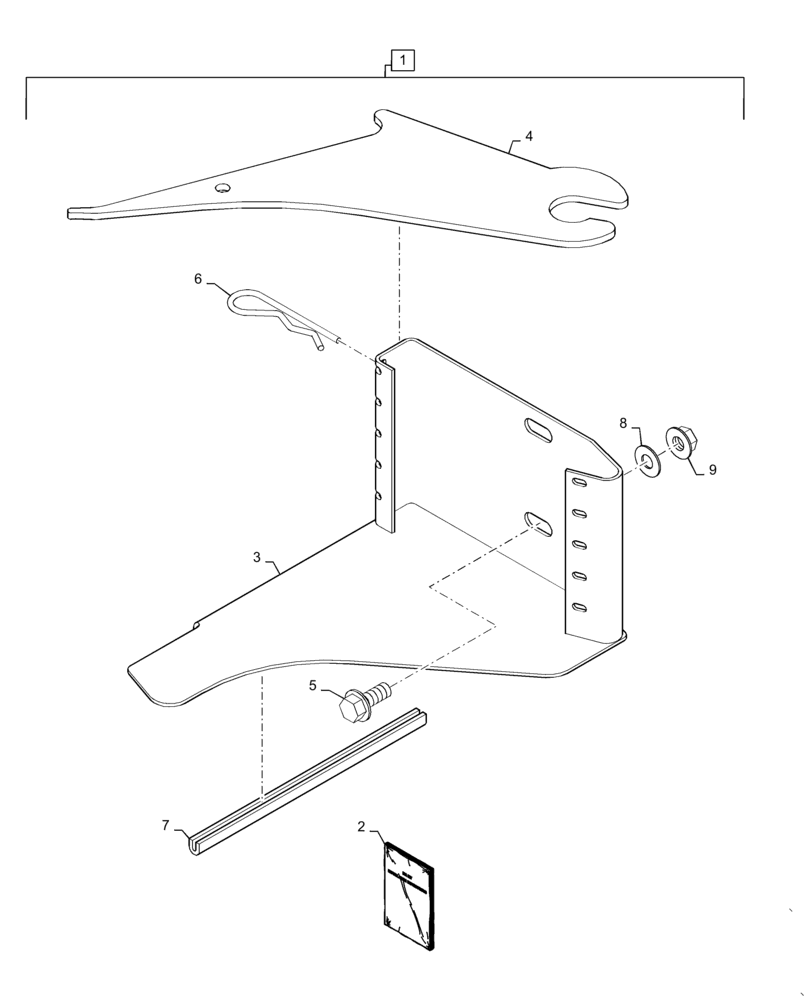

Запчасти Case IH RB454 (18.82) - DIA KIT, DUMMY KNIFE HOLDER (18) - ACCESSORIES

1

47371570

DIA KIT, HARVESTER

Dummy Knife Holder, Incl 2 - 9

1шт.

2

47812490

INSTRUCTION

1шт.

3

86616730

HOLDER

1шт.

4

87036001

KNIFE

Dummy Section

15шт.

5

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

6

86511448

COTTER PIN,0.148" Dia x 3.31" L

2шт.

7

NH291525

EDGE

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

9

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.
