Запчасти Case IH RB454 (18.97) - DIA KIT, SPLITTER VALVE (18) - ACCESSORIES

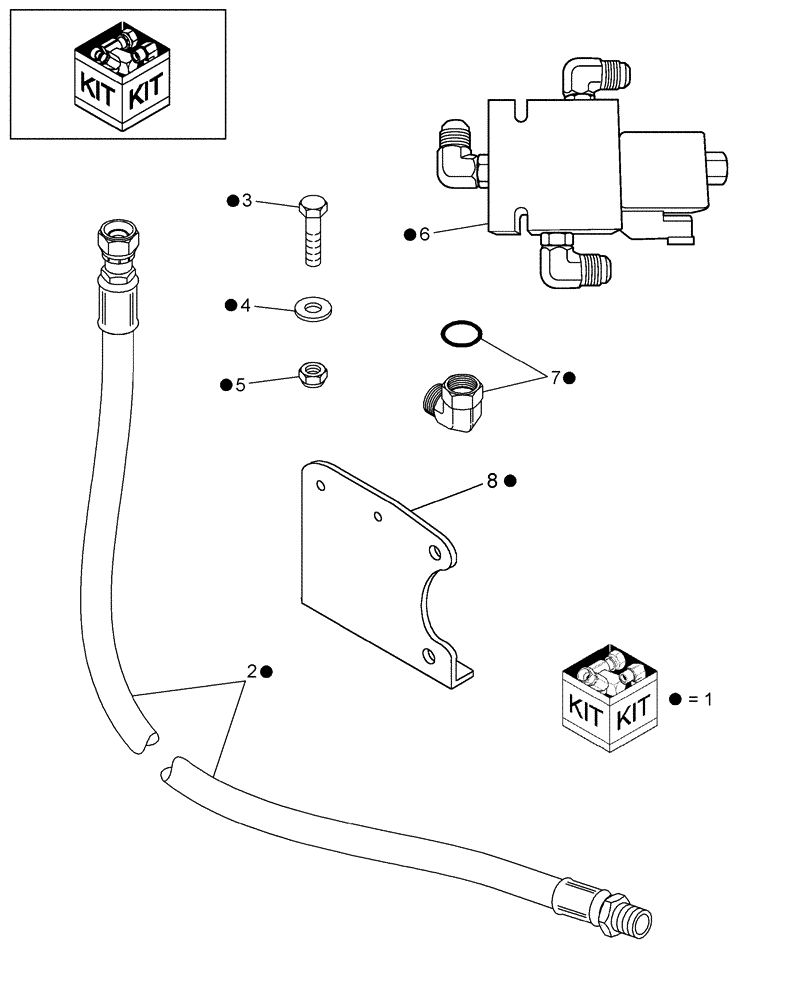

Схема запчастей Case IH RB454 - (18.97) - DIA KIT, SPLITTER VALVE (18) - ACCESSORIES
7
5
4
8
6
2
1
3

Артикул

Название

Примечание

Количество

1

87014799

DIA KIT, HARVESTER

Splitter Valve, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

9600395

FLEXIBLE HOSE,6.35 mm ID x 381.00 mm, SAE 100 R1

4шт.

3

328873

BOLT,Hex, M6 x 1 x 120mm, Cl 8.8, Full Thd

2шт.

4

495-21031

WASHER,1/4"

2шт.

5

832-46406

NUT,M6 x 1, Cl 8

2шт.

6

87016318

VALVE

2шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 9

6шт.

8

87038517

MOUNTING PARTS

Valve

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Not Illustrated

1шт.

Выбрано товаров: 11
