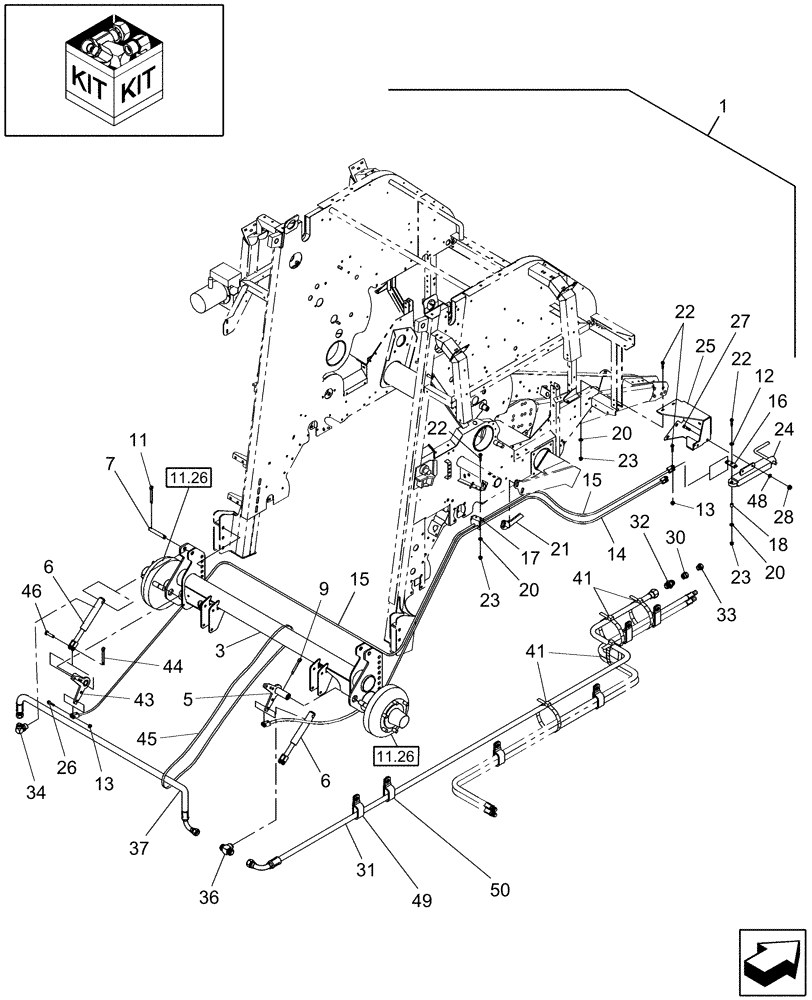

Запчасти Case IH RB454 (18.62) - DIA KIT, HYDRAULIC BRAKE (18) - ACCESSORIES

1

87347903

DIA KIT, HARVESTER

Hydraulic Brake

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

3

87054565

AXLE

Includes: Brake Hubs

1шт.

5

87055651

ARM ASSY.

1шт.

6

87663731

ACTUATOR

1шт.

7

87498333

PIN,19mm OD x 94mm L

2шт.

9

130012

COTTER PIN,M5 x 50

2шт.

11

130011

COTTER PIN,M5 x 40

4шт.

12

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

2шт.

13

86629542

NUT,M8 x 1.25, Cl 8.8

5шт.

14

87020056

CABLE

1шт.

15

87020057

CABLE,3720mm L

1шт.

16

87023508

PLATE

1шт.

17

87023507

SPACER

1шт.

18

141979

SPACER

1/2" OD

1шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

21

87032944

PLATE

1шт.

22

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

11шт.

23

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

24

84274758

HAND BRAKE

1шт.

25

87023506

SUPPORT

1шт.

26

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

27

9804262

BOLT,M10 x 39.2mm, Cl 8.8

2шт.

28

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

30

9839028

HYD CONNECTOR,M18 x 1.5

1шт.

31

86974525

HOSE,7.92mm ID x 5207mm L, SAE 100R1

1шт.

32

395019

HYD CONNECTOR,M18 x 1.5 ORB x M16 x 1.5 ORB

1шт.

33

84078124

HYD CONNECTOR,9/16" - 18 JIC x M16 x 1.5

1шт.

34

9837647

ELBOW,90 Degree - 9/16" - 18 JIC 37 Degree x 3/8" BSPP

90°

1шт.

35

9837622

HYD CONNECTOR,9/16" JIC x 3/8" BSPP

1шт.

36

86513014

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

37

87019827

HOSE,0.38" ID x 79.00", SAE 100R1

1шт.

41

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

1шт.

43

87055646

ARM ASSY.

1шт.

44

130014

LOCK PIN

2шт.

45

84137881

STRAP,7.6mm W x 760mm L - Black

5/16" x 21-1/2"

4шт.

46

12192

PIN

2шт.

48

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

49

620019

CLAMP

Hose, 11/16" x 1-3/8"

1шт.

50

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

3шт.
