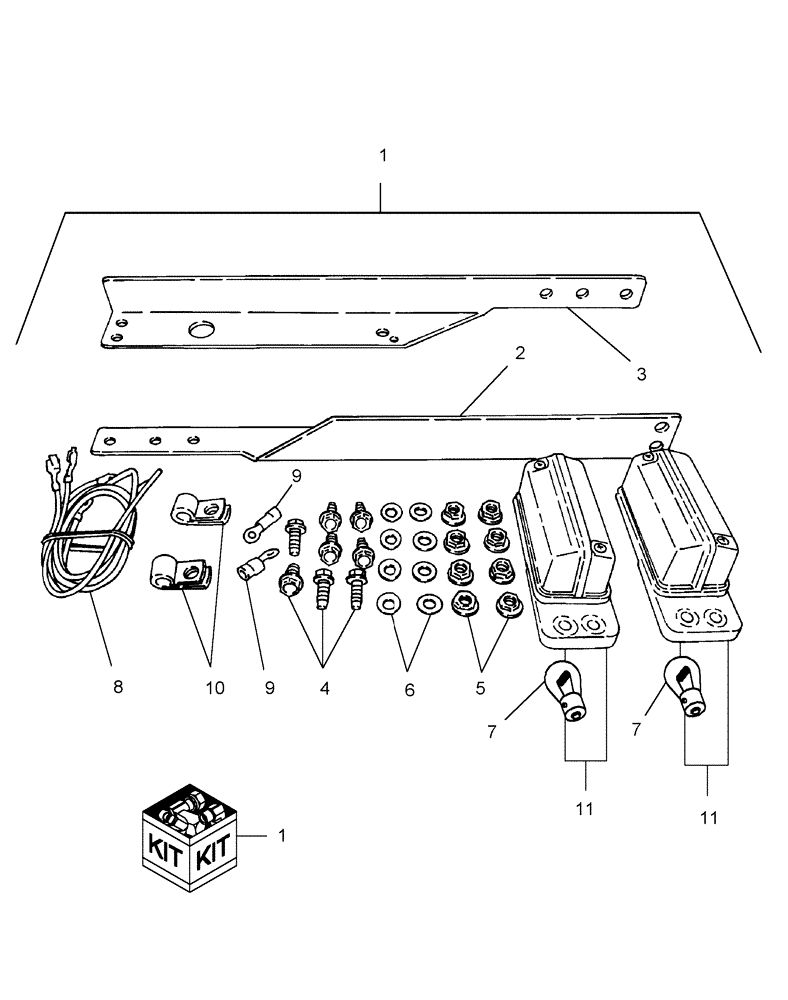

Запчасти Case IH RB454 (18.05) - DIA KIT, MARKER LIGHT KIT, EUROPE & R.O.W. (18) - ACCESSORIES

1

87027307

DIA KIT, HARVESTER

Marker Light, Europe & R.O.W., Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87026608

MOUNTING PARTS

LH

1шт.

3

87026714

MOUNTING PARTS

RH

1шт.

4

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

8шт.

5

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

8шт.

6

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

7

353078

BULB,T8/4, 12V, 4W

2шт.

8

87028063

HARNESS

Wire

2шт.

9

PL

PROCURE LOCALLY

#8 Ring Connector, AMP # 34122

2шт.

10

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

11

449531

POSITION LAMP,Red

Side Marker

2шт.
