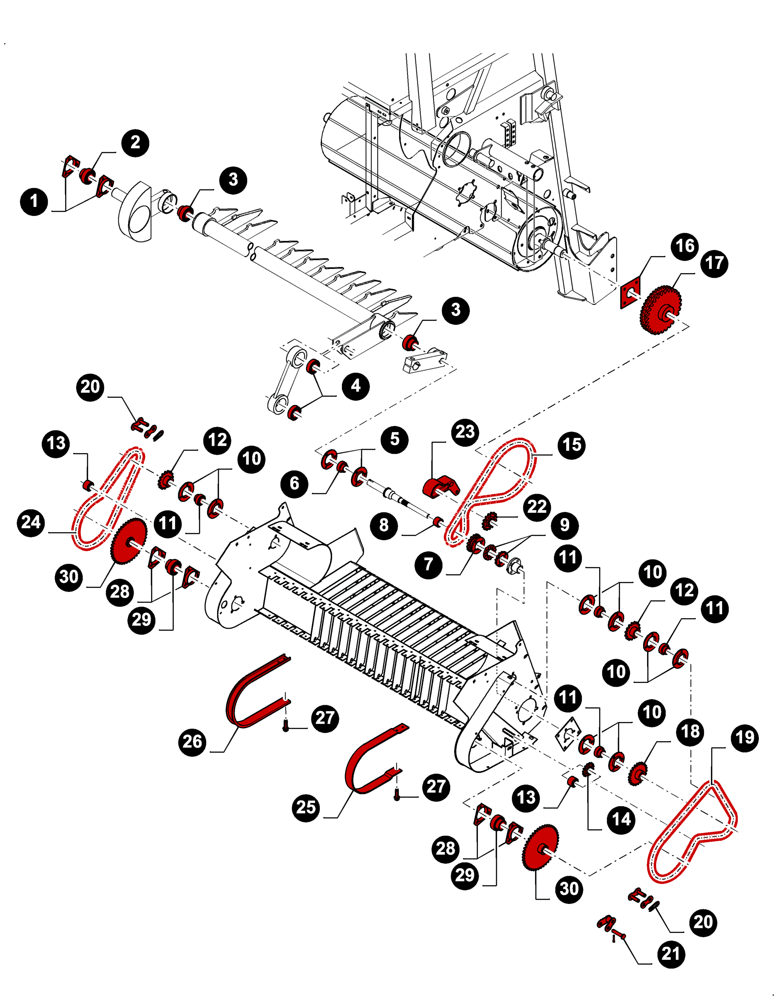

Запчасти Case IH RB454 (00.00RB205) - MAINTENANCE PARTS, 1.5 M WIDE PICK-UP UNIT WITH STUFFER FEEDER (00) - GENERAL

1

87758679

FLANGED BEARING

2шт.

2

617668R92

BEARING ASSY,1.2505" ID x 62 mm OD x 0.9375"

1шт.

3

214366C91

BALL BEARING,25.40mm ID x 52mm OD

7шт.

4

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

2шт.

5

86635012

FLANGE

2шт.

6

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

1шт.

7

86637255

SPROCKET ASSY.

Includes: Bushing (8)

1шт.

7

86624640

HUB

Jaw clutch, Includes: 15T sprocket, (8)

1шт.

8

46962

BUSHING,2" ID x 2.13" OD x 1.25" L

1шт.

9

714379

CLUTCH

Jaw

2шт.

10

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

Bearing

10шт.

11

214366C91

BALL BEARING,25.40mm ID x 52mm OD

5шт.

12

86636650

DRIVEN SPROCKET

17T

2шт.

13

86514717

IDLER WHEEL

Nylon

2шт.

14

165271

DRIVEN SPROCKET

Idler, 15T

1шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

1.5 M WIDE DUAL CAM PICK-UP

1шт.

15

164936

CHAIN

Roller, RC 60, 62 pitches

1шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

1.5 M WIDE DUAL CAM PICK-UP

1шт.

16

86602143

WEAR PLATE

2шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

1.5 M WIDE DUAL CAM PICK-UP

1шт.

17

86626477

SPROCKET,29T / 39T

Double, 29T & 39T

1шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

1.5 M WIDE DUAL CAM PICK-UP

1шт.

18

86637156

DRIVEN SPROCKET

22T

1шт.

19

309046

CHAIN,#50, 96 Links x 15.88mm = 1524mm

Roller, RC 50, 96 pitches, (20, 21)

1шт.

20

25194

CONNECTING LINK

Roller, RC 50, Spring style

1шт.

21

25816

OFFSET LINK

RC 50

1шт.

22

165271

DRIVEN SPROCKET

Idler, 15T

1шт.

23

87346700

ARM

Idler, Start Serial: Y8N038894

1шт.

24

121202

CHAIN

Roller, RC 50, 5/8"-pitch, ASA standard, Riveted type, 79 pitches, (20)

1шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

25

86634554

SUPPORT

End guard

2шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

26

86618417

GUARD

Pick-up

23шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

27

412093

SELF-TAP SCREW

M6 x 1 x 12

105шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

28

578189

FLANGE

4шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

29

121602

BALL BEARING,28.6mm Hex x 72mm OD x 37.7mm W

2шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

30

86637251

DRIVEN SPROCKET

44T

2шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.
