(15.03[1]) - ELECTRIC TWINE WRAP, SHIELDS, NORTH AMERICA

Запчасти Case IH RB454 (15.03[1]) - ELECTRIC TWINE WRAP, SHIELDS, NORTH AMERICA (15) - KNOTTER /WRAPPER

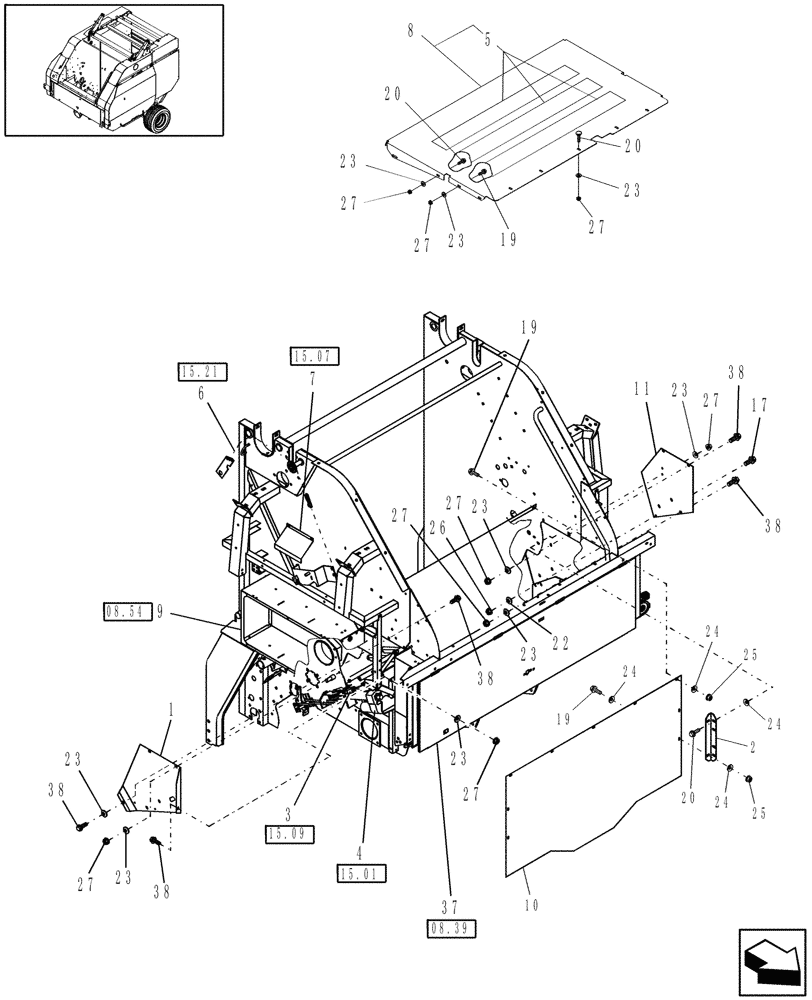

Схема запчастей Case IH RB454 - (15.03[1]) - ELECTRIC TWINE WRAP, SHIELDS, NORTH AMERICA (15) - KNOTTER /WRAPPER
15.21
23
24
24
23
17
1
23
27
27
23
25
7
5
8
20
27
38
38
19
20
26
10
27
24
2
11
23
23
27
19
4
27
20
9
23
27
38
3
27
38
23
19
23
37
6
24
38
25
22
08.54
08.39
15.07
15.09
15.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

87046080

ANGLE

RH

2шт.

3

0C

ORDER COMPONENTS

Electric Twine Counter

1шт.

4

0C

ORDER COMPONENTS

Electric Twine Wrap

1шт.

5

86643977

ANTI-SKID STRIP,4” x 40”, Black

3шт.

6

0C

ORDER COMPONENTS

Bale Size Indicator

1шт.

7

0C

ORDER COMPONENTS

Trip, Electric Twine Wrap

1шт.

8

87017062

FLOOR

1шт.

9

0C

ORDER COMPONENTS

Twine Box

1шт.

10

87041094

SHIELD

Rubber

1шт.

19

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

12шт.

20

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

13шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

24

495-21038

WASHER,5/16"

16шт.

25

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

27

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

17шт.

37

87638744

DOOR

Electric Wrap, North America, Includes: Decals.

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.
