Запчасти Case IH RB454 (15.01) - ELECTRIC TWINE WRAP (15) - KNOTTER /WRAPPER

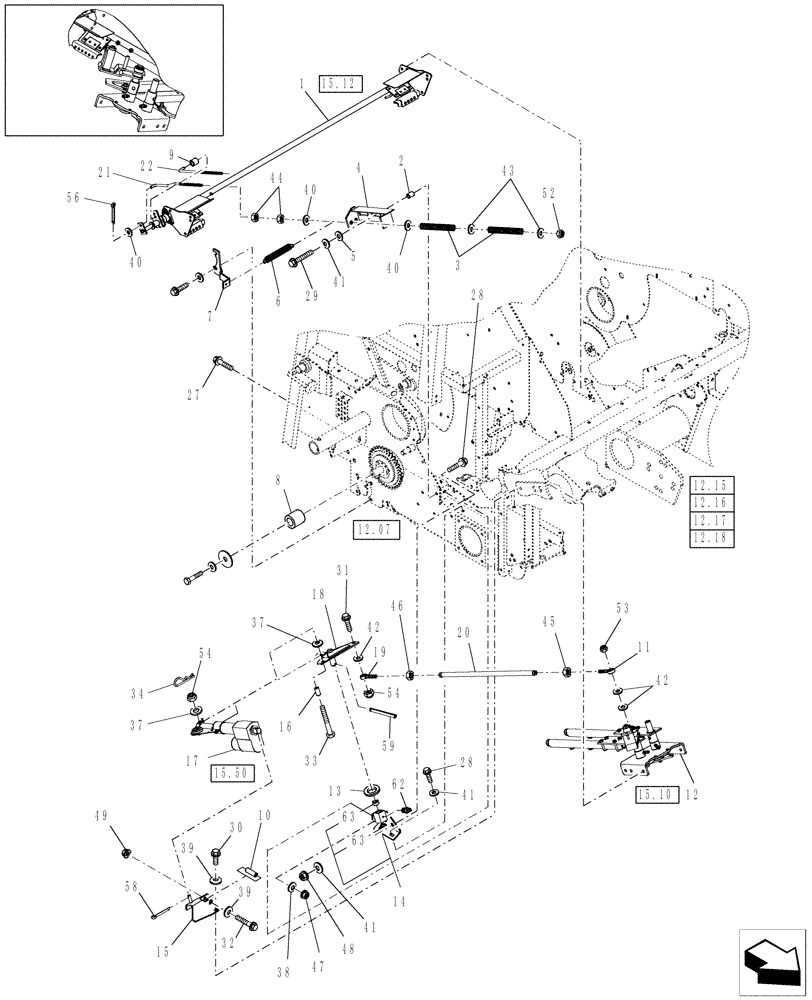

Схема запчастей Case IH RB454 - (15.01) - ELECTRIC TWINE WRAP (15) - KNOTTER /WRAPPER
27
40
14
34
54
53
41
10
33
19
18
42
42
8
21
15
7
52
11
48
13
5
22
30
4
32
38
63
37
43
39
40
12
41
28
12.15
15.12
15.50
15.10
12.07
12.18
12.17
12.16
40
6
59
2
29
49
1
56
9
39
44
47
45
17
37
62
54
16
58
28
63
31
20
46
41
3

Артикул

Название

Примечание

Количество

1

0C

ORDER COMPONENTS

Wrapper, Twine Knife

1шт.

2

9848747

SPACER

2шт.

3

87048450

SPRING

3" Lg.

2шт.

4

86636790

PLATE

1шт.

5

58225

WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk

Special, 1-1/4" OD

2шт.

7

87023416

BRACKET

1шт.

6

86559592

SPRING,Extension, 0.99" OD x 6-1/4" L

Extension

1шт.

8

86979126

SPACER,30.2mm ID x 41.53mm OD x 74mm L

Twine Wrap Only

1шт.

9

249825

SPACER

1шт.

10

86631123

SPACER,12.95mm ID x 19.05mm OD x 27mm L

1-1/16" Lg

1шт.

11

618883

BALL JOINT HEAD,1/2" - 20

End, Spherical Bearing, LH-Thread

1шт.

12

0C

ORDER COMPONENTS

Wrapper, Twine Arm

1шт.

13

672

WASHER

1шт.

14

87036800

PIVOT ASSY.

Use with Ref. 63

1шт.

15

87023415

SUPPORT

1шт.

16

86553579

GUIDE

Follower, Cam

1шт.

17

0C

ORDER COMPONENTS

Wrapper, Actuator

1шт.

18

87036798

PIVOT ASSY.

Use with Ref. 14

1шт.

19

614445

SPHERICAL BEARING,12.764 mm ID x 33.34 mm OD x 15.88 mm

End, Spherical Bearing, RH-Thread

1шт.

20

87023412

TUBE,21.30 mm OD x 460.80 mm L

1шт.

21

86636646

ROD

1шт.

22

86729078

ROD

1шт.

27

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

28

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

3шт.

29

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

30

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

3шт.

31

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

1шт.

32

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

1шт.

33

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

, Serial Range: -YBN046947

1шт.

NORTH AMERICA

1шт.

33

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

, Serial Range: -724850020

1шт.

EUROPE & R.O.W.

1шт.

33

86637938

CLEVIS PIN,1/2" x 3 1/4"

, Start Serial: YBN046948

1шт.

NORTH AMERICA

1шт.

33

86637938

CLEVIS PIN,1/2" x 3 1/4"

, Start Serial: 724850021

1шт.

EUROPE & R.O.W.

1шт.

34

270964

COTTER PIN,3/8" x 1.62" x .094", Int Hair

, Start Serial: YBN046948

1шт.

NORTH AMERICA

1шт.

34

270964

COTTER PIN,3/8" x 1.62" x .094", Int Hair

, Start Serial: 724850021

1шт.

EUROPE & R.O.W.

1шт.

37

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

38

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

39

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

40

495-21044

WASHER,3/8"

2шт.

41

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

42

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

3шт.

43

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

8шт.

44

425-106

NUT,3/8"-16, Cl 5

4шт.

45

88058

NUT

G2, LH Thread, 1/2"-20

1шт.

46

425-118

NUT,1/2"-20, G5

1шт.

47

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

5шт.

48

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

49

825-1412

NUT,M12, Cl 8

1шт.

52

231-4146

NUT,3/8"-16, GB

2шт.

53

231-4148

NUT,1/2"-13, GB

1шт.

54

832-46412

NUT,M12 x 1.75, Cl 8

2шт.

56

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

58

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

59

86977792

SLOTTED PIN,5mm OD x 40mm L, Slotted

1шт.

62

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

63

105969

BUSHING

1.189" OD x 1.001" ID x .625" Wide

2шт.

Выбрано товаров: 61
