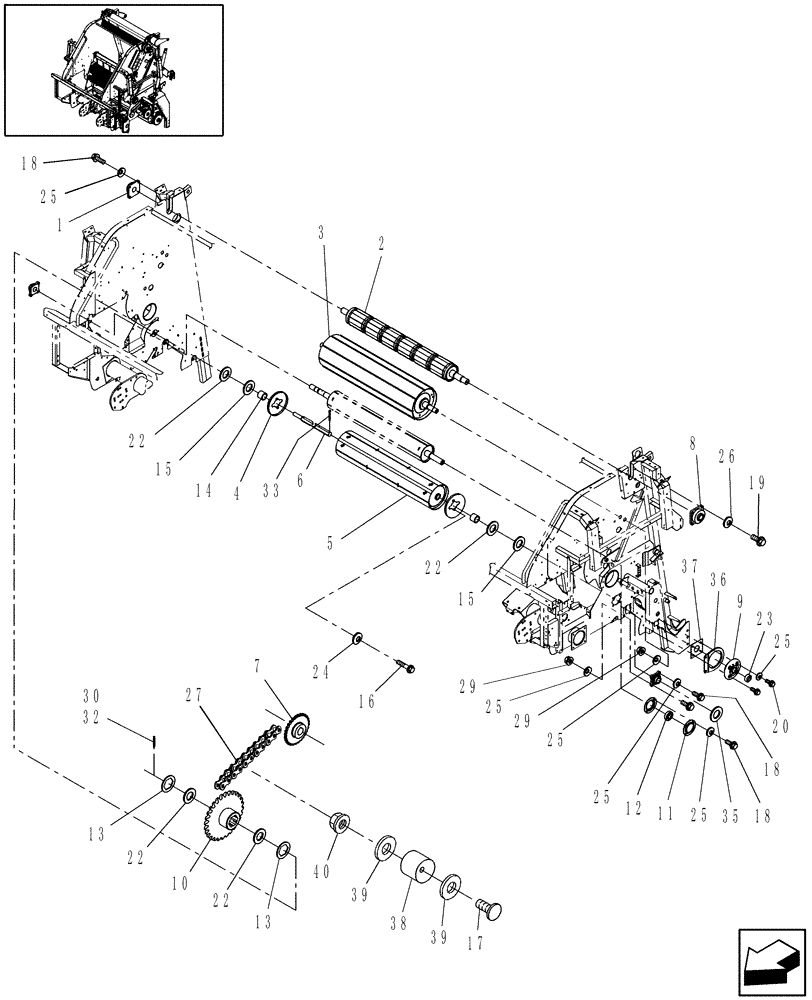

Запчасти Case IH RB454 (14.52[(2)]) - MAIN FRAME, ROLLS & RH DRIVE, STUFFER FEEDER (14) - BALE CHAMBER

1

86609558

BEARING ASSY,45mm ID

1.772" ID

1шт.

MAINTENANCE PART

1шт.

2

86635441

ROLL

Drive

1шт.

3

87660299

FEED ROLLER

Floor, Includes: Round Rods

1шт.

4

87025815

SHIELD

Trash

2шт.

NORTH AMERICA

1шт.

4

84388614

SHIELD

Trash

2шт.

EUROPE & R.O.W.

1шт.

5

87660302

ROLL

Fixed Dimple

1шт.

NORTH AMERICA

1шт.

5

84388620

ROLL

Fixed Dimple

1шт.

EUROPE & R.O.W.

1шт.

6

87056540

SHAFT

1шт.

7

87660330

SPROCKET

28T

2шт.

MAINTENANCE PART

1шт.

8

86978595

BEARING ASSY

1.969" ID

1шт.

MAINTENANCE PART

1шт.

9

87027838

BEARING ASSY

40mm ID, Round

2шт.

MAINTENANCE PART

1шт.

10

87056511

SPROCKET

28T, RC60

1шт.

MAINTENANCE PART

1шт.

11

86837676

FLANGED BEARING

4шт.

MAINTENANCE PART

1шт.

12

286909

BALL BEARING,38.11mm Hex x 84.99mm OD x 30mm W

1-1/2" Hex Bore

2шт.

MAINTENANCE PART

1шт.

13

87056525

WASHER

1шт.

14

86622263

HUB

2шт.

15

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

Plated

1шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

17

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

1шт.

18

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

20шт.

19

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

8шт.

20

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

22

87652388

WASHER,45.24mm ID x 56.36mm OD x 1.52mm Thk

4/ARшт.

23

87384472

COLLAR

2шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

28шт.

26

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

27

86621149

CHAIN,60, 57 Links x 19.05mm = 1085.85mm

1шт.

MAINTENANCE PART

1шт.

29

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

30

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

1шт.

Install Ref. 30 Inside Ref. 32

1шт.

32

412689

LOCK PIN,8mm OD x 50mm L, Slotted

1шт.

33

87400

COTTER PIN,3/16" x 2"

1шт.

35

86976003

SPACER

1шт.

36

87660305

PIVOT PLATE

2шт.

37

87660306

WEAR PLATE

4шт.

MAINTENANCE PART

1шт.

38

86514717

IDLER WHEEL

1шт.

MAINTENANCE PART

1шт.

39

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

40

100038

NUT,M12 x 1.75, Cl 8

English

1шт.
