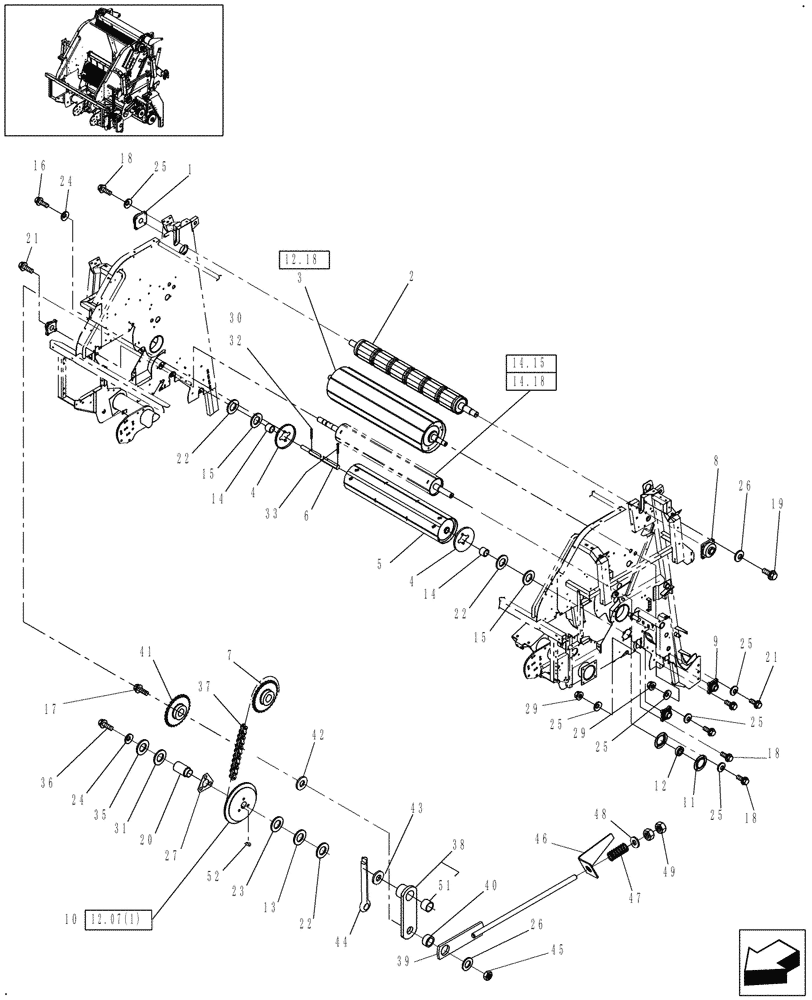

Запчасти Case IH RB454 (14.52[(1)]) - MAIN FRAME, ROLLS & RH DRIVE, ROTOR (14) - BALE CHAMBER

1

86609558

BEARING ASSY,45mm ID

1.772" ID

1шт.

MAINTENANCE PART

1шт.

2

86635441

ROLL

Drive

1шт.

3

87660299

FEED ROLLER

Floor, Includes: Round Rods

1шт.

4

87602845

SHIELD

Trash

2шт.

NORTH AMERICA

1шт.

4

84388614

SHIELD

Trash

2шт.

EUROPE & R.O.W.

1шт.

5

87660302

ROLL

Fixed Dimple

1шт.

NORTH AMERICA

1шт.

5

84388620

ROLL

Fixed Dimple

1шт.

EUROPE & R.O.W.

1шт.

6

86611130

SHAFT

1шт.

7

86610109

SPROCKET

1шт.

MAINTENANCE PART

1шт.

8

86978595

BEARING ASSY

1.969" ID

1шт.

MAINTENANCE PART

1шт.

9

86590753

BEARING ASSY

1.575" ID

2шт.

MAINTENANCE PART

1шт.

10

9621054

CLUTCH ASSEMBLY

Slip

1шт.

MAINTENANCE PART

1шт.

11

86837676

FLANGED BEARING

4шт.

MAINTENANCE PART

1шт.

12

286909

BALL BEARING,38.11mm Hex x 84.99mm OD x 30mm W

1-1/2" Hex Bore

2шт.

MAINTENANCE PART

1шт.

13

633743

SPACER

1шт.

14

86622263

HUB

2шт.

15

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

1шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

17

9804273

BOLT,Hex, M16 x 60mm, Cl 8.8

1шт.

18

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

20шт.

19

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

8шт.

20

86979126

SPACER,30.2mm ID x 41.53mm OD x 74mm L

1шт.

21

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

10шт.

22

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

.060" Thk

3шт.

23

86627126

WASHER,29.18mm ID x 51.56mm OD x 2.03mm Thk

1шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

28шт.

26

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

27

80707372

BRACKET

1шт.

29

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

30

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

1шт.

Install Ref. 30 Inside Ref. 32

1шт.

31

27696

WASHER,1.281" ID x 2" OD x .060" Thk

3/ARшт.

32

412689

LOCK PIN,8mm OD x 50mm L, Slotted

1шт.

33

87400

COTTER PIN,3/16" x 2"

1шт.

35

86624647

WASHER,10.8mm ID x 57mm OD x 6.1mm Thk

1шт.

36

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

37

86621149

CHAIN,60, 57 Links x 19.05mm = 1085.85mm

RC606, 57 Total Links, Includes: Ref. 50 & 51

1шт.

MAINTENANCE PART

1шт.

38

86615181

ARM

Includes: Ref. 51

1шт.

39

86615228

STRAP

1шт.

40

590224

SPACER,41/64” ID x .875” OD x 13/32” Wide

1шт.

41

624618

DRIVEN SPROCKET

1шт.

MAINTENANCE PART

1шт.

42

27367

WASHER,16.67mm ID x 31.75mm OD x 3.43mm Thk

1шт.

43

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

44

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

45

100020

NUT,M16 x 2.0, Cl 8

1шт.

46

86643094

INDICATOR

1шт.

47

22

SPRING

1шт.

48

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

49

100016

NUT,M10 x 1.5, Cl 8

2шт.

50

165590

CONNECTING LINK

1шт.

Not Illustrated

1шт.

MAINTENANCE PART

1шт.

51

399994

BUSHING,20mm ID x 23mm OD x 25mm L

1шт.

52

47471

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

53

86595275

OFFSET LINK

1шт.

Not Illustrated

1шт.

MAINTENANCE PART

1шт.
