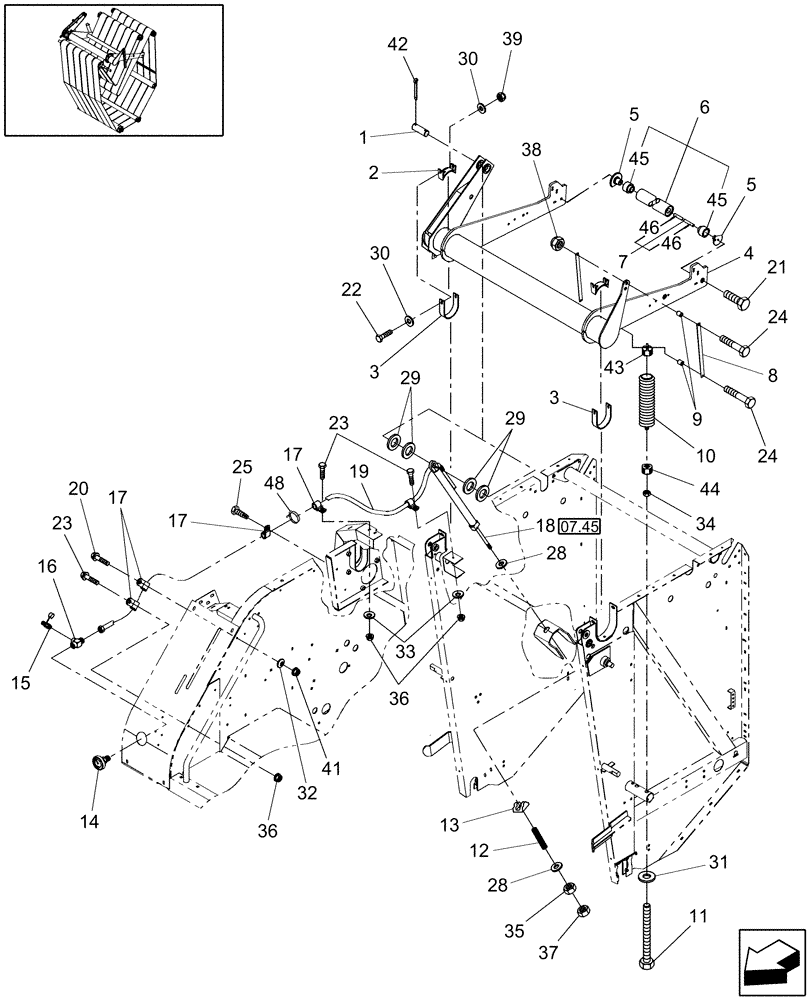

Запчасти Case IH RB454 (14.30) - BELT TENSION (14) - BALE CHAMBER

1

86637228

PIN,38.1mm OD x 91.5mm L

1шт.

2

86636552

BEARING CAP

2шт.

3

9617265

BAND

2шт.

4

87655506

LIFT ARM

Take-Up

1шт.

5

86521602

SUPPORT

4шт.

6

9842288

ROLLER,88.9mm OD x 1142mm L

Serpentine

2шт.

7

9823372

SHAFT,1135mm L

2шт.

8

86636983

LINK,326mm L

2шт.

9

86636659

SPACER,10.28mm ID x 15.85mm OD x 21.84mm L

.86", Heat Treated, Plated

2шт.

10

621339

SPRING

Use W/ Ref. 43 & 44

1шт.

11

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

1шт.

12

9846489

SPRING,Compression, 1.81" OD x 9.44" L

1шт.

13

226131

PIVOT

1шт.

14

857072

GAUGE

3,000 PSI, Bale Density

1шт.

15

9845229

COUPLING

Male

1шт.

Female Pipe Coupler is 9845231. Refer to Repair Manual.

1шт.

16

86627339

HYD CONNECTOR

-04, Female, NPTF

1шт.

17

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

5шт.

18

0C

ORDER COMPONENTS

Bale Tension Hydraulics

1шт.

19

86621388

FLEXIBLE HOSE,6.35mm ID x 3251.2mm L, SAE 100R17

1шт.

20

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

21

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

Cap, HH, CL 8.8 P M12 x 30, 6.5 Head Height

4шт.

22

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

23

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

24

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

25

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

1шт.

28

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

Hardened, .164" Thk

2шт.

29

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

1-17/32" ID x 2-3/8" OD

4шт.

30

495-11053

WASHER,1/2", SAE

4шт.

31

495-21081

WASHER,3/4"

1шт.

32

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

33

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

34

280954

NUT,3/4"-10, G5

1шт.

35

9849647

NUT,7/8"-9, G5

1шт.

36

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

37

87314

JAM NUT,Jam, 7/8"-9, G2

1шт.

38

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

39

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

40

52828

WASHER

Special, 0.187" Thk

2шт.

41

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

42

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

43

854482

SPRING NUT

Spring, Use W/ Ref. 10

1шт.

44

143672

SPRING NUT

Spring, Use W/ Ref. 10

1шт.

45

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

4шт.

MAINTENANCE PART

1шт.

46

838-5526

LOCK PIN,M5 x 26, Slotted

4шт.

48

249730

SECURING STRAP,8" L

1шт.
