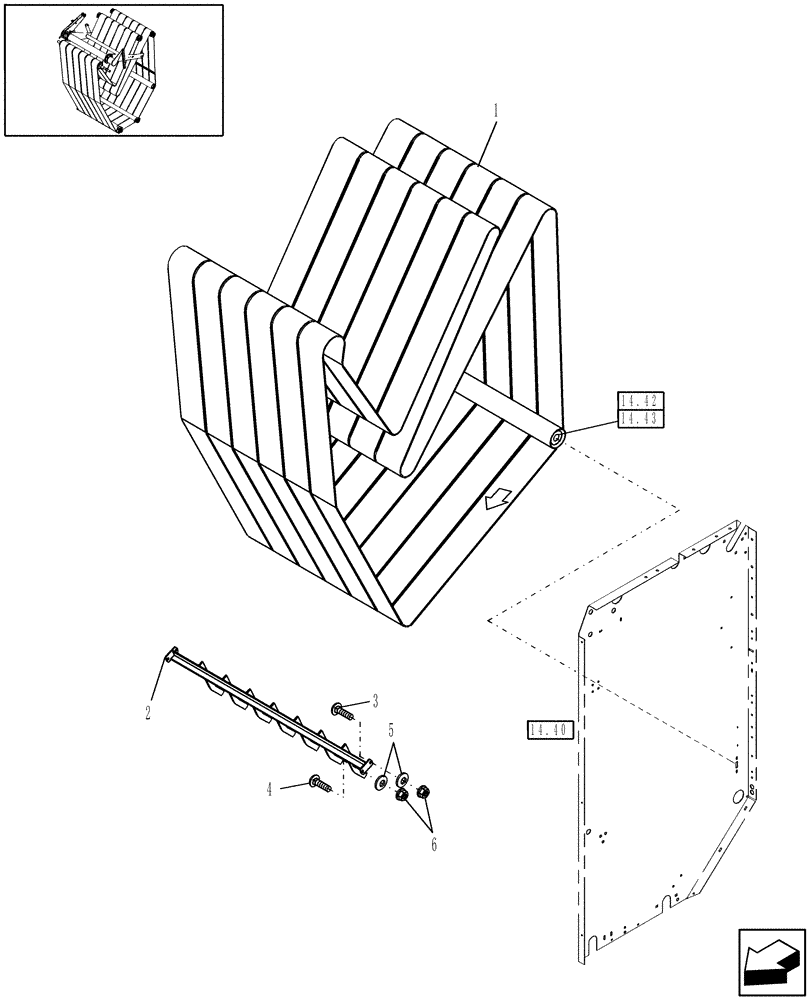

Запчасти Case IH RB454 (14.09) - ENDLESS CHEVRON BELT (14) - BALE CHAMBER

1

84141597

BELT,177.80 mm W x 8712.20 mm L

Endless, Chevron

6шт.

MAINTENANCE PART

1шт.

2

86637506

GUIDE

Belt, Optional

1шт.

3

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

4

811-10060

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 60mm, Cl 8.8

2шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

6

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.
