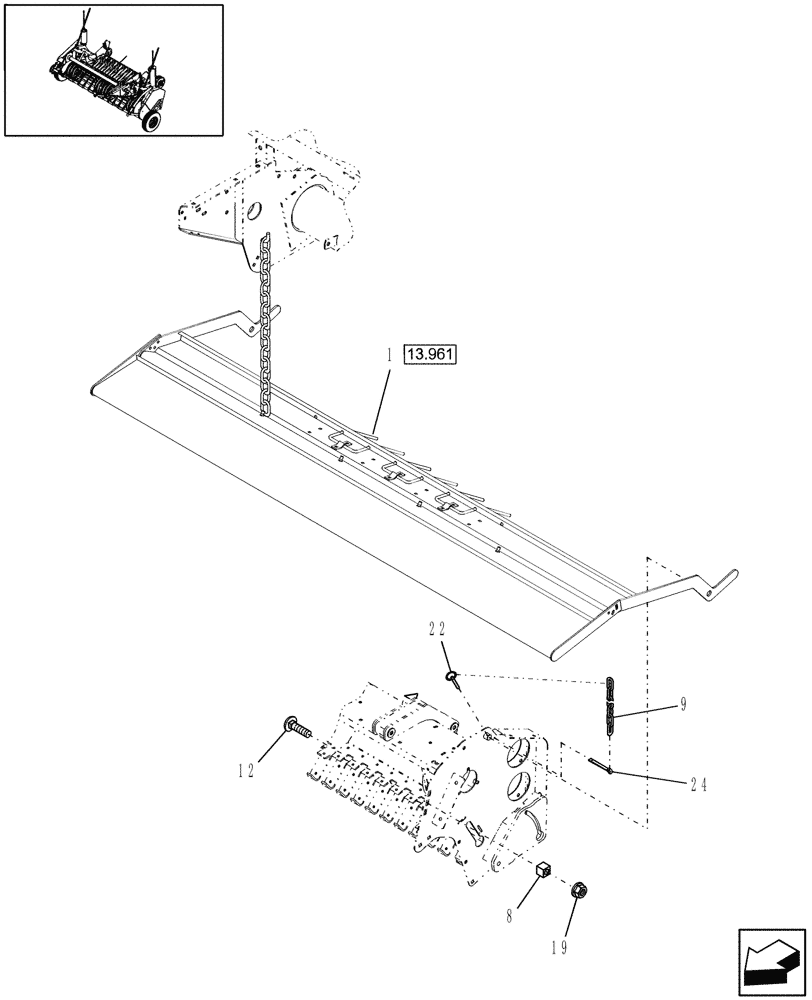

Запчасти Case IH RB454 (13.960) - 2M WIDE PICKUP, WINDGUARD PLATE, MOUNTING, EUROPE & R.O.W. (13) - FEEDER

1

0C

ORDER COMPONENTS

Windguard, Plate

1шт.

8

44612

SPACER

Square

2шт.

9

197559

CHAIN,9" L

#16, 9" L

2шт.

12

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

2шт.

19

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

22

86508947

LINCH PIN,18.8mm OD

Klik

2шт.

24

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.
