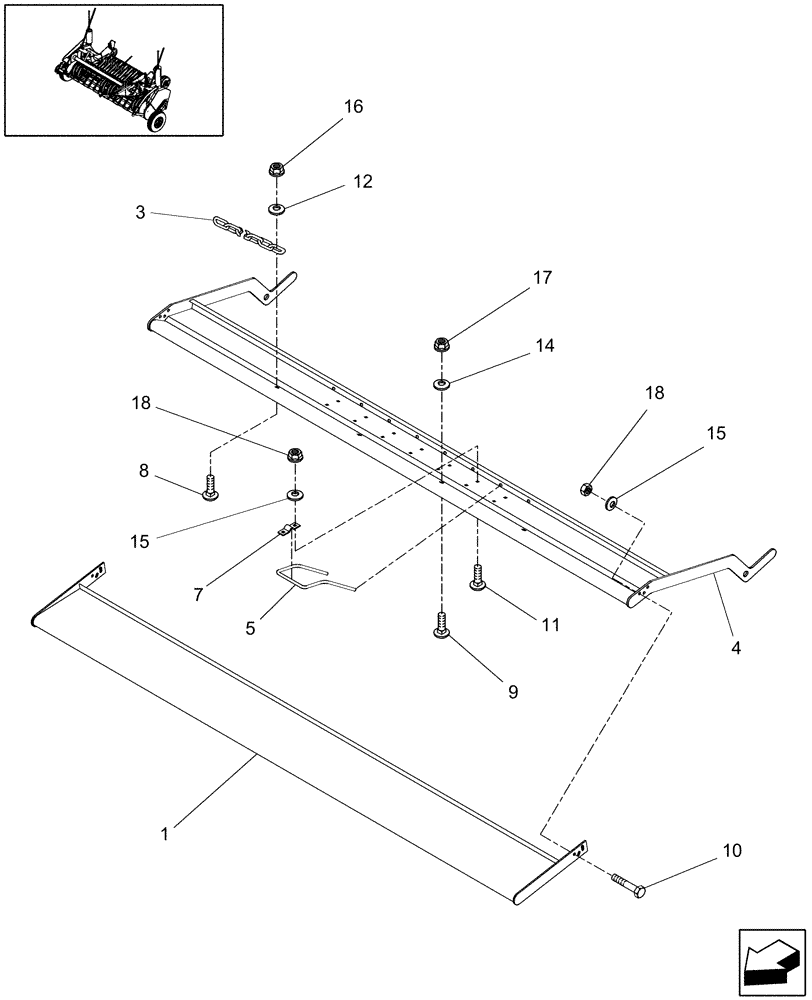

Запчасти Case IH RB454 (13.938) - 1.8M WIDE PICKUP, WINDGUARD PLATE, EUROPE & R.O.W. (13) - FEEDER

1

87704442

PLATE

Windguard

1шт.

3

87027237

CHAIN,18 Links x 37.2mm = 670mm L

2шт.

4

87704734

WINDGUARD

1шт.

5

87040022

FINGER

Center

3шт.

7

86637856

PLATE

Retaining

3шт.

8

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

6шт.

9

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

11

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

6шт.

12

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

16

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

17

100016

NUT,M10 x 1.5, Cl 8

2шт.

18

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

16шт.
