Запчасти Case IH RB454 (13.430[2]) - 2M WIDE PICKUP W/ ROTOR & CLUTCH, EUROPE & R.O.W., P.I.N. Y9N043085 & AFTER (13) - FEEDER

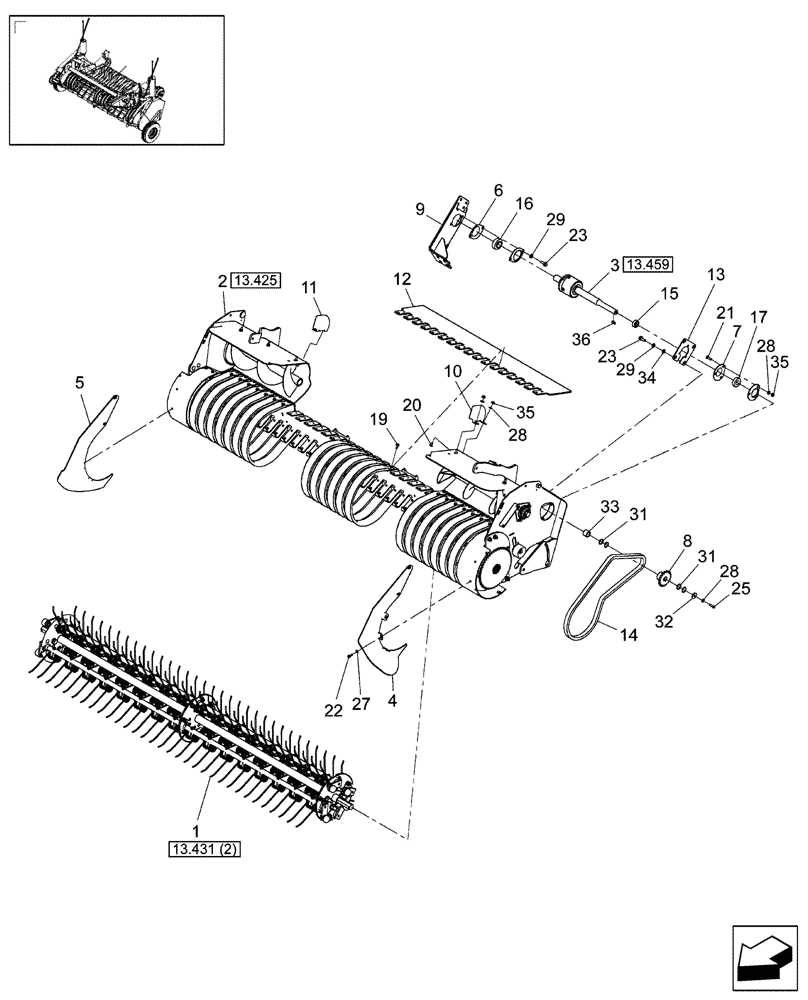

Схема запчастей Case IH RB454 - (13.430[2]) - 2M WIDE PICKUP W/ ROTOR & CLUTCH, EUROPE & R.O.W., P.I.N. Y9N043085 & AFTER (13) - FEEDER
13.459
10
29
22
11
33
13
23
1
6
28
34
27
2
31
7
8
12
35
16
20
28
35
36
29
32
3
19
28
14
4
31
15
5
23
25
9
17
21
13.431 (2)
13.425

Артикул

Название

Примечание

Количество

1

0C

ORDER COMPONENTS

Reel

1шт.

87654407

1шт.

2

0C

ORDER COMPONENTS

2M Wide Pickup, Rotor

1шт.

87653311

1шт.

3

0C

ORDER COMPONENTS

2M Overrun Clutch

1шт.

87654403

1шт.

4

87053734

GUARD

LH

1шт.

5

84324676

GUARD

RH

1шт.

6

87106572

FLANGE

2шт.

MAINTENANCE PART

1шт.

7

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

2шт.

MAINTENANCE PART

1шт.

8

87725037

SPROCKET

17T, RC50

1шт.

MAINTENANCE PART

1шт.

9

84194097

LIFT ARM

1шт.

10

87654836

SHIELD

LH Upper Auger

1шт.

11

87654801

SHIELD

RH Upper Auger

1шт.

12

87050285

FLOOR,260mm W x 1150mm L, Polyurethane

1шт.

Install Between Unattached Pickup Guards & Pickup Frame with Ref. 19.

1шт.

MAINTENANCE PART

1шт.

13

87654729

PLATE

1шт.

14

86552479

CHAIN,RC50, 100 Links x 15.88mm = 1587.5mm

1шт.

MAINTENANCE PART

1шт.

15

38260

COLLAR

1шт.

16

84484181

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

1шт.

16

84484181GV

BEARING ASSY

Value, Ball Bearing

1шт.

MAINTENANCE PART

1шт.

17

574844

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

1шт.

MAINTENANCE PART

1шт.

18

131405

SHIM

.025" Thick

4шт.

19

87034817

SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"

34шт.

MAINTENANCE PART

1шт.

20

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

21

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

22

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

6шт.

23

9804262

BOLT,M10 x 39.2mm, Cl 8.8

6шт.

24

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

25

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

26

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.

27

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

28

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

29

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

30

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

31

86611401

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

4шт.

32

87654824

WASHER

1шт.

33

87654833

SPACER

1шт.

34

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

35

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

36

80768

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

Выбрано товаров: 49
