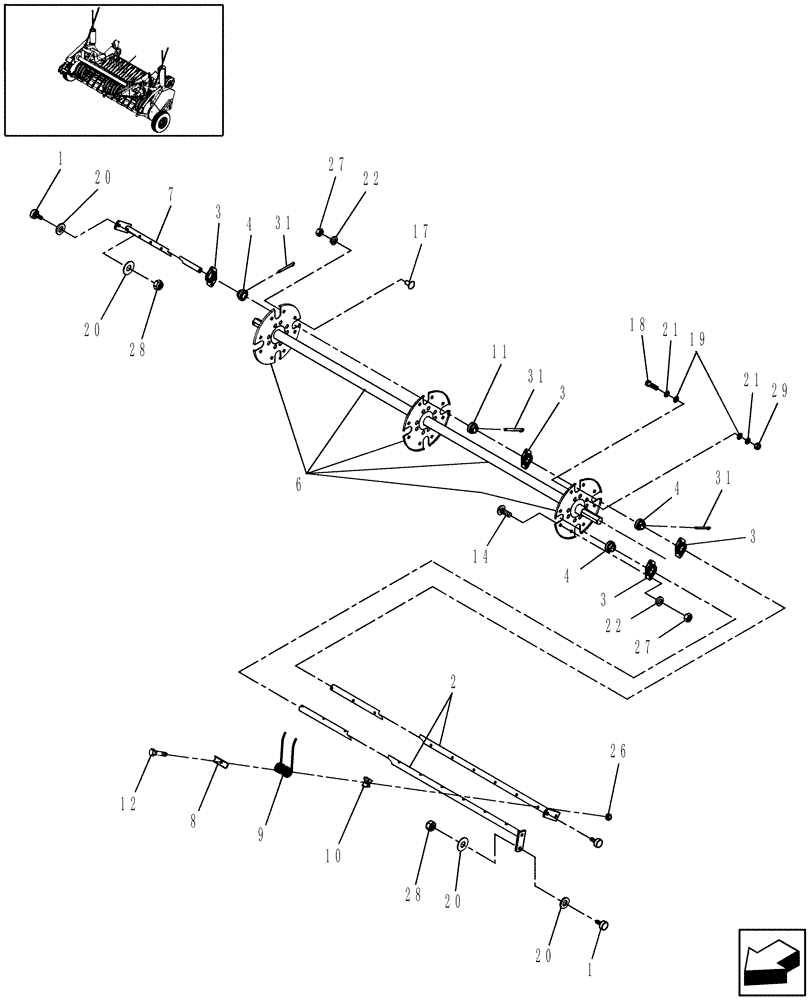

Запчасти Case IH RB454 (13.398) - 1.8M WIDE PICKUP W/ ROTOR, REEL, EUROPE & R.O.W. (13) - FEEDER

1

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

Cam Follower

8шт.

MAINTENANCE PART

1шт.

2

87732735

ARM

LH

4шт.

MAINTENANCE PART

1шт.

3

54695

BEARING HOUSING

12шт.

MAINTENANCE PART

1шт.

4

86641856

BEARING,27.1 mm ID x 47 mm OD x 25.4 mm

8шт.

MAINTENANCE PART

1шт.

6

87732304

BAR

1шт.

7

87732736

ARM

RH

4шт.

MAINTENANCE PART

1шт.

8

87643386

BRACKET

56шт.

MAINTENANCE PART

1шт.

9

87394242

TORSION SPRING,Coiled, 2 Prong, 186.5mm L

56шт.

MAINTENANCE PART

1шт.

10

86627654

TINE BAR

56шт.

MAINTENANCE PART

1шт.

11

87056792

BEARING,27.3mm ID x 47.09mm OD x 12.83mm W

4шт.

MAINTENANCE PART

1шт.

12

87642989

BOLT,Tine, 5/16" - 18 x 2"

Tine, 5/16" - 18 x 2"

56шт.

MAINTENANCE PART

1шт.

14

9849938

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 7/8", Gr 5, Full Thd

8шт.

17

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

16шт.

18

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

4шт.

19

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4/ARшт.

20

87642988

WASHER,13.08mm ID x 31.8mm OD x 1.5mm Thk

16шт.

MAINTENANCE PART

1шт.

21

87642936

WASHER,16.8mm ID x 27.7mm OD x 1.7mm Thk

8/ARшт.

22

80680

LOCK WASHER,3/8 0.381 CST ZND

24шт.

24

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

26

86629544

NUT,5/16” – 18, GR B

56шт.

MAINTENANCE PART

1шт.

27

9637692

NUT,3/8"-16, GB

24шт.

28

88130

NUT,1/2"-20, GC

8шт.

MAINTENANCE PART

1шт.

29

100020

NUT,M16 x 2.0, Cl 8

4шт.

31

136521

COTTER PIN,5.7mm OD x 44.45mm L

12шт.

MAINTENANCE PART

1шт.
